Sku: FWS-2275E3-A10-00
Tipo de Produto:
PCs de Rede Industriais
Fabricante:
AAEON
FWS-2275

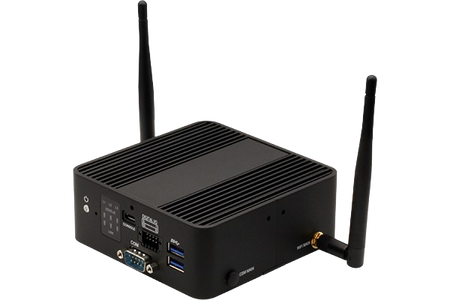

Network Box PC industrial com CPU Intel® Celeron® N3350 e 3 portas Giga LAN
- Desktop Network Appliance
- Intel® Celeron® Processor N3350 SoC
- Onboard eMMC 16GB (Optional up to 32GB)
- Onboard LPDDR4, 2GB
- Intel® i211 GbE x 3
- 1 x Mini-Card Full Size Slot with SIM Socket
- Onboard WiFi 802.11 b/g/n 2x2, BT4.1
- HDMI Connector (Optional)
- TPM Supported (Optional)
Caraterísticas
Especificações
Downloads
Incluído
Acessórios
Caraterísticas
The AAEON FWS-2275 network appliance is a compact system built to power a range of applications for industrial networks. FWS-2275 is designed for SD-WAN networks, and can be deployed as an Edge Computing or Industrial IoT Gateway (IIoT). The Intel® Celeron® N3350 processor (formerly Apollo Lake) features built-in Intel® AES-NI, providing secure data encryption with faster processing than standard AES. FWS-2275 can also handle network applications such as UTM, firewall, and more.
Built for deployment in industrial environments, the FWS-2275 features an aluminum chassis, wide operating temperature range of 0°C to 50°C, and wide voltage input (9~24V). The FWS-2275 is built to integrate easily into industrial networks and includes on-board Wi-Fi, USB mini Console, and SIM card slot, as well as Digital IO and COM ports. AAEON manufacturer and OEM/ODM services also provide help with configuration or customization for systems integrators and independent developers.
Especificações
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Celeron® Processor N3350 SoC |
| CHIPSET | SoC |
| SYSTEM MEMORY | Onboard LPDDR4, 2GB |
| NETWORK | |
| ETHERNET | Intel® i211 GbE x 3 |
| BYPASS | — |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD graphics integrated |
| CONNECTOR | (HDMI Connector x1 Optional ) |
| STORAGE | |
| HDD | — |
| CF/CFAST/MSATA | Onboard eMMC 16GB (Optional up to 32GB) SATA III Port x 1 for SATA DOM Micro SD card Reader x1 |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-Card Full Size Slot with SIM Socket x 1 (USB 2.0; PCIe co-lay with LAN 3) |
| KB MOUSE | — |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | (TPM2.0 9665 Optional) |
| GPIO | 4 bits input, 4bits output |
| FAN | — |
| MTBF (HOURS) | 550,521 Hours |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 9~24 V DC Power |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 4.53" x 4.53" x 1.73" (115mm x 115mm x 44mm) |
| I/O | |

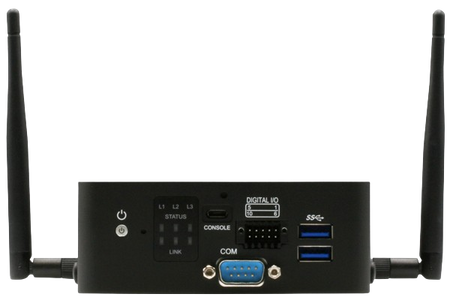

| FRONT PANEL | USB 3.2 Gen 1 Ports x 2 LED’s (3 x TOP Row, 2 x Bottom Row)x 6 Power Button with LED integrated x 1 Micro-USB Console Port x 1 RS-232/422/485 x 1 GPIO 8 bits, 4-bits input, 4-bits output Reset button x 1 |

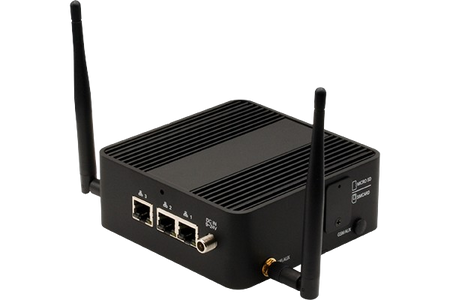

| REAR PANEL | 1GbE RJ45 Ports x 3 Power Input connector, lockable x 1 |
Ordering Information [FWS-2275]
| PART NUMBER | FWS-2275E3-A10-00 |
|---|---|
| CPU | Intel® Celeron® N3350 |
| MEMORY | Onboard LPDDR4 2GB memory |
| MINI-CARD SLOT | Mini-Card Full Size Slot with SIM Socket x 1 (USB 2.0) |
| STORAGE | 16GB eMMC SATA III Port x 1 for SATA DOM Micro SD card Reader x 1 |
| DISPLAY | — |
| LAN | Intel® i211 x 3 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | Micro USB console x 1 |
| BYPASS | — |
| TPM | — |
| FAN | — |
| MOUNTING | Desktop |
| POWER | DC 12V,40W Power Adapter x1 |
| NOTE | * Please contact AAEON for other optional specifications. |
Downloads
Incluído
- Antenna x 2
- Power Adapter x 1
- VESA mount x 1
- FWS-2275
Acessórios
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/YP12 |
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/YP12 |
| 170203180B | Power Cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12 |
| 170203180E | Power Cord, 3P-250V/10A, 180D, 1.8M, PSE, YP12/YC-12 |
