• Intel® Core™ 8 Geração
  • DDR4 SODIMM até 64GB
  • Duplo display: 2x HDMI
  • Expansão PCIe x4 + PCI x1
  • 10~35 VDC
com IVA
1,188.18€

sem IVA
966.00€
Sku: BOXER-6839-CFL-A1-1010
Tipo de Produto: PCs com expansão PCIe / PCI
Fabricante: AAEON

BOXER-6839-CFL-A1-1010

1 PCIE x4 / 1 PCIE x1 / 2 Full-size Minicard

BOXER-6839-CFL-A2-1010

1 PCIE x4 / 1 PCI x1 / 2 Full-size Minicard

BOXER-6839-CFL-A3-1010

2 PCI x1 / 2 Full-size Minicard

Fanless Embedded Box PC para processadores Intel® de 8/ 9 Geração

  • High Computing Power
  • Intel Coffee Lake-S LGA 1151 Desktop Processor
  • Support DDR4 ECC or Non-ECC SODIMM, Up to 64GB
  • Support HDMI x 2 Double Display
  • Support USB 3.2 Gen 1 x 8
  • PCIE [x4] x 1 + PCIE [x1] x 1 Expansion

Caraterísticas

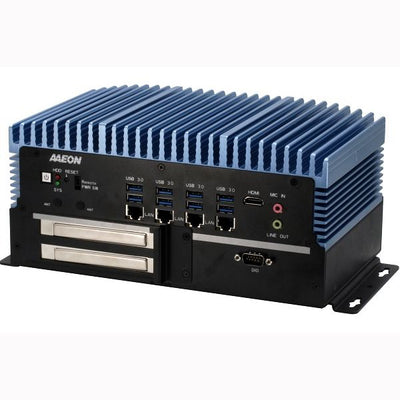

The BOXER-6839-CFL combines the power of 8th/9th Generation Intel® Core™ and Xeon® processors (formerly Coffee Lake) with expandability and a broad I/O layout, allowing it to power industrial applications and easily integrate with existing deployments.

The BOXER-6839-CFL supports 8th/9th Generation Intel® Core™ i3/i5/i7/i9 and Xeon® E processors (up to 71W TDP), delivering server grade performance. Combined with up to 64GB of memory, the BOXER-6839-CFL brings the processing power and speed needed to power a range of industrial and AI applications.

The BOXER-6839-CFL offers rugged construction, with fanless design capable of reliable operation in temperatures from -20°C up to 55°C. (CPU < 35W TDP).

The BOXER-6839-CFL offers expandability with three PCIe/PCI configurations to allow developers and users to quickly add on functionality with AI accelerators or frame grabber cards, AI modules or machine controller interfaces. The system also comes with flexibility built-in with a broad I/O loadout to connect with just about anything, featuring eight USB3.2 Gen 1 ports, six COM ports, 8-bit DIO and four LAN ports including one Intel i219 with support for vPro.

Especificações
SYSTEM
CPU Intel® Xeon® E-2124G
Intel® i9-9900T
Intel® i7-9700TE
Intel® i7-8700T
Intel® i5-8500T
Intel® i3-8100T
Pentium® G5400T
Celeron® G4900T
CHIPSET C246
SYSTEM MEMORY DDR4-2666 SO-DIMM slot x 2
Up to 64GB, ECC or Non-ECC Support
DISPLAY INTERFACE HDMI x 2
STORAGE DEVICE 2.5” SATA HDD/SSD Bay x 2
ETHERNET RJ-45 x 4 for GbE LAN (i211-AT x 3, i219-LM x 1)
I/O HDMI x 2
RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1)
USB 3.2 Gen 1 x 8
DB-9 x 6 for RS-232/422/485
Audio x 1 (MIC-in, Line-out)
DB-15 for DIO 8 bit x 1
3 pin 10~35V Power Input x 1
Power Button x 1
Remote Power switch x 1
Reset Button x 1
EXPANSION Full-size Mini card x 1 (PCIe)
Full-size Mini card x 1 ((PCIe/mSATA switch by BIOS, Default: mSATA)
SIM slot x 1
PCIE slot :
Riser card type 1: PCIe[x4] slot x 1 & PCIe[x1] x 1 (A1)
Riser card type 2: PCIe[x4] slot x 1 & PCI x 1 (A2)
Riser card type 3: PCI x 2 (A3)
Max. size of expansion card 150 x 105 x 40 mm
INDICATOR HDD LED x 1
System LED x 1
OS SUPPORT Windows® 10 64-bit, Linux Ubuntu 20.04
POWER SUPPLY
POWER REQUIREMENT 3-pin Phoenix DC Input 10~35V
MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 264mm x 156mm x 125mm
GROSS WEIGHT 13.2 lb (6.0 kg)
NET WEIGHT 9.9 lb (4.5 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~131°F (-20°C ~ 55°C) with 0.5 m/s airflow (with TDP ≦ 35W CPU)
-4°F~113°F (-20°C ~45°C) with 0.5 m/s airflow (with TDP > 35W CPU)
STORAGE TEMPERATURE -49°F ~ 176°F (-45°C ~ 80°C)
STORAGE HUMIDITY 5~95% @ 40°C, non-condensing
ANTI-VIBRATION 5 Grms/ 5 ~ 500Hz/ operation –SSD
ANTI-SHOCK SSD: 50G @ wallmount, Half-sine, 11ms
CERTIFICATION CE/FCC class A



Ordering Information [BOXER-6839-CFL]

PART NUMBER BOXER-6839-CFL-A1-1010 BOXER-6839-CFL-A2-1010 BOXER-6839-CFL-A3-1010
CPU
PCH C246 C246 C246
LAN 4 4 4
USB USB 3.2 Gen1 x 8 USB 3.2 Gen1 x 8 USB 3.2 Gen1 x 8
RS- 232/422/485 6 6 6
DIGITAL I/O 8 bit 8 bit 8 bit
AUDIO Mic-in x 1
Line-out x 1
Mic-in x 1
Line-out x 1
Mic-in x 1
Line-out x 1
STORAGE 2.5" SATA Drive Bay x 2 2.5" SATA Drive Bay x 2 2.5" SATA Drive Bay x 2
DISPLAY HDMI x 2 HDMI x 2 HDMI x 2
EXPANSION PCIE [x4] x 1 + PCIE[x1] x 1
Full-size Minicard x 2
PCIE [x4] x 1 + PCI x 1
Full-size Minicard x 2
PCI x 2
Full-size Minicard x 2
MOUNTING Wallmount Wallmount Wallmount
POWER DC-in 10-35V x 1 for 3-pin Terminal Block DC-in 10-35V x 1 for 3-pin Terminal Block DC-in 10-35V x 1 for 3-pin Terminal Block
OPERATION TEMP -4°F ~131°F (-20°C ~ 55°C), IEC68-2 with 0.5 m/s AirFlow
(with TDP ≤ 35W CPU)
-4°F ~113°F (-20°C ~ 45°C), IEC68-2 with 0.5 m/s
AirFlow (with TDP 35W > CPU)
-4°F ~131°F (-20°C ~ 55°C), IEC68-2 with 0.5 m/s AirFlow
(with TDP ≤ 35W CPU)
-4°F ~113°F (-20°C ~ 45°C), IEC68-2 with 0.5 m/s
AirFlow (with TDP 35W > CPU)
-4°F ~131°F (-20°C ~ 55°C), IEC68-2 with 0.5 m/s AirFlow
(with TDP ≤ 35W CPU)
-4°F ~113°F (-20°C ~ 45°C), IEC68-2 with 0.5 m/s
AirFlow (with TDP 35W > CPU)
Incluído
  • Wallmount Bracket x 2
  • Screw Package x 1
  • Thermal Pad x 3
  • Phoenix Power Connector x 1
  • BOXER-6839-CFL
Acessórios
125590120B 120W Power Adapter
1255302300 230W Power Adapter
1702031802 Power Cord (US Type)
1702031803 Power Cord (Europe Type)
170203180E Power Cord (Japan Type)
9741324A00 WiFi/Bluetooth Module & Antenna
9741EG25G0 4G Module & Antenna (For Global)
