Sku: MISCOM6208
Tipo de Produto: Switches Gerenciáveis
Fabricante: MAIWE

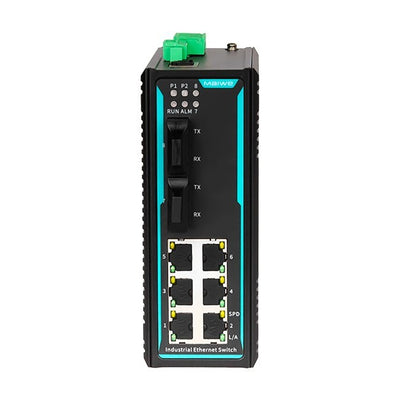

MISCOM6208

8-port 10/100M Layer 2 Din-Rail Managed Industrial Ethernet Switch

  • Support MW-Ring
  • Support Static Multicast/IGMP Snooping
  • Support Broadcast Storm Suppression/Rate Limit
  • Support Power-down Status Relay Alarm Output
  • Support IEEE802.1p/IEEE 802.1Q VLAN/QoS/Tos DiffServe/Port Link Aggregation/Port Mirroring

Caraterísticas

MISCOM6208 managed din-rail industrial Ethernet switch is designed and developed for industrial high-speed communication network applications. It provides a high-end industrial Ethernet communication solution for flexible industrial applications, making industrial communications smoother, more reliable and faster, meeting the needs of customers for innovative value-added applications. MISCOM6208 can be operated at wide temperatures range from -40 to 85°C, and its IP40 casing house satisfiesany harsh industrial environment.

Features and Benefits

-8x10/100Base ports (port configuration see Ordering Information)

-Support MW-Ring with the recovery time<20ms

-Support real-time monitoring of broadcast storm control/rate limit

-Support static multicast/dynamic IGMP snooping/multicast traffic filtering

-Support port VLAN/IEEE 802.1q VLAN/QoS/port aggregation/port mirroring/IEEE802.1p/ToS DiffServe

-Support syslog and flow statistics

-Support industrial grade dual power input backup

-Support power-down status relay alarm output

-Industrial grade wide temperature/fanless design

Especificações

Software performance

Redundancy protocol

Support MW-Ring

Support STP/RSTP

Multicast routing

Support IGMP snooping/ IGMP v1/v2

Support GMRP
Support static multicast

Management and maintenance

Support Console and Web management methods
Support SNMPv1/v2c/V3
Support unified PC software management

Technical specifications

Ethernet Standard

IEEE802.3-10BaseT

IEEE802.3u-100BaseTX/100Base-FX

IEEE802.3x-Flow Control

IEEE802.3z-1000BaseLX
IEEE 802.1s-MSTP

IEEE802.1D-Spanning Tree Protocol

IEEE802.1w-Rapid Spanning Tree Protocol

IEEE802.1Q -VLAN Tagging

IEEE802.1p -Class of Service
IEEE802.1X-Port Based Network Access Control

Switch properties

Priority queue

4

VLAN ID

1-4096

IGMP Groups

256

MAC table

8k

Switch Bandwidth

7.6Gbps

Switch Latency

<5μs

Interface

10/100Base port

Port numbers:8

Connector: 8 fixed F(x)(Single/multi-mode or SC/FC/ST port available) or RJ45

Baud rate: 100Base-FX(fiber port), 10/100M auto-negotiation

Console port

RS232/RJ45

Terminal block for power input

5.08mm terminal block

Terminal block for relay alarm

5.08mm terminal block,1A@24VDC

Communication distance

Twisted-pair

100m(CAT5/CAT5e cable)

Multi-mode fiber

10/100Base multi-mode: 1310nm 2km

Single mode fiber

10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km

LED indicator lights

Front panel LED lights

Port light: LINK/ACT; SPEED

Running light: RUN

Power LED: PWR1/PWR2

Power requirements

Power input

DC9-60V

AD220V(AC85-284V or DC110-370V)

Full-load consumption

MISCOM6208/6208-2F<5W@24VMax

MISCOM6208-4F:<6W@24VMax

Overload protection

support

Inversed protection

support

Redundancy protection

support

Working environment

Operating temperature

-40°C~85°C

Storage temperature

-40°C~85°C

Ambient humidity

5%~95%( non-condensing)

Physical characteristics

Shell

IP40 protection, aluminum alloy shell

Installation

35mm din rail-mounted installation

Dimension

54mmx140mmx110mm

Industry standard

EMC

EN61000-4-2(ESD), Level 4

EN61000-4-3(RS), Level 4

EN61000-4-4(EFT), Level 4

EN61000-4-5(Surge), Level 4

EN61000-4-6(CS), Level 4

EN61000-4-8, Level 5

Impact

IEC60068–2-27

Falling

IEC60068-2-32

Shock

IEC60068-2-6

Warranty

Warranty period

5 Years

Certification

CE/FCC/RoHS

Order Information

Ordering Information

MISCOM6208

8x10/100M RJ45 ports, redundant DC9~60V power supply

MISCOM6208-AD220

8x10/100M RJ45 ports,AC85-264V/ DC110~370V isolated power supply

MISCOM6208-2M-SC02

2x100 fiber ports+6x10/100M RJ45 ports, redundant DC9~60V power supply,Multi-mode,SC connector,2KM

MISCOM6208-2M-ST02

2x100 fiber ports+6x10/100M RJ45 ports, redundant DC9~60Vpower supply,Multi-mode,ST connector,2KM

MISCOM6208-2M-FC02

2x100 fiber ports+6x10/100M RJ45 ports, redundant DC9~60V power supply,Multi-mode,FC connector,2KM

MISCOM6208-2S-SC20

2x100 fiber ports+6x10/100M RJ45 ports, redundant DC9~60V power supply,Single-mode,SC connector,20KM

MISCOM6208-2S-ST20

2x100 fiber ports+6x10/100M RJ45 ports, redundant DC9~60V power supply,Single-mode,ST connector,20KM

MISCOM6208-2S-FC20

2x100 fiber ports+6x10/100M RJ45 ports, redundantDC9~60V power supply,Single-mode,FC connector,20KM

MISCOM6208-4M-SC02

4x100 fiber ports+4x10/100M RJ45 ports, redundant DC9~60V power supply,Multi-mode,SC connector,2KM

MISCOM6208-4M-ST02

4x100 fiber ports+4x10/100M RJ45 ports, redundant DC9~60Vpower supply,Multi-mode,ST connector,2KM

MISCOM6208-4M-FC02

4x100 fiber ports+4x10/100M RJ45 ports, redundant DC9~60V power supply,Multi-mode,FC connector,2KM

MISCOM6208-4S-SC20

4x100 fiber ports+4x10/100M RJ45 ports, redundant DC9~60V power supply,Single-mode,SC connector,20KM

MISCOM6208-4S-ST20

4x100 fiber ports+4x10/100M RJ45 ports, redundant DC9~60V power supply,Single-mode,ST connector,20KM

MISCOM6208-4S-FC20

4x100 fiber ports+4x10/100M RJ45 ports, redundantDC9~60V power supply,Single-mode,FC connector,20KM

MISCOM6208-2M-SC02-AD220

2x100 fiber ports+6x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Multi-mode,SC connector,2KM

MISCOM6208-2M-ST02-AD220

2x100 fiber ports+6x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Multi-mode,ST connector,2KM

MISCOM6208-2M-FC02-AD220

2x100 fiber ports+6x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Multi-mode,FC connector,2KM

MISCOM6208-2S-SC20-AD220

2x100 fiber ports+6x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Single-mode,SC connector,20KM

MISCOM6208-2S-ST20-AD220

2x100 fiber ports+6x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Single-mode,ST connector,20KM

MISCOM6208-2S-FC20-AD220

2x100 fiber ports+6x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Single-mode,FC connector,20KM

MISCOM6208-4M-SC02-AD220

4x100 fiber ports+4x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Multi-mode,SC connector,2KM

MISCOM6208-4M-ST02-AD220

4x100 fiber ports+4x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Multi-mode,ST connector,2KM

MISCOM6208-4M-FC02-AD220

4x100 fiber ports+4x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Multi-mode,FC connector,2KM

MISCOM6208-4S-SC20-AD220

4x100 fiber ports+4x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Single-mode,SC connector,20KM

MISCOM6208-4S-ST20-AD220

4x100 fiber ports+4x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Single-mode,ST connector,20KM

MISCOM6208-4S-FC20-AD220

4x100 fiber ports+4x10/100M RJ45 ports, AC85-264V/ DC110~370V isolated power supply,Single-mode,FC connector,20KM
