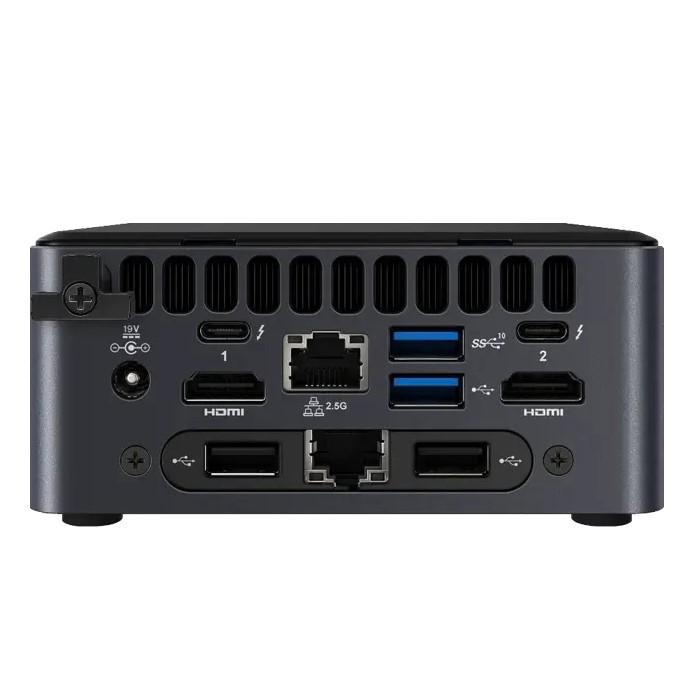

Intel NUC11TNHV70L (i7-1165G7, 2* LAN, 2x* Thunderbolt, 6* USB)
Precio sin IVA
775.00€
Precio de oferta
Precio sin IVA
775.00€
Precio habitual
Total with VAT (23%): 953.25€
Envío calculado en el pago.
Intel NUC 11 Pro NUC11TNHv70L
Intel Core i7-1165G7, gráficos Intel Iris Xe, Wi-Fi 6 AX/Bluetooth, LAN 2.5 GbE, M.2 PCIe, SATA 2.5'
- CPU: Intel Core i7-1165G7, 4C/8T, 1.20-4.70GHz, 8MB+5MB Cache, 12-28W TDP, Codename "Tiger Lake-UP3" (Willow Cove, 10nm SuperFin)
- 2x DDR4 SO-DIMM, dual PC4-25600S/DDR4-3200, max. 64GB (UDIMM)
- 1x SATA 6Gb / s, 1x M.2 / M-Key (PCIe 4.0 x4 / SATA, 2280), 1x M.2 / B-Key (PCIe 3.0 x1 / SATA, 2242, used for DoughterBoard Extension)
- Grphics: Intel Iris Xe Graphics (iGPU), 80EU/640SP, 1.30GHz, Codename "Tiger Lake GT2" (Gen12 Xe)
- Connectors: 2x HDMI 2.0b, 3x USB-A 3.1, 1x USB-A 2.0, 1x Thunderbolt 4, 1x Thunderbolt 3, 1x 2.5GBase-T (Intel I225-LM), 1x hollow socket (mains connection), 1x Audio jack
- Additionally: 2x USB-A 2.0, 1x 2.5GBase-T (Intel I225-LM)
- Extension: 1x M.2 / E-Key (Intel CNVi, 2230, used for WiFi + BT module)
- Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX201), Bluetooth 5.2
- Power supply external, 1x DC-In (120W/19V)
- VESA-Mount: 75x75/100x100 (included)
- Dimmensions (BxHxT): 117x54x112mm
- Volumen: 0.7l
- Special features: Security lock (Kensington), vPro, TPM 2.0, 4x display support, suitable for continuous operation
All the power of a standard PC in the palm of your hand
TheIntel NUC 11 Pro NUC11TNHv70L is a mini PC barebone that features an 11th generation Intel Core i5 processor with 4 cores. For a full-featured, responsive PC, simply add DDR4 RAM, an ultra-fast SSD and possibly an additional 2.5" drive for mass storage.
INTEL CORE PERFORMANCE
With its 11th generation Intel Core processor, the Intel NUC offers both outstanding performance and low power consumption. The 11th generation Intel Core processors are packed with advanced features to improve productivity and entertainment quality. With an M.2 PCIe SSD slot and two RAM slots (up to 64GB), this NUC will deliver smooth and fast operation.
UNCOMPROMISINGLY COMPACT
The Intel Tiger Canyon NUC offers a compact form factor that allows it to be installed in many different environments. Its small size does not prevent it from being efficient for office and multimedia use thanks to its Intel Core i5 processor and its numerous connection possibilities.
| Essentials | |
|---|---|
| Product Collection | Intel® NUC Kit with 11th Generation Intel® Core™ Processors |
| Code Name | Products formerly Tiger Canyon |
| Status | Launched |
| Launch Date | Q1'21 |
| Expected Discontinuance | 1H'24 |
| Supported Operating Systems | Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 18.04 LTS* |
| Board Number | NUC11TNBi7 |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| # of Internal Drives Supported | 2 |
| TDP | 28 W |
| DC Input Voltage Supported | 12-24 VDC |
| Processor Included | Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz) |
| # of Cores | 4 |
| # of Threads | 8 |
| Max Turbo Frequency | 4.70 GHz |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-3200 1.2V SO-DIMMs |
| Max # of Memory Channels | 2 |
| Max # of DIMMs | 2 |
| ECC Memory Supported | No |
| Processor Graphics | |
| Processor Graphics | Intel® Iris® Xe Graphics |
| Integrated Graphics | Yes |
| Graphics Output | Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C |
| # of Displays Supported | 4 |
| Expansion Options | |
| PCI Express Revision | Gen 4 (m.2 22x80 slot); Gen 3 (otherwise) |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E) |
| M.2 Card Slot (wireless) | 22x30 (E) |
| M.2 Card Slot (storage) | 22x80 NVMe (M) |
| I/O Specifications | |
| # of USB Ports | 4 |
| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 3x USB 2.0 Internal: 2x USB 2.0 (headers) |
| Total # of SATA Ports | 1 |
| Serial Port via Internal Header | Yes |
| Integrated LAN | Dual Intel® Ethernet Controller i225-LM |
| Integrated Wireless | Intel® Wi-Fi 6 AX201 |
| Integrated Bluetooth | Yes |
| Additional Headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| # of Thunderbolt™ Ports | 1x Thunderbolt™ 4, 1x Thunderbolt™ 3 |
| Package Specifications | |
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported | No |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® ME Firmware Version | 15 |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
