Sku: ARES-5310-N3350P
Type de produit:
PCs DIN Rail
Vendeur:
Arbor

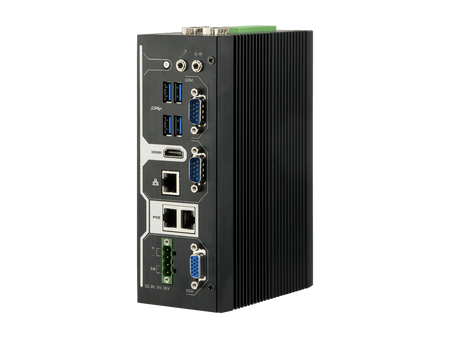

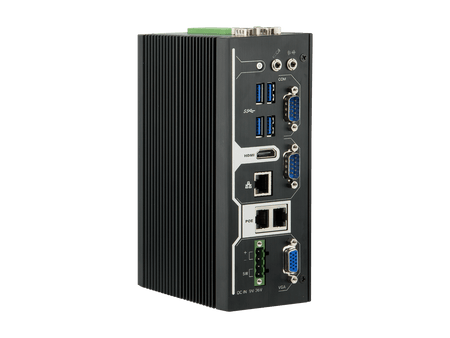

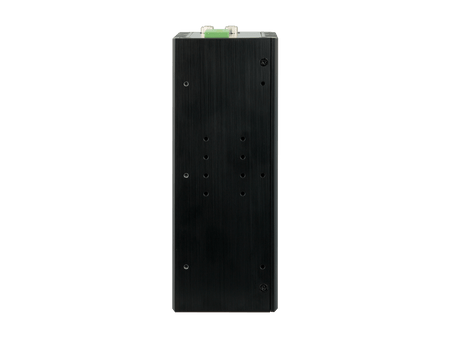

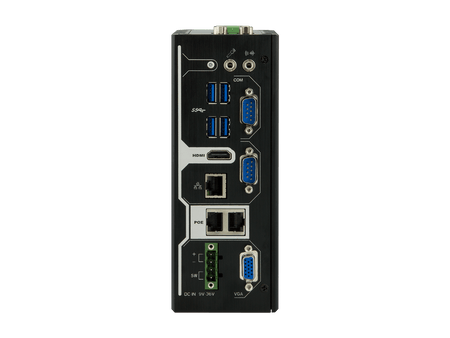

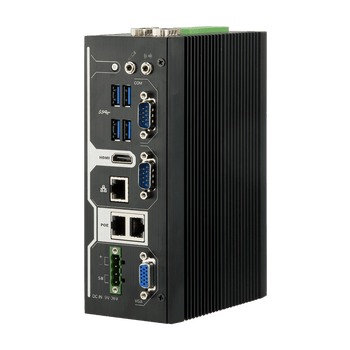

ARES-5310-N3350P
Embedded DIN-Rail PC com Intel® Celeron® N3350, 16x DI/DO, 2 PoE, 1 GbE LAN, M.2 M-Key
- Processador Intel® Celeron® N3350
- 2x portas RJ-45 PoE IEEE802.3af + 1x GbE LAN
- 4x portas combinadas USB 3.0/2.0
- I/O digital de 32 bits com isolamento de 2kV
- Compatibilidade para montagem DIN-Rail e wallmount
- Temperatura de operação de -20 ° C a 70 ° C
- Power on/off delay control / controle de energia de ignição configurável
Especificações
Downloads
Especificações
System
| CPU | Soldered onboard Intel® Atom™ x7-E3950 / Celeron® N3350 Processor, Max.12W TDP |
|---|---|
| Memory | 1 x 204-pin DDR3L SO-DIMM sockets, supporting 1866MHz SDRAM up to 8GB |
| Chipset | SoC |
| Graphics | Intel® HD Graphic 505 |
| LAN Chipset | 3 x Intel® i211AT PCIe controller (Co-Layout i210-IT) |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Serial Port | 4 x RS232 (Default)/ 422/ 485 (DB-9 male connector) (Switch via BIOS) |
|---|---|
| USB Port | 4 x USB 3.0/ 2.0 (Type A connector) |
| LAN | 3 x RJ-45 ports for GbE LAN (For -E3950A & -N3350A) 2 x RJ-45 ports for PoE IEEE802.3af + 1 x GbE LAN (For -E3950P & -N3350P) |
| Video Port | 1 x HDMI connector (Up to 3840 x 2160@30Hz) 1 x VGA connector (Up to 1920 x 1080@60Hz) |
| Expansion Bus | 1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) 1 x Mini PCIe slot (USB2.0, Full size) |
| Digital I/O | 4 x DI, 4 x DO (For -E3950A/S & -N3350A) 16 x DI, 16 x DO w/ 2kV isolation (For -E3950P & -N3350P) |
| SIM | 1 x internal on-board nano SIM slot |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -40 ~ 80°C (-40 ~ 176°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 5~500Hz 3 Grms X,Y,Z axis w/ mSATA, according to IEC 68-2-64 |
| Shock & Crash | 10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27 |
Qualification
| Certification | CE, FCC Class A |
|---|
OS Support
| System | Windows 10 IoT, Linux: Ubuntu (Kernel: 3.1X) |
|---|
Storage
| Type | 64GB eMMC on-board, 1 x 2.5” HDD/SSD tray (For -E3950A & -N3350A) 1 x M.2 M-Key, 2242, SATA3.0 (For -E3950P & -N3350P) |
|---|
Power Requirement
| Power Input | DC 9 ~ 36V (4-pin DC in terminal block: V+, V-, SW-, SW+) |
|---|---|
| Ignition Switch | 2-Pin terminal block: IGN & GND |
| Power Consumption | Max. 65W |
Mechanical
| Construction | Metal + Aluminum Alloy |
|---|---|
| Mounting | Wall-mount/ DIN-rail |
| Weight | 1.7Kg |
| Dimensions (W x D x H) | 180 x 125 x 70 mm (7.07” x 4.9” x 2.75”) |
Ordering Information
| ARES-5310-E3950A | ARES-5310 w/ E3950, 1 x HDMI, 1 x VGA, 4 x COM, 4 x DI/DO, 3 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x 2.5” HDD/SSD tray |
|---|---|
| ARES-5310-E3950P | ARES-5310 w/ E3950, 1 x HDMI, 1 x VGA, 4 x COM, 16 x DI/DO, 2 x PoE, 1 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x M.2 M Key storage |
| ARES-5310-E3950S | ARES-5310 w/ E3950, 1 x HDMI, 1 x VGA, 4 x COM, 4 x DI/DO, 2 x PoE, 1 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x M.2 M Key storage |
| ARES-5310-N3350A (BTO) | ARES-5310 w/ N3350, 1 x HDMI, 1 x VGA, 4 x COM, 4 x DI/DO, 3 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x 2.5” HDD/SSD tray |
| ARES-5310-N3350P (BTO) | ARES-5310 w/ N3350, 1 x HDMI, 1 x VGA, 4 x COM, 16 x DI/DO, 2 x PoE, 1 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x M.2 M Key storage |
