Sku: ARES-5320-x6425A
Type de produit:
PCs DIN Rail
Vendeur:
Arbor

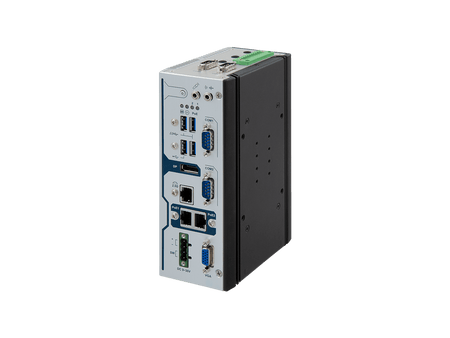

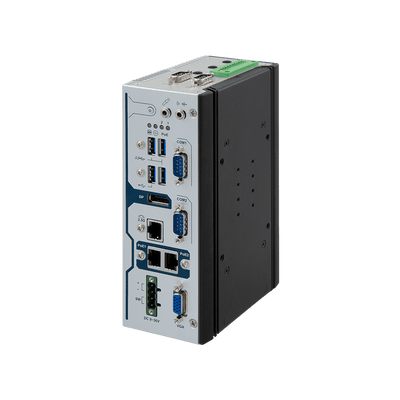

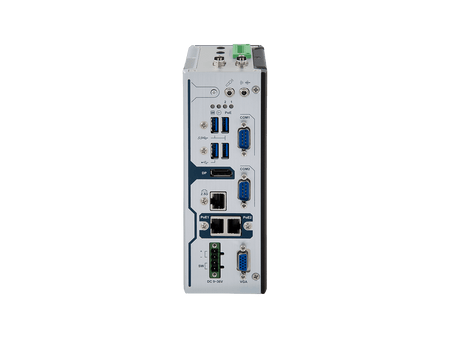

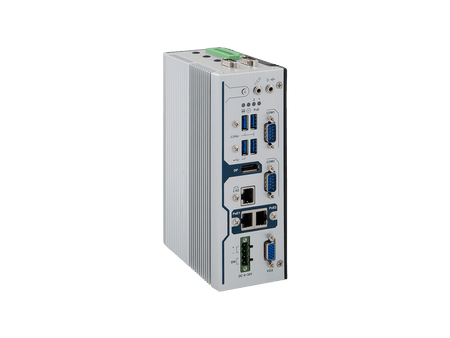

ARES-5320-x6425A
DIN-Rail PC com Intel® Elkhart Lake Atom™ x6425RE e 3x 2.5GbE
- Intel® Atom™ x6425RE
- 3x 2.5 GbE (2x PoE IEEE 802.3af)
- 3x USB 3.2 Gen1 + 1x USB 2.0
- 8x COM & 16bit Digital I/O
- Isolated DI/DO 2KV Protection, DI Supports Connection of Dry & Wet Contact devices
- Wide-range Operating Temperature from -20°C to 70 °C
- Power On & Off Delay Control / Configurable Ignition Power Control
Especificações
Downloads
Especificações
System
| CPU | Soldered onboard Intel® Atom™ x6425RE Processor |
|---|---|
| Memory | 1 x 260-pin DDR4 SO-DIMM sockets, supporting 3200MHz SDRAM up to 32GB |
| Chipset | SoC |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LAN Chipset | 3 x Intel® i226LM |
| Watchdog Timer | 1~255 levels reset |
| TPM | dTPM 2.0 |
I/O Interface
| Serial Port | 2 x RS232 2 x RS232(Default)/422/485 4 x 2kV isolated RS232/422/485 (For -ISO ver.) |
|---|---|
| USB Port | 3 x USB-A 3.2 Gen1 (5Gbps) 1 x USB-A 2.0 |
| LAN | 3 x 2.5GbE (For A & A-ISO ver.) 1 x 2.5GbE + 2 x 2.5GbE PoE(IEEE802.3af) (For P & P-ISO ver.) |
| Video Port | 1 x DP++, up to 4096 x 2160@60Hz 1 x VGA, up to 1920 x 1200@60Hz |
| Audio Port | 1 x Mic-in, 1 x Line-out |

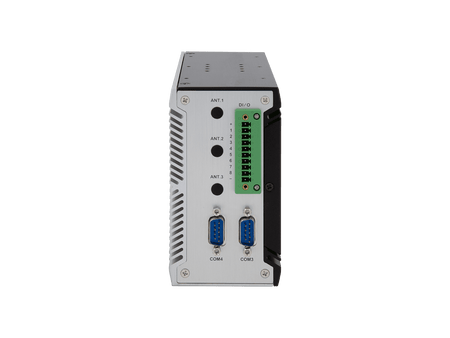

| Digital I/O | 8 x DI/O (For A & P ver.) 8 x DI & 8 x DO both w/ 2kV isolation (For -ISO ver.) |
| Expansion Bus | 1 x Full-size mPCIe slot (USB2.0, colay w/ mSATA) w/ 1 x nano SIM slot 1 x Full-size mPCIe slot (PCIe x1 + USB2.0) 1 x Half-size mPCIe slot (PCIe x1 + USB2.0) |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -40 ~ 80°C (-40 ~ 176°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 5~500Hz 3 Grms X,Y,Z axis w/ eMMC, according to IEC 68-2-64 |
| Shock | 10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27 |
Qualification
| Certification | CE, FCC (Class A), E-Mark |
|---|
OS Support
| System | Windows 10 IoT / Windows 11 IoT / Ubuntu |
|---|
Storage
| Type | 1 x Onboard 64G eMMC 1 x Full-size mSATA slot (colay w/ mPCIe) 1 x 2.5” SSD/HDD tray (For A & P ver.) |
|---|
Power Requirement
| Power Input | DC 9 ~ 36V (4 pin DCin terminal block: V+, V-, SW-, SW+) |
|---|---|

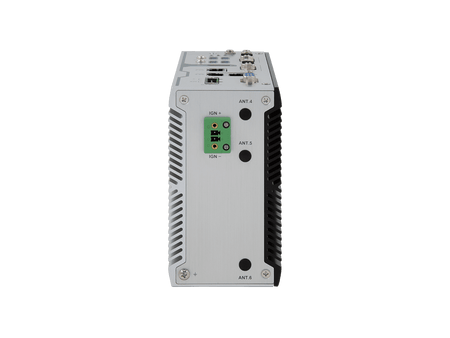

| Ignition Switch | 1 x 2 pin terminal block (IGN+, IGN-) |
| Power Consumption | Max. 65W |
Mechanical
| Construction | Metal + Aluminum Alloy |
|---|---|
| Mounting | DIN-rail (standard) Wall mount (optional w/ CTOS bracketT, but not supported for -ISO ver.) |
| Weight | 1.9kg |
| Dimensions (W x D x H) | 70 x 125 x 190 mm |
Ordering Information
| ARES-5320-x6425A | ARES-5320 w/ 3 x 2.5GbE, 4 x COM, 4 x USB, 1 x DP, 1 x VGA, 8 x DI/O, 64G eMMC & 1 x 2.5" SSD/HDD Tray |
|---|---|
| ARES-5320-x6425P | ARES-5320 w/ 2 x 2.5G PoE + 1 x 2.5GbE, 4 x COM, 4 x USB, 1 x DP, 1 x VGA, 8 x DI/O, 64G eMMC & 1 x 2.5” SSD/HDD Tray |
| ARES-5320-x6425A-ISO (BTO) | ARES-5320 w/ 3 x 2.5GbE, 8 x COM(4 x isolated), 4 x USB, 1 x DP, 1 x VGA, 8 x isolated DI, 8 x isolated DO & 64G eMMC |
| ARES-5320-x6425P-ISO (BTO) | ARES-5320 w/ 2 x 2.5G PoE + 1 x 2.5GbE, 8 x COM(4 x isolated) , 4 x USB, 1 x DP, 1 x VGA, 8 x isolated DI, 8 x isolated DO & 64G eMMC |
