• Intel Whiskey Lake U i5-8265U
  • SO-DIMM DDR4 64GB
  • 2x RS232/422/485, 4x PoE
  • 16-bit GPIO
  • 12~36V DC-in
com IVA
1,183.87€

sem IVA
962.50€
Sku: HM-5004
Type de produit: PCs DIN Rail
Vendeur: Jetway

HM-5004

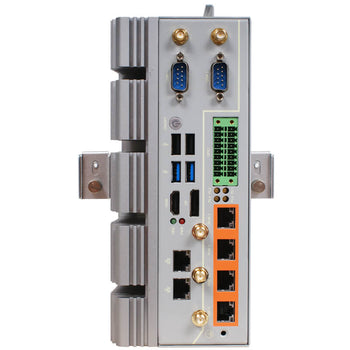

DIN-rail PC com Intel® Whisky Lake I5-8265U, PoE e GPIO

  • Intel Gen. 8th/10th Core i U-Series CPU
  • 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB)
  • 2* RS232/422/485, 4* GbE
  • 16-bit GPIO
  • Support 4G/5G (M.2 B Key + Nano SIM Holder) Module, Wi-Fi6 Module (M.2 E Key)
  • 12~36V DC-in with OCP/OVP
  • Remote Power Switch Design
Caraterísticas

The HM-5000 series Fanless system features the Intel Gen. 8th/10th Core I Processor power, with rich IO and excellent heat dissipation solution. HM-5000 series supports 12~36V power, Over-voltage & Over-current protection, and remote power switch by terminal block connection.

The superior HM-5000 features full rugged industrial designs: 5KV 16-bit GPIO with optical isolation; 4* PoE GbE compliance with IEEE802.3af/at protocol; and 2* additional Intel GbE.

HM-5000 supports rich internal IO options: Dual Channel SODIMM, M.2 M Key with support NVMe SSD, M.2 E Key for Wi-Fi6 Module installation, and M.2 B Key for 4G/5G module connection in a compact size.

Diagrama

HBJC330U10_Front_diagram
Especificações

 Model

– HM-5004 (Default)

 General

 Certification

– FCC, CE, ROHS

 Dimensions

– 216.8 x 124 x 86mm (W x D x H)

 Mounting

– Wall Mount, Din Rail Mount

 Power Requirements

– 12 ~ 36VDC

 Power Consumption

– Change according to CPU

 OS Support

– Windows 10/11, Linux

 Hardware

 BIOS

– AMI 128Mbit Flash BIOS

 CPU

– HM-5004 (8265U, Default): Intel® Whiskey Lake Mobile U i5-8265U

 Memory

– 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB)

 Graphics

– Intel® UHD Graphics (by CPU)

 Ethernet

– 1* Intel® i219LM GbE
– 1* Intel® i211AT GbE
– 4* PoE GbE (I350AM4)

 Storage

– 1* 2.5” external cold-swap SATA3 bay
– 1* M.2 M key (2242/2280 size, SATA or NVMe interface for SSD)

 Expansion

– 1* M.2 E key (2230 size, CNVi interface for WIFI/BT)
– 1* M.2 B key (3042/3052 size for 3G/4G/5G Module)

 Front I/O Interface

 Serial Port

– 2* RS-232/422/485 with DB9 connectors, automatic RS-485 data flow control

 Display

– 1* HDMI 1.4b, support 4096 x 2304@30Hz
– 1* DP 1.2, support 4096 x 2304@60Hz

 LAN

– 2* RJ45, 10/100/1000 Mbps
– 4* RJ45 PoE 10/100/1000 Mbps, support IEEE802.3AF/AT (up to 100W)

 GPIO

– 16 bit GPIO 5KV optical isolation (5V/12V)

 USB

– 2* USB3.0
– 2* USB2.0

 LED

– 4* PoE LED
– 1* Power LED
– 1* HDD LED

 Power Button

– 1* power button (Power LED)

 Side I/O Interface

 Power Connector

– 1* 3 Pin, terminal Block with lock for Main board
– 1* 3 Pin, terminal Block with lock for 4x PoE LAN

 Front Power Button

– 1* 2Pin for remote power switch function

 Environment

 Temperature

– Operating:-10 ~ 50°C
– Storage:  -20 ~ 70°C

 Relative Humidity

– 10 ~ 90% RH, non-condensing

 CE/LVD/FCC Protection

– EN 55032 : 2015
– EN 55035 : 2017
– EN 61000-3-2 : 2019
– EN 61000-3-3 : 2013 + A1 : 2019
– EN 62368-1:2014 + A11 : 2017

 Warranty

 Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
