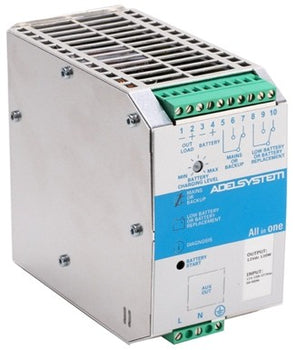

DC-UPS CBI126A All In One (Input 115-230VAC Output 12V 6A)

DC-UPS CBI126A All In One (Input 115-230VAC Output 12V 6A)

  • Input: Single-phase 115 – 277 Vac
  • Output Load: power supply 12 Vdc; 6 A
  • Output Battery: charging 12 Vdc; 6 A
  • MTBF IEC 61709 > 300.000 h
  • Proteção IP20 (EN/IEC 60529)
com IVA
244.77€

sem IVA
199.00€
Sku: CBI126A
Type de produit: Fontes DC-UPS
Vendeur: ADELSYSTEM

CBI126A

DC-UPS All In One Input 115-230Vac, Output 12V 6A

  • Input: Single-phase 115 – 277 Vac
  • Output Load: power supply 12 Vdc; 6 A
  • Output Battery: charging 12 Vdc; 6 A
  • Suited for the following battery types: Open Lead Acid, Sealed Lead Acid, Lead Gel, Li-Ion and Ni-Cd
  • Automatic diagnostic of battery status. Charging curve IUoU, constant voltage and constant current Battery Life Test function (Battery Care)
  • Switching technology, output voltage 10-14.4Vdc
  • Three charging levels: Boost, Float and Recovery
  • Protected against short circuit and inverted polarity
  • Signal output (contact free) for discharged or damaged battery
  • Signal output (contact free) for mains or Back-UP
  • Protection degree IP20 - DIN rail; Space saving

Especificações
DC-UPS-Range

Main features

  • Output current 2,5 A ÷ 20 A even in case of power outage (shortage)
  • Automatic allocation of available power between load and battery charging up to twice-rated output current
  • Power output: 120W, 240W, 280W, 500W, 600W
  • Visual indication of "power shortage","defective battery", "battery voltage< 30%", "battery charging level", self-diagnostic with flashing LED code
  • Warning relays: "main or back-up" and "defective/flat battery" with galvanic isolated output contacts NO-NC
  • 3 charging levels: "boost", "trickle" and "recovery"
  • Self-diagnosis "overload", "battery sulfutation", "reverse polarity connection", "elements in short circuit", "protection against short circuit"
  • Compatible with a remote connection to select "boost" or "trickle" charging mode
  • Accessories upon request: external temperature sensors; voltage drop compensation; remote LED display
  • Compact dimensions
  • Ambient temperature operation: -25 ÷ 70°C
  • IP 20


Start Battery Button feature

  1. AC MAIN FAILURE
  2. DC-UPS continues to power backup through the BATTERY
  3. AC Power failure longer than expected.
  4. Replace the battery with a new one
  5. Push the START BATTERY button for 3 seconds
  6. Production continuity is guaranteed


Diagrama Funcional
CBI126A
CBI126A_design
Diagrama CBI243-5A CBI123-6-10A
Downloads
Datasheet
Manual
