Model |
– HBFBZ10-6412-B – HBFBZ10I-6412-B – HBFBZ10-6412-E (EMMC) – HBFBZ10I-6412-E (EMMC) – HBFBZ10-6412-T (EMMC&TPM) – HBFBZ10I-6412-T (EMMC&TPM) |
|
CPU/Chipset |
– Intel® Elkhart Lake SoC Processor (J6412) | |
BIOS |
– AMI Flash ROM | |
Memory |
– 1* DDR4 3200MHz SO-DIMM up to 32GB | |
Network |
– 4* Intel i225V 2.5GbE | |
Graphics |
– Intel® HD Graphics, shared memory – 1* HDMI 2.0 (Max Resolution: 4096×2160@60Hz) |
|
Storage |
– 1* M.2 M-key (2242, PCIe Gen.3 x2/SATA interface) support NVME, (co-layout M.2 B-key) | |
Expansion slot |
– 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface) – 1* M.2 B-key (3042/3052, USB3.1 interface) co-layout M.2 M-key (If you use M.2 B-key type-3042/3052 card, M.2 M-key type-2242 is not available; vice versa) |
|

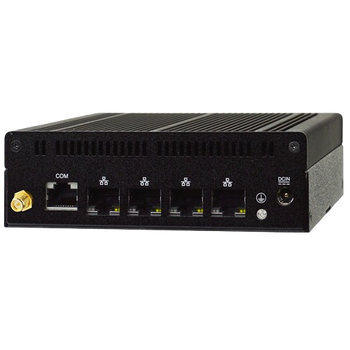

Rear Panel I/O |
– 4* RJ45 – 1* COM (RJ45 type) – 1* DC-in jack |
|
Front Panel I/O |
– 1* Power button + Power LED – 1* Reset – 1* USB3.1 – 1* USB2.0 – 1* HDMI (Max. 4096×2160@60Hz resolution) |
|
Internal Connector |
– 64GB eMMC onboard (by model) – 1* SIM card holder |
|
Compliance |
– CE, FCC, RoHS, ErP Ready | |
Power Source |
– MB : DC12V input – Adapter : AC 90~240V input / DC12V-3.3A-40W output |
|
Compliance |
– CE, FCC, LVD, RoHS, ErP Ready | |
Temperature |
– Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD) – Storage Temperature: -40 ~ 85° C – Humidity: 10% ~ 95% RH @40°C (non-condensing) |
|
Dimensions |
– System: 125 (W) x 109 (D) x 39.5 (H) mm – Color Box : 158 (W) x 167 (D) x 123.6 (H) mm |
|
OS Support |
– Windows 10, Windows 11, Linux | |
Warranty |
– 2 Year limited warranty | |
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
