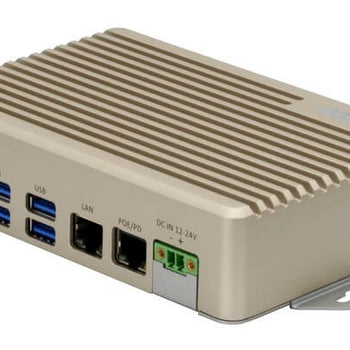

The BOXER-8222AI is powered by the innovative and energy efficient NVIDIA® Jetson Nano™ SoC. Specialized for AI edge computing, the Jetson Nano utilizes the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also features onboard 4GB RAM and MicroSD card slot supporting up to 32GB of storage.
The BOXER-8222AI features a PoE PD (Powered Device) LAN port, allowing for deployment without a dedicated power supply when connected to a PSE Gateway (Power Supply Equipment). The BOXER-8222AI utilizes the 802.3at standard, supporting power input of 25.6W, more than enough to power the system and connected devices such as USB cameras and sensors.
The BOXER-8222AI is designed with a flexible I/O loadout including a 40-pin I/O connector designed to support a wide range of sensors and controllers. It also features four USB3.2 Gen 2 ports, RS-232 COM port, as well as LAN and HDMI ports. The BOXER-8222AI also supports Wi-Fi expansion with an onboard M.2 2230 slot.
The BOXER-8222AI is designed to operate in a range of rugged environments, featuring a fan-less design to ensure reliable operation. It can operate in temperatures from -10°C up to 70°C without a loss in performance. Its compact size also makes it easy to deploy in tight spaces, putting it closer to where it’s needed.
| SYSTEM | |
| AI ACCELERATOR | NVidia® Jetson Nano™ |
| CPU | Quad Core ARM® Cortex®-A57 MPCore Processor |
| SYSTEM MEMORY | 4GB LPDDR4 |
| STORAGE DEVICE | 32 GB MicroSD Card (Version A) 16 GB eMMC (Version B) Mini-Card (Full Size) x 1 (PCIE+SATA+USB) |
| DISPLAY INTERFACE | HDMI 2.0 x 1 |
| ETHERNET | 10/100/1000Base-TX x 2 |
| I/O | USB 3.2 Gen 1 x 4 LAN x 1 PD x1 (Powered Device) 40-pin I/O x 1 (GPIO/I2S/I2C/Audio/SPI/UART) RS-232 x 1 HDMI x 1 Mico-USB x 1 for Flash OS DC Power Input x 1 Recovery Button x 1 Micro-USB for Flash OS x 1 |
| EXPANSION | Antenna x 2 M.2 2230 E Key x 1 (for Wi-Fi) |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (AAEON ACLinux 4.9) Linux (NVIDIA Jetpack 4.5) |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC 12V~24V 2-pin terminal |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 6.92” x 3.94” x 1.54” (175.8 mm x 100.0 mm x 39.0 mm) |
| GROSS WEIGHT | 2.31 lbs (1.05 kg) |
| NET WEIGHT | 1.28 lbs (0.58 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 14°F ~ 158°F (-10°C ~ 70°C, according to IEC60068-2 with 0.5 m/s AirFlow) |
| STORAGE TEMPERATURE | -40 °F ~ 176°F(-40°C ~ 80°C) |
| STORAGE HUMIDITY | 95% @ 40C, non-condensing |
| ANTI-VIBRATION | Random, 3.5Grm, 5~500Hz |
| ANTI-SHOCK | — |
| CERTIFICATION | CE/FCC class A |
| PART NUMBER | BOXER-8222AI-A1-1010 | BOXER-8222AI-A3-1010 | BOXER-8222AI-B3-1111 | BOXER-8222AI-JP46E-B1-1111 |
|---|---|---|---|---|
| AI SOLUTION | NVidia® Jetson Nano™ | NVidia® Jetson Nano™ | NVidia® Jetson Nano™ | NVidia® Jetson Nano™ |
| LAN | GbE PD x 1 | GbE PD x 1 | GbE PD x 1 | GbE PD x 1 |
| USB | GbE LAN x 1 USB 3.2 Gen 1 x 4 |
GbE LAN x 1 USB 3.2 Gen 1 x 4 |
GbE LAN x 1 USB 3.2 Gen 1 x 4 |
GbE LAN x 1 USB 3.2 Gen 1 x 4 |
| RS-232 | 1 | 1 | 1 | 1 |
| I/O | 40-pin I/O 3.3V x 2 pin, 5.0V x 2 pin, GND x 8 pin, I2C x 2, SPI x 2, I2S x 1, UART x 1 , GPIO x 4 |
40-pin I/O 3.3V x 2 pin, 5.0V x 2 pin, GND x 8 pin, I2C x 2, SPI x 2, I2S x 1, UART x 1 , GPIO x 4 |
40-pin I/O 3.3V x 2 pin, 5.0V x 2 pin, GND x 8 pin, I2C x 2, SPI x 2, I2S x 1, UART x 1 , GPIO x 4 |
40-pin I/O 3.3V x 2 pin, 5.0V x 2 pin, GND x 8 pin, I2C x 2, SPI x 2, I2S x 1, UART x 1 , GPIO x 4 |
| STORAGE | 32 GB MicroSD Card x 1 Mini-Card (Full Size) slot x 1 |
32 GB MicroSD Card x 1 Mini-Card (Full Size) slot x 1 |
16GB eMMC Mini-Card (Full Size) slot x 1 |
16GB eMMC Mini-Card (Full Size) slot x 1 |
| EXPANSION | M.2 E-key 2230 slot x 1 | M.2 E-key 2230 slot x 1 | M.2 E-key 2230 slot x 1 | M.2 E-key 2230 slot x 1 |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| MOUNTING | Wallmount | Wallmount | Wallmount | Wallmount |
| POWER | DC 12V~24V | DC 12V~24V | DC 12V~24V | DC 12V~24V |
| OPERATION TEMP | -10°C ~ 70°C with 0.5m/s airflow | -10°C ~ 70°C with 0.5m/s airflow | -10°C ~ 70°C with 0.5m/s airflow | -10°C ~ 70°C with 0.5m/s airflow |
| OPERATION SYSTEM | ACLinux 4.9 | NVIDIA Jetpack 4.5 |
NVIDIA Jetpack 4.5 |
NVIDIA Jetpack 4.6 |
