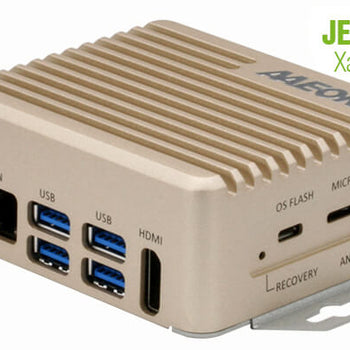

The BOXER-8251AI is powered by the innovative Jetson Xavier NX from NVIDIA. Featuring a six-core 64-bit ARM processor, it boasts 384 CUDA® cores, 48 Tensor Cores, and two NVDIA engines capable of running multiple neural networks in parallel, delivering accelerated computing performance up to 21 TOPS. Built to bring dedicated AI processing to the edge, the system also features 8GB of LPDDR4 memory and 16GB of onboard eMMC memory that’s expandable through the Micro-SD card slot.
One of the most innovative features of the NVIDIA Jetson Xavier NX is the ability of users to select five different performance modes. These modes allow users to tailor the number of cores, processor speed, and power draw the system utilizes. The BOXER-8251AI also provides users with greater flexibility with its compact size and I/O features; with two COM ports and four USB 3.2 Gen 1 ports, as well as Gigabit Ethernet port. Its rugged, fanless design keeps dust and other contaminants out of the system, offering reliable and low-maintenance operation for more stable performance.
| SYSTEM | |
| AI ACCELERATOR | Nvidia Jetson Xavier NX |
| CPU | 6 Core ARM® Carmel®V8.2 64bit CPU 6MB L2 + 4MB L3 |
| SYSTEM MEMORY | 8GB LPDDR4 |
| STORAGE DEVICE | 16GB eMMC + MicroSD |
| DISPLAY INTERFACE | HDMI 2.0 |
| ETHERNET | 10/100/1000Base-TX x 1 |
| I/O | USB 3.2 Gen 1 x 4 LAN x 1 RS-232 x 2 HDMI x 1 MicroSD x 1 DC Power Input x 1 Recovery Button x 1 Micro-USB for Flash OS x 1 |
| EXPANSION | M.2 E-Key 2230 x 1(for WiFi) |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (AAEON ACLinux 4.9) Linux (NVIDIA Jetpack 4.5) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12Vdc w/ 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 3.46" x 2.95" x 1.53" (88mm x 75mm x 39mm) |
| GROSS WEIGHT | 1.10 lb (0.5 kg) |
| NET WEIGHT | 0.66 lb (0.3 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | (Please refer to below) |
| STORAGE TEMPERATURE | -40°F ~ 158°F (-40°C ~ 70°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC |
| ANTI-SHOCK | — |
| CERTIFICATION | CE/FCC class A |
| PART NUMBER | BOXER-8251AI-A3-1010 | BOXER-8251AI-JP46E-A1-1010 | BOXER-8251AI-JP46E-E1-1010 (HIGH HEATSINK) |
|---|---|---|---|
| AI SOLUTION | Jetson Xavier NX | Jetson Xavier NX | Jetson Xavier NX |
| LAN | 1 | 1 | 1 |
| USB | 3.2 Gen 1 x 4 | 3.2 Gen 1 x 4 | 3.2 Gen 1 x 4 |
| RS-232 | 2 | 2 | 2 |
| STORAGE | 16GB eMMC + MicroSD | 16GB eMMC + MicroSD | 16GB eMMC + MicroSD |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| MOUNTING | Wallmount | Wallmount | Wallmount |
| POWER | 12Vdc w/ 2 pin terminal block | 12Vdc w/ 2 pin terminal block | 12Vdc w/ 2 pin terminal block |
| OPERATION SYSTEM | NVIDIA Jetpack 4.5 | NVIDIA Jetpack 4.6 | NVIDIA Jetpack 4.6 |
