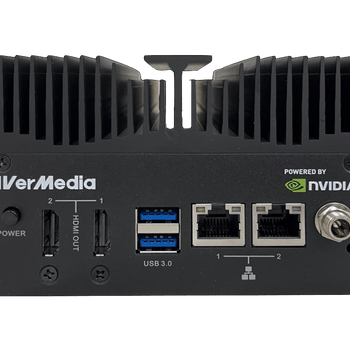

AVerMedia’s NX215B is the next generation of AI Box PC that is designed with the NVIDIA® Jetson Xavier™ NX module. Suited for situations with spatial concerns, this high inference AI Box comes in at a compact 126mm (W) x 96mm (L) x 74mm (H) housing. And with a fanless design, the thermally optimized housing is capable of operating at 0°C ~ 60°C while running virtually silently.
We understand that every situation has a set of unique requirements, and this is the reason the NX215B is designed with a rich assortment of I/O ports. From 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input (internal), to 2x 4Kp60 HDMI output, and 2x GbE RJ-45, you can rest assured that the NX215B carries key I/O ports required for your unique application. And if you require additional customizations, our customer-dedicated team will be happy to support you with rapid deployment.
| Model |
NX215B |
|---|---|
| Type | Box PC |
| NVIDIA GPU SoC Module Compatibility |
NVIDIA® Jetson Xavier™ NX module (8GB / 16GB*) |
| Networking |
2x GbE RJ-45 1x M.2. key E 2230 for wifi |
| Display Output |
2x HDMI (3840 x 2160 at 60Hz) |
| Temperature |
Operating temperature 0°C~60°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
| MIPI Camera Inputs(Internal) |
• 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson Xavier™ NX Developer Kit) • 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector |
| USB |
1x USB 2.0 Micro-B for recovery 3x USB 3.0 Type-A (1x internal) |
| Storage |
1x micro-SD card slot 1x M.2. key M 2280 for SSD |
|
Expansion Header (Internal) |
20 pins: 2x I2C, 1x UART, 4x GPIOs, 2x CAN (EU terminal block) |
| Input Power |
DC in Jack on board & ATX 4pin 12V/5A, 12V~24V is recommended. |
| Power Cord |
US/JP/EU/UK/TW/CN |
| Fan Module |
Fanless Solution |
| Buttons | Power and Recovery |
| RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
| PCB/Electronics Mechanical Info |
W: 126mm x L: 96mm x H: 74mm (4.96” x 3.80” x 2.91”) Weight: 1kg |
| Certifications |
CE, FCC, KC |
| Optional Accessories | Specs |
|---|---|
| MIPI Camera |
For 15 pin MIPI connector: raspberry pi camera v2 Manufacturer: APPRO.PHO B-04: IMX179 (8M) MIPI, 1080P (30fps) C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)
For 36 pin MIPI connector: Manufacturer: APPRO.PHO B-03: IMX334 (4K) MIPI, 4K (30fps) A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps) |
