• Allwinner® V40 QuadCore
  • 2GB DDR3 / 8GB EMMC Flash
  • 15" Capacitive Touch Panel
  • Proteção IP65
  • Modulo WLAN integrado
com IVA
731.85€

sem IVA
595.00€
Sku: FT15V40CAPOB
Type de produit: Panel-PC Embedded
Vendeur: Faytech

FT15V40CAPOB

  • CPU Allwinner V40 Cortex® A7 QuadCore 1GHz
  • 2GB memória RAM; 8GB EMMC FLASH
  • Android 6.0 pré-instalado
  • Vidro frontal de 1.1mm com dureza de 7H
  • Tratamento de superfície anti-reflexo
  • Touchscreen ligado opticamente ao LCD
  • Touchscreen capacitivo de 10 pontos multi-toque
  • Painel frontal com IP65 patenteada com selo de silicone
  • W-LAN integrada
  • 2 anos de garantia
embedded android
Caraterísticas
IP Rating
Protection
IP65 Front/ IP40 Back
PC System
CPU
Arm V40
RAM
2GB
Memory
8GB Flash
Operating System
Android
LCD Panel
Display Size
15"
Display Format
4:3
Physical Resolution
1024x768
Brightness
300 cd/m²
Optical Bonding
Optical Bonding
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
capacative
Power
Power Supply
8-18V
External connections
HDMI
1
VGA
0
DP
0
USB 2.0
2
USB 3.0
0
Especificações

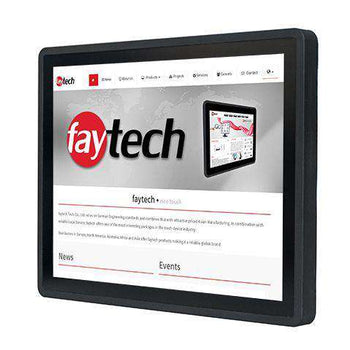

Product name  15" Capacitive Embedded Touch PC (ARM V40)
Article code / EAN number FT15V40CAPOB / 6920734015801
CPU Allwinner® V40 QuadCore
Chipset Cortex A7
Graphic GPU ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1
Audio Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier
Memory 2GB DDR3
Storage 8GB EMMC Flash
Network 10/100Mbits Network; W-LAN
OS Android 6
IP65 Front / IP40 Back
Screen diagonal (Inch/cm) 15/38.10
Display active screen size (cm) 30.40×22.80
Aspect ratio 4:3
Physical resolution 1024×768
External maximum showable resolution - HDMI 1920×1080
Colours displayed 16.7M
Brightness (cd/m²) 300
Contrast 700:1
Typical reaction time Tr/ Tf (ms) 8/12
Visual Angle horizontal/vertical (°) 160/160
Backlight / Backlight Lifetime (hours) LED / 30,000
Touch Technology Projected Capacitive 10-point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etching)
Glass Strengthening Chemically Strengthened
Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 4.10
Gross weight (kg) 5.10 (incl. cartonage)
Housing material Rubber front case, Plastic back case
Housing (mm) L × W × H 359.0 × 298.0 × 45.0
Cut-out for clamp supports (mm) L × H 335.0 × 274.0
Max. wall thickness for clamp supports (mm) 5.0
Amount of clamps required 6
Mounting VESA 100
Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 8~18
Power Consumption (W) 16
Stand-By Consumption (W) <1
1x SD-card
1x SIM-card
2x Serial
4x TTL UART
2x USB 2.0
18/24Bit LVDS
6x GPIO
1x SATA-Port
1x Line-In
1x Line-Out
1x RTC
1x CAN Bus
1x Amplifier for 2x 6W loudspeaker
1x 8-18V DC-In (screwable)
1x 10/100Mbits RJ45 port
1x W-LAN antenna connector (RP-SMA male)
1x RJ10 (4P4C)
2x USB 2.0
1x USB OTG
2x USB 2.0
1x Audio-In
1x Audio-Out
1x HDMI
1x Serial
1x SIM-card slot
1x SD-card slot
Opcionais
€79.50

Modulo de ignição

Grampos de fixação
19.90€

Grampos de fixação
