• CPU Intel® Core™ i5-1145G7E
  • 8GB RAM / 240GB SSD
  • 19" Capacitive Touch Panel
  • Proteção IP65
  • DC 12 - 36V
com IVA
1,998.75€

sem IVA
1,625.00€
Sku: FT19BI5CAPOB
Type de produit: Panel-PC Alta Performance
Vendeur: Faytech

FT19BI5CAPOB

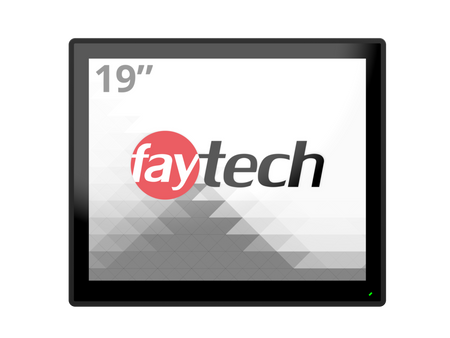

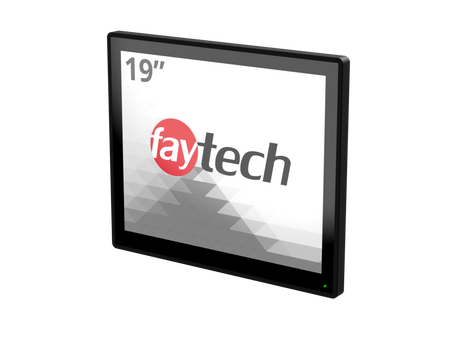

19" Capacitive Touch PC (i5-1145G7E)

  • Intel® Core™ i5-1145G7E QuadCore
  • 8GB RAM, SSD 240GB Industrial
  • Suporta Debian 12, Win 10 & 11, Linux (32Bit, 64Bit)
  • Tratamento de superfície anti-reflexo
  • Vidro de cobertura de 1,1 mm com dureza de superfície 7H
  • Painel Multi Touch Capacitivo de 10 toques
  • Proteção IP65 frontal patenteada com selo de silicone
  • Optically bonded
  • W-LAN integrada
  • Suporta fixação por grampos
  • Garantia de 2 anos
Caraterísticas

faytech’s Capacitive PC series stands out among competition with its fanless silent operation, IP65 front panel design, high reliability and fine craftwork. It is the perfect choice for industrial and business application. It has flat edge to edge glass with IP65 water- and dust proof front panels and a sturdy aluminum case with stable VESA 100 fixation bolts. This solution consists of front kit and back kit, ensuring your required configuration is easily customizable.

This Touch PC is powered by faytech’s industrial Tiger Lake U mainboard. It is driven by the powerful Intel Core i5-1145G7E processor with up to 4.10 GHz burst frequency (also available with Intel i3-1115G4E or i7-1185G7E processor). This version is equipped with 8 GB RAM, 240 GB SSD and Intel’s Iris Xe Graphics chipset.

These faytech PCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more.

Especificações

Product Details

Model number FT19BI5CAPOB
Global article code 3030515171
European article code 1010502668
EAN number 6920734000906



IP Rating

IP65 front / IP40 back



PC System

CPU Intel® Core™ i5-1145G7E (Tiger Lake U)
GPU Graphics Intel® Iris® Xe Graphics
Audio
Memory 8 GB DDR4
Switchable Storage 240 GB SSD
Network 2x Realtek® 8111H (10/100/1000 Mbit/s, 1x with PoE)
Preinstalled OS Debian 12



LCD Panel

Screen diagonal 19.0" / 48.2 cm
Display active screen size 37.48 cm x 29.98 cm (14.75 in x 11.80 in)
Aspect ratio 4:3
Physical resolution 1280 × 1024 px
Maximum showable resolution 1920 ×1080 px
Brightness 250 (cd/m²)
Contrast 1000:1
Typical reaction time Tr/ Tf - (ms)
Visual angle horizontal/vertical 178/178 (°)
Backlight LED
Backlight lifetime 30,000 (hours)



Touch Panel

Touch technology Projected Capacitive 10-point Multitouch
Touch lifetime Unlimited
Surface hardness 7H
Surface treatment Anti-glare (chemical etching)
Glass strengthening Thermally Strengthened



Operation/Mechanical

Operating temperature -10 °C ~ +60 °C (14 °F ~ 140 °F)
Humidity range 10% - 90% RH
Net weight 5.00 (est.) kg / 11.023 lb
Gross weight (incl. cartonage) 6.80 (est.) kg / 14.991 lb
Housing material Rubber Frame Sealing, Aluminum IPC back
Housing sizes 431.5 mm x 364.5 mm x 53.0 mm (16.98 in x 14.35 in x 2.086 in)
Clamp support Yes
cut-out for clamp supports (L X H) 407.5 mm x 340.5 mm (16.04 in x 13.40 in)
Amount of clamps required 6
Mounting VESA 100



Power

Power indicator Green LED
Power supply 100-240V ACDC active switching; 12V DC-Out
Working power 9-36 V
Power consumption 29.2 W
Standby power 1 W



Internal Connectors

Contact Sales for more info

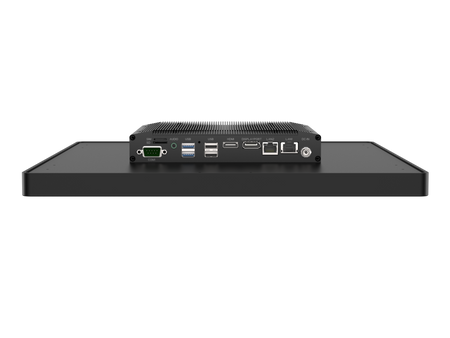

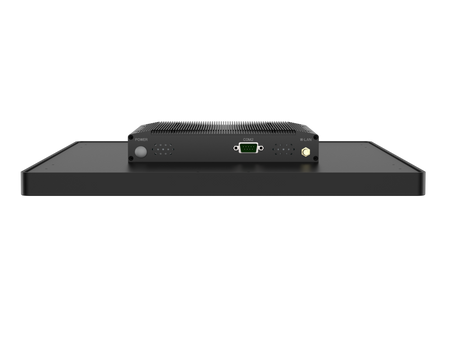

External Connectors

1x 9-36V DC-In (screwable)
1x W-LAN antenna connector (RP-SMA male)
2x USB 2.0
2x USB 3.0
1x HDMI
1x DP
1x Audio-In / Out (Realtek® ALC897 Audio CODEC)
1x SIM-card slot
1x SD-card slot
2x Serial Port RS232 (RX / TX only)
2x Ethernet Network (10/100/1000 Mbit/s, 1 PoE, Realtek® 8111H)



Expansion Slots

N/A



Included in the delivery

Power Supply (see Power section)
Short Installation Manual
W-LAN antenna (RP-SMA female)
Opcionais
Stand em Metal VESA 75 / 100
35.00€

Stand em Metal VESA 75 / 100

Suporte Wallmount VESA 75 / 100
29.00€

Wallmount VESA 75 / 100

Modulo de ignição
79.50€

Modulo de ignição

Grampos
32.50

Grampos de fixação
