• Intel® Braswell N3160
  • DDR3L SO-DIMM 8 GB
  • Intel AES-NI / TPM2.0 (opcional)
  • HDMI / VGA
  • 1U 250W FLEX
com IVA
608.85€

sem IVA
495.00€
Sku: HBJC150F792-3160R
Type de produit: PCs Rackmount
Vendeur: Jetway

HBJC150F792-3160R

CPU: N3160

HBJC150F792Z-3160R

CPU: N3160, WIFI

Rackmount PC com Intel® Braswell N3160, DDR3L até 8GB, 1* HDMI, 1* VGA

1. Intel® Braswell N3160 SoC Processor (TDP 6W)
2. Support 2* Dual-channel DDR3L 1600MHz SO-DIMM up to 8 GB
3. Support Intel AES-NI and TPM2.0 (option) to secure customers’data
4. Support two displays with 1* HDMI, 1* VGA
5. 1U 250W FLEX POWER

Caraterísticas

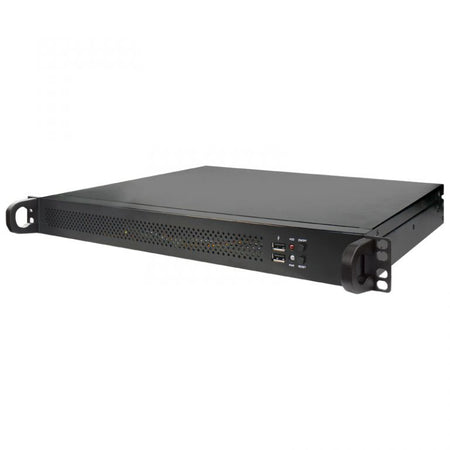

I/O Frontal

 HBJC150F792-3160R_Front_diagram

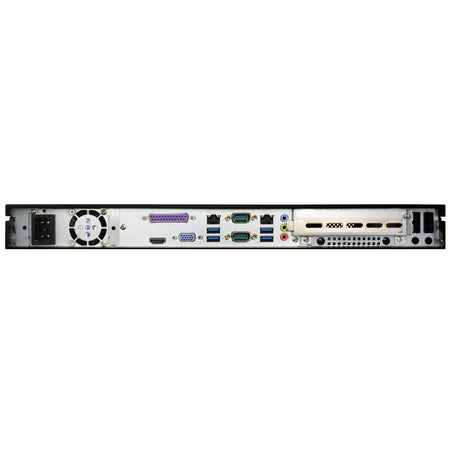

I/O Traseiro

 HBJC150F792-3160R_Rear_diagram

Dimensões

HBJC150F792_size
Especificações

Model

– HBJC150F792-3160R (CPU: N3160)
– HBJC150F792Z-3160R (CPU: N3160, Wifi)

CPU/Chipset

– Intel® Braswell N3160 SoC Processor (TDP 6W)

BIOS

– AMI 64Mb Flash ROM

Memory

– 2* Dual CH DDR3L 1600MHz SO-DIMM up to 8GB

Network

– 2* Realtek RTL8119I GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* HDMI (Max. resolution:3840×2160@30Hz)
– 1* VGA (Max. resolution:1920×1080@60Hz)
– Support Dual Displays

Storage

– 1* M.2 M-Key (2242/2260, W/SATA interface)
– 1* 2.5” SATAIII (6 Gb/s) internal drive bay

Expansion

– 1* PCIe
– 1* Mini-PCIe (full size)

Rear Panel I/O

– 1* Power SW, 1* Reset SW
– 1* Power LED, 1* HDD LED
– 1* USB2.0
– 3* USB3.0
– 1* HDMI
– 1* VGA
– 1* LPT
– 2* RJ45
– 1* Line-in, 1* Line-out, 1* MIC
– 2* COM ports (COM1 supports RS232/422/485)
– 2* Antenna holes (Optional)
– 1* AC input

Front Panel I/O

– 1* Power button, 1* Reset button
– 1* Power LED, 1* HDD LED
– 2* USB2.0

Internal Connector

– 1* SIM Card slot

Power Source

– MB : 24pin ATX
– System : 1U 250W FLEX Power

Compliance

– CE, FCC, RoHS, REACH Ready

Dimensions

– System: 430 (W) x 252 (D) x 44 (H) mm
– Box: 530 (W) x 353 (D) x 142 (H) mm

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C

OS Support

– Windows 10, Linux

Warranty

– 2 Year limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.



Part Number

  Description



 HBJC150F792Z-3160R

 Change according to shipping area

 Power cord

 LCSCJC150-F

 JC150 1U CASE screw package

 G01-SATA3-BL-1F

 SATA Cable L=50cm
