com IVA
713.40€

sem IVA
580.00€
Sku: MISCOM7209-3GF
Type de produit: Switches Gerenciáveis
Vendeur: MAIWE

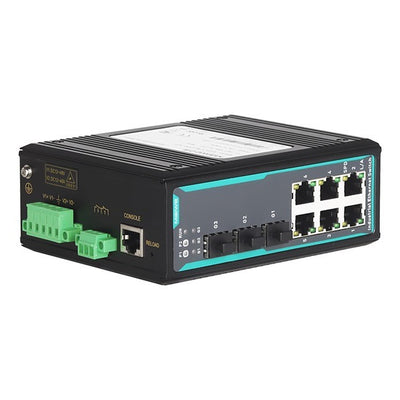

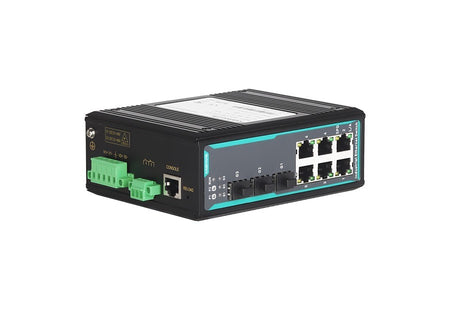

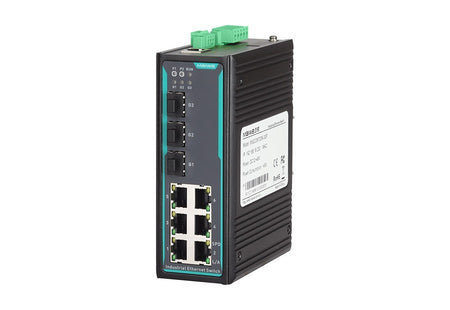

MISCOM7209-3GF

3-port Gigabit SFP + 6-port 10/100M T(x) Layer 2 Din-Rail Managed Industrial Ethernet Switch

  • Support MW-Ring with the Recovery Time<20ms
  • Support Static Multicast/IGMP Snooping
  • Support Broadcast Storm Suppression/Rate Limit
  • Support RMON and private MIB
  • Support IEEE802.1p/IEEE 802.1Q VLAN/QoS/Tos DiffServe/Port Link Aggregation/Port Mirroring

Caraterísticas

MISCOM7209 Gigabit Managed Din-Rail Industrial Ethernet Switch provides a high-end industrial Ethernet communication solution for flexible and variable industrial applications, breaking through the 100M backbone network communication bottleneck and making industrial communication smoother, more reliable and faster. MISCOM7209 network management Gigabit industrial Ethernet switch has 6 adaptive 100M electrical ports and 3 Gigabit SFP ports.

Features and Benefits

-3 Gigabit SFP ports + 6x10/100BaseT(x) ports

-Support MW-Ring with the recovery time<20ms

-Supports real-time broadcast storm monitoring control/rate limit

-Support static multicast/dynamic IGMP snooping/multicast traffic filtering

-Support port VLAN/IEEE 802.1q VLAN/QoS/port aggregation/port mirroring/IEEE802.1p/ToS DiffServe

-Embedded web server for remote management and configuration via browser

-Support RMON and private MIB table

-Support power-down status relay alarm output

-Support industrial grade dual power input backup

Especificações

Software performance

Redundancy protocol

Support MW-Ring and the recovery time<20ms
Support STP/RSTP

Multicast routing

Support IGMP snooping/ IGMP v1/v2

Support GMRP
Support static multicast

Management and maintenance

Support Console and Web management methods
Support SNMPv1/v2c
Support unified PC software management

Technical specifications

Ethernet Standard

IEEE802.3-10BaseT

IEEE802.3u-100BaseTX/100Base-FX

IEEE802.3x-Flow Control

IEEE802.3z-1000BaseLX
IEEE802.1D-Spanning Tree Protocol

IEEE802.1w-Rapid Spanning Tree Protocol

IEEE 802.1s-MSTP

IEEE802.1Q -VLAN Tagging

IEEE802.1p -Class of Service
IEEE802.1X-Port Based Network Access Control

Switch properties

Priority queue

4

VLAN ID

1-4096

IGMP Groups

256

MAC table

8k

Switch Bandwidth

7.6Gbps

Switch Latency

<5μs

Interface

Gigabit ports

Port numbers:3

Connector: SFP for fiber port(LC, single or multi-mode) or 10/100/1000M adaptive module

Baud rate:1000Base-LX(fiber port), 10/100/1000M auto-negotiation 1000Base-Tx

10/100Base port

Port numbers:6

Connector:9 fixed FX(single/multi-mode; SC/FC/ST) or RJ45 port

Baud rate: 100Base-FX; auto-negotiation 10/100M copper port

Console port

RS232/RJ45

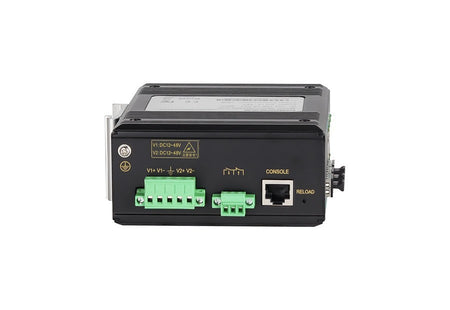

Terminal block for power input

5.08mm terminal block

Terminal block for relay alarm

5.08mm terminal block,1A@24VDC

Communication distance

Twisted-pair

100m(CAT5/CAT5e cable)

Multi-mode fiber

Gigabit multi-mode: 850nm 550m;

10/100Base multi-mode:1310nm 2km

Single mode fiber

Gigabit single mode: 1310nm 20km;

10/100Base single mode:1310nm 20/40km;1550nm 60/80km

LED indicator lights

Front panel LED lights

Port light: LINK/ACT; SPEED; Gx

Running light: RUN

Power LED: PWR1/PWR2

Power requirements

Power input

DC9-60V

AD220V

Full-load consumption

<6W@24V

Overload protection

support

Inversed protection

support

Redundancy protection

support

Working environment

Operating Temperature

-40°C~85°C

Storage temperature

-40°C~85°C

Ambient Humidity

5%~95%( non-condensing)

Physical characteristics

Shell

IP40 protection, aluminum alloy shell

Installation

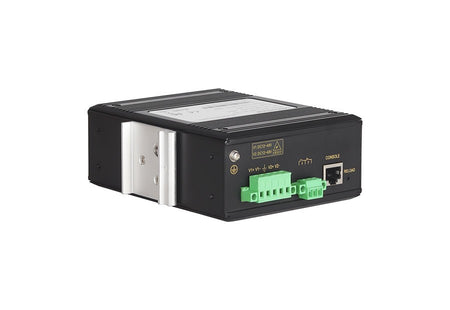

35mm din rail-mounted installation

Dimension

140mmx54mmx110mm

Industry standard

EMC

EN61000-4-2(ESD), Level 4

EN61000-4-3(RS), Level 4

EN61000-4-4(EFT), Level 4

EN61000-4-5(Surge), Level 4

EN61000-4-6(CS), Level 4

EN61000-4-8, Level 5

Impact

IEC60068–2-27

Falling

IEC60068-2-32

Shock

IEC60068-2-6

Warranty

Warranty period

5 Years

Certification

CE, FCC, RoHS

Downloads
Order Information

Ordering Information

MISCOM7209-3GF

3-port Gigabit SFP + 6-port 10/100Tx, redundant 9-60V power supply

MISCOM7209-3GF-AD220

3-port Gigabit SFP + 6-port 10/100Tx, AC85-264V/DC110~370V isolated power supply
