Sku: LMP-0600-24-V2
Type de produit:
Switches Gerenciáveis POE+ (porta 30W)
Vendeur:
Antaira
LMP-0600-24-V2
LMP-0600-24-T-V2 (EoT: -40~75C)

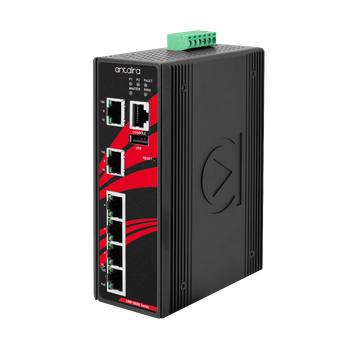

6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, with 4*10/100Tx (30W/Port) and 2*10/100Tx, 12~55VDC Power Input; Version 2 Hardware
Caraterísticas
Especificações
Downloads
Incluído
Caraterísticas
Antaira Technologies’ LMP-0600-24-V2 is a 6-port industrial PoE+ managed Ethernet switch embedded with 4*10/100Tx Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port. The LMP-0600-24-V2 is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The LMP-0600-24-V2 is IP30 rated and DIN-rail mountable. There are also a standard operating temperature model for a standard temperature range (STD: -10°C to 70°C or EOT: -40~75C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.
Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.
- 5-Year Warranty
- Configuration: Web Console, Serial, CLI Command
- Housing: Metal IP 30 rated; DIN-Rail and Wall Mount Support
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Operating Temperature - STD: -10~70C / EOT: -40~75C
- PoE Ping Alarm Function for PoE Ports Power Recycle
- Redundant Power Input Design - 12~36VDC
- Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 2*10/100Tx Fast Ethernet Ports
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- System Warning Setting for Automatic Warning through E- Mail
Especificações
| Humidity | 5 to 95%, (non-condensing) |
| Back Plane | 1.2Gbps |
| Certifications | FCC, CE |
| Dimensions | 54 x 142 x 99 mm (W x H x D) |
| EMI | FCC Part 15 Subpart B Class A, CE EN55022/EN61000-6-4 Class A |
| EMS | CE EN55024/EN61000-6-2 Class A, IEC61000-4-2,3,4,5,6,8 |
| Ethernet Port | 6*10/100Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Free Fall / Shock / Vibration | IEC60068-2-32/IEC60068-2-27/IEC60068-2-6 |
| Housing | Metal, IP30 protection |
| Input Voltage | 12~36VDC Redundant Input |
| Mounting | DIN-Rail; Wall-mount (optional) |
| Power Consumption | 7.5W |
| Operating Temperature | STD: -10° to 70°C / EOT: -40° to 75°C |
| Storage Temperature | -40°~85°C |
| Warranty | 5 Years |
Downloads
Incluído
- 1 - LMP-0600-24-V2
- 1 - Quick Installation Guide
- 1 - RJ45 dust cover set
- 1 - RJ45 to DB9 Serial Console cable
- 1 - Wall mounting bracket set with screws
- 1 - DC cable
