sem IVA
FT215I5CAPOB
- Intel® Core™ i5-7300U
- 8GB RAM, SSD 128GB Industrial
- Suporta Win10, Linux (32Bit, 64Bit)
- Tratamento de superfície anti-reflexo
- Vidro de cobertura de 1,1 mm com dureza de superfície 7H
- Painel Multi Touch Capacitivo de 10 toques
- Protecção IP65 frontal patenteada com selo de silicone
- Optically bonded
- Suporta grampos de fixação
- W-LAN integrada
- Garantia de 2 anos

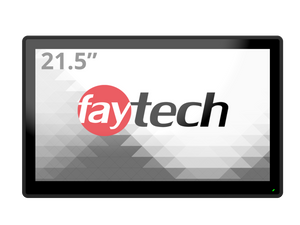

| Product name | 21.5" Capacitive Touch PC (i5-7300U) |
| Article code / EAN number | FT215I5CAPOB / 6920734002153 |
| CPU | Intel® Core™ i5-7300U Processor Kaby Lake |
| Graphic GPU | Intel® HD Graphics |
| Audio | Realtek ALC3236 Audio CODEC |
| Memory | 8GB DDR4 non-ECC (max. 16GB) |
| Storage | faytech Industrial 128GB SSD |
| Network | 2x Realtek PCIe GB LAN 8111G (1000Mbps), M.2 E-key Wi-Fi module |
| Driver Support | Win10; Linux; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
| IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 21.5/54.69 |
| Display active screen size (cm) | 47.70×26.80 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| External maximum showable resolution - DP | 1920×1200 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast | 1000:1 |
| Typical reaction time Tr/ Tf (ms) | 1.5/3.5 |
| Visual Angle horizontal/vertical (°) | 170/160 |
| Backlight / Backlight Lifetime (hours) | LED / 40,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etched) |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 5.20 |
| Gross weight (kg) | 7.80 (incl. cartonage) |
| Housing material | Rubber front case, Aluminum IPC back case |
| Housing (mm) L × W × H | 532.0 × 331.0 × 71.0 |
| Cut-out for clamp supports (mm) L × H | 508.0 × 307.0 |
| Amount of clamps required | 6 |
| Mounting | VESA 100 |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 42 |
| Stand-By Consumption (W) | <1 |
| 1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory |
| 3x RS232/RS485 COM connectors, switchable in BIOS |
| 2x LCD Backlight control/LCD panel voltage box |
| 1x 5V/12V SATA power connector |
| 1x 12V DC power connector (2-pin) |
| 1x 4-pin SATA power connector |
| 1x S/PDIF output pin header |
| 1x 8-bit Digital I/O interface |
| 1x Line-out / Mic-in header |
| 1x Front Panel box header |
| 1x Serial ATA 6Gb/s |
| 1x MIPI CSI connector |
| 1x LVDS box header |
| 2x USB 3.0 box header |
| 1x 12V DC-In (screwable) |
| 1x HDMI |
| 1x DisplayPort |
| 2x USB 3.0 ports |
| 2x USB 2.0 ports |
| 1x MIC-In & EAR-Out |
| 1x 8-PIN DIO as RJ45 |
| 1x W-LAN antenna connector (RP-SMA male) |
| 2x COM port Full-PIN - RS232/485; 5V/12V |
| 2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V |
| 2x 10/100/1000Mbit RJ45 Ports |
| 1x S/PDIF-Out (1x Cinch, 1x Torx module) |
| 1x 2.5" module slot, changeable SSD included |
| 1x mSATA full size (occupied by SSD) |
| 1x M.2 E-Key Slot (occupied by Wifi card) |
| 1x SATA connector |
| 1x External PCIe x1 Straddle connector |
| Power Supply (see Power section) |
| W-LAN antenna (RP-SMA female) |
| Short Installation Manual |
| Standard Stand |

Modulo de ignição

Grampos de fixação
Sistemas Operativos Microsoft para adicionar ao seu Panel PC

SO Win 10 IoT Enterprise 2019 LTSB (Entry)
Chave de licença + instalação (OEM)
* Deve ser solicitada junto com a mesma quantidade de equipamentos
Entrega Normal | 5 a 7 dias úteis
Entrega Urgente | 3 a 5 dias úteis
*salvo rutura de stock
Trabalhamos intensamente cumprir os prazos de entrega anunciados. No entanto, enfrentamos uma escassez global relativamente a alguns componentes e fabricantes.
Em caso de dúvidas ou preocupações, entre em contacto connosco para garantir o tempo de entrega.
Poderemos aconselhar sobre a disponibilidade de hardware alternativo e fornecer recomendações de componentes disponíveis para opções de envio mais rápidas.
