Sku: JNC8J-I3455
Type de produit: EOL
Vendeur: Jetway

JNC8J-I3455

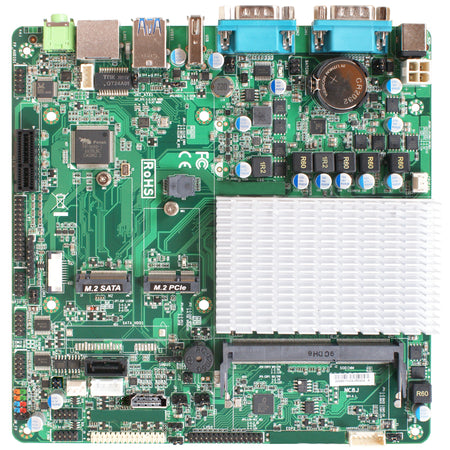

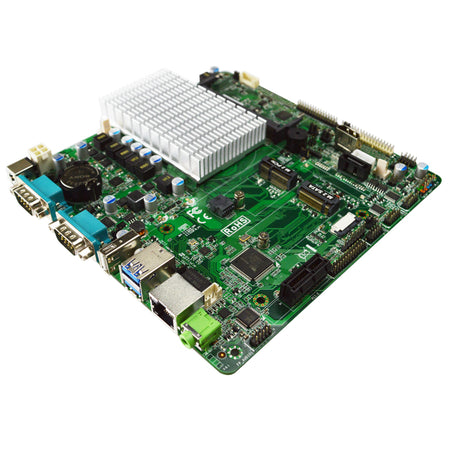

Motherboard Slim Mini-ITX com Intel® Apollo Lake, DDR3L até 8GB, 12VDC.

  • Intel® Apollo Lake Soc  J3455
  • 1* SO-DIMM DDR3L 1866MHz até 8GB
  • 1* PCIe x1, 1* M.2 E-key, 1* M.2 M-key
  • 4* COM (COM1/2/3 support 5/12V TTL), 2* USB3.0, 5* USB2.0, 1* GbE
  • Suporta HDMI + LVDS + eDP
  • Slim design, formato Mini-ITX
  • 12V DC-in Onboard
Caraterísticas

Diagrama

JNC8J-I3455_diagram

Dimensões

JNC8J-I3455_size
Especificações

Model

– JNC8J-I3455
– JNC8J-I3455D (Onboard 32G eMMC)

Form Factor

– Mini-ITX (6.69-in * 6.69-in, 170 * 170mm)

Processor System

– Onboard Intel® J3455 1.5GHz (Turbo 2.3GHz) Quad Cores CPU
– Apollo lake J3455 SoC chipset
– Onboard 32G eMMC (JNC8J-I3455D)
– AMI 128M Flash ROM

Expansion Slot

– 1* M.2 (E Key)
– 1* M.2 (M key, 2242 for SSD)
– 1* PCIe x1

Memory

– 1* DDR3L 1866MHz SO-DIMM up to 8GB

Graphics

– Intel® HD Graphics 500, shared memory
– 1* eDP (Max Resolution: 4096×2160 @60Hz)
– 1* LVDS (Max Resolution: 2560×1600@60Hz, Co-lay eDP2)
– 1* HDMI1.4 (Max Resolution: 3840×2160@30Hz, Co-lay eDP3)
– Support Triple Displays

Ethernet

– 1* Realtek® RTL8111G GbE

Audio

– HD audio: Realtek ALC662
– FP_AUDIO, 3W Amplifier Speaker out

SATA

– 1* SATAIII (6.0Gb/s)

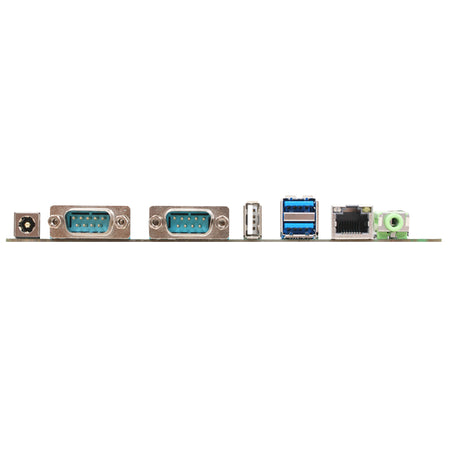

Rear I/O

– 1* RJ45
– 2* USB3.0
– 1* USB2.0
– 1* Line-out
– 2* COM (RS232, support 5/12V TTL)
– 1* DC-in

Internal Connector

– 4* USB 2.0
– 1* PS/2
– 1* LVDS / Inverter (Co-lay eDP2)
– 1* eDP
– 1* HDMI (Co-lay eDP3)
– 1* RS232/422/485 supports 5/12V TTL (COM3)
– 1* RS232 (COM4)
– 1* M.2 E-key (2230)
– 1* M.2 M-key (2242, SATA)
– 1* Parallel
– 1* GPIO (8bit, 5V)
– 1* Audio Header
– 1* speaker (3W Amplifier)
– 1* SMBUS
– 1* AT mode

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (0 ~ 255sec)

Power

12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: -10°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux

Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
