Sku: JNC9L-AH110
Type de produit: EOL
Vendeur: Jetway

JNC9L-AH110

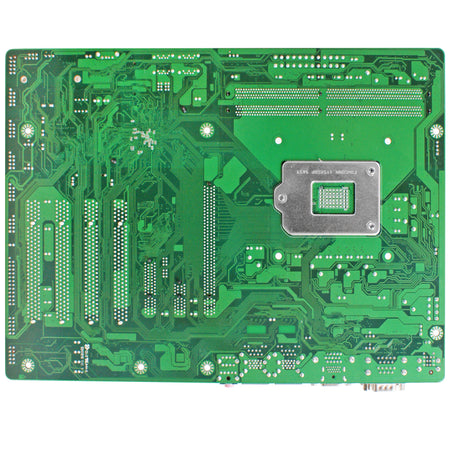

Motherboard ATX, Intel® Skylake H110 Chip, DDR4 até 32GB, ATX power input

  • Intel® LGA1151 Socket Core i3, i5, i7 Pentium Processor
  • DDR4 2133MHz SO-DIMM up to 32 GB
  • 1* Intel® I219LM GbE, 1* Intel® i211AT GbE
  • Support HDMI/VGA, 2* External COM, 4* Internal COM (COM1 support RS232/422/485, COM1/2/3/4 Support 5V/12V TTL)
  • 4* USB3.0, 5* USB2.0 (internal USB2 Support Dongle)
  • 1* PCIe x16 Slot, 1* PCIe x4 Slot, 1* PCIe x1 Slot, 4* PCI Slots, 1* M.2 socket (Support SSD, 2242/2280)
  • Support TPM2.0 / Audio Codec (optional)
  • ATX power
Caraterísticas

Diagrama

JNC9L-AH110_diagram

Dimensões

JNC9L-AH110_size
Especificações

Model

Model No.

– JNC9L-AH110 (with Audio Codec)
– JNC9LT2-AH110 (with TPM2.0, Audio Codec)
– JNC9LT2A-AH110 (withTPM2.0)
– JNC9LTA-AH110

 Form Factor

Dimensions

– ATX (305 * 220mm)

 Processor System

CPU

– Intel® LGA1151 Series Processor (Max. 100W)

Core Number

– (by CPU)

Max Speed

– (by CPU)

L2 Cache

– (by CPU)

Chipset

– H110 chipset

BIOS

– AMI 128M Flash ROM BIOS

 Expansion Slot

Expansion

– 4* PCI
– 1* PCIe x16 slot
– 1* PCIe x4 slot
– 1* PCIe x1 slot
– 1* M.2 (M key, 2242/2280)

 Memory

Technology

– Dual CH DDR4 2133MHz DRAM

Max.

– 32GB

Socket

– 2 * Long-DIMM

 Graphics

Controller

– Intel® HD Graphics

VRAM

– Shared Memory

VGA

– 1 (Max. Resolution: 1920×1200@60Hz)

HDMI 1.4

– 1 (Max. Resolution : 4096×2304@24Hz)

Multi Display

– Dual Displays

 Ethernet

Ethernet

– 10/100/1000 Mbps

Controller

– Intel® I219LM + i211AT GbE

Connector

– 2 * RJ 45

 Audio

CODEC

– HD Audio : Realtek ALC888S

Channel

– Line-In, Line-Out, MIC

 SATA

Max Data Transfer Rate

– 4 * SATAIII (6.0Gb/s, SATA4 Co-lay M.2)

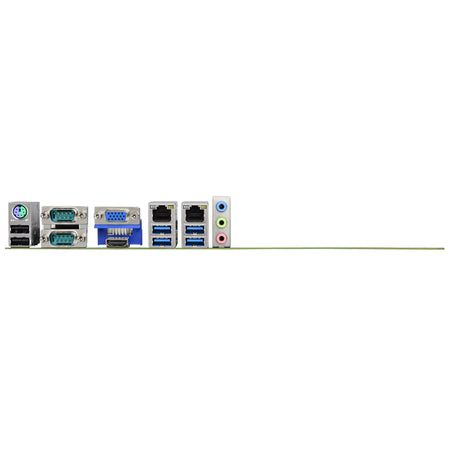

 Rear I/O

VGA

– 1

HDMI

– 1

Ethernet

– 2

USB

– 4* USB3.0, 2* USB2.0

Audio

– 1 (Line-in, Line-out, MIC)

Serial

– 2(COM1 SupportRS232/422/485, 5/12V TTL)

PS/2

– 1

 Internal Connector

USB

– 3* USB2.0

Serial

– 4 (COM3/4 Support 5/12V TTL)

SATA

– 4* SATAIII (6.0Gb/s)

Parallel

– 1

M.2

– 1 (M key 2242/2280)

GPIO

– 1 (8-bit)

Chassis intrusion

– 1

Audio Header

– 1

AT mode

– 1

 Watchdog Timer

Output

– From Super I/O to drag RESETCON#

Interval

– 256 segments (10sec ~ 255min)

 Power Requirements

Input PWR

– ATX power in

Power On

AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Certifications

Certifications

– CE, FCC, RoHS, REACH

 Environment

Temperature

– Operating: 0°C ~ 60°C

– Storage: -20°C ~ 70°C

 Warranty

Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
