Sku: Nuvo-7162GC
Type de produit:
GPU Edge box PC
Vendeur:
Neousys

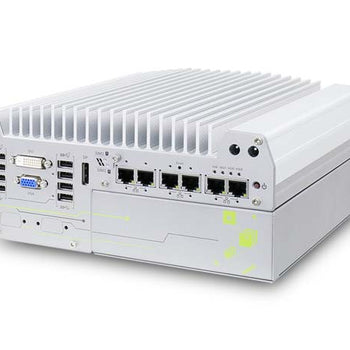

Nuvo-7162GC
Ruggedized GPU Computing platform supporting NVIDIA® Quadro P2200 and Intel® 9th/8th-Gen Core™ processor
- Supports NVIDIA® Quadro P2200 GPU
- -25°C to 60°C wide-temperature operation, no GPU throttling up to 54°C
- Intel® 9th/ 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
- 6x GigE ports, 802.3at PoE+ option available (ports 3~6)
- M.2 2280 M key NVMe (Gen3 x4) socket for fast storage access
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- Accommodates two 2.5" SATA HDD/SSD with RAID 0/1 support
- MezIO™ interface for easy function expansion
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
Nuvo-7162GC series systems are ruggedized AI inference platforms supporting an NVIDIA® Quadro P2200 that offers a longer product life cycle for industrial AI inference applications such as, machine vision, automation and video analytics. Operating with NVIDIA® Quadro P2200, Nuvo-7162GC delivers 3.8 TFLOPS GPU computing power for real-time inference. In addition, it offers a 50% CPU performance enhancement compared to the previous generation.
Thanks to Neousys' patented Cassette and inventive ventilation mechanism design, the system fan directs ambient cool air directly onto the fan of the GPU card to significantly increase the heat-dissipating efficiency for Quadro P2200. This cooling design guarantees non-throttling GPU performance at up to 54°C and operating temperature up to 60°C for the whole system.
Nuvo-7162GC series systems are equipped with an abundance of cutting-edge I/O functions. It has an M.2 NVMe interface for fast storage access supporting over 2000 MB/s read/ write speeds. There are also 6x GbE ports and 8x USB3.1 ports for image data acquisition. Moreover, it supports MezIO interface for I/O expansion.
By supporting Quadro P2200, Nuvo-7162GC series systems offer superior system longevity so users need not worry about the frequent change of GPU generation. Nuvo-7162GC is the ideal ruggedized inference platform for industrial edge AI applications.
■ NEOUSYS MARKETING TEAM
Especificações
| System Core | |
|---|---|
| Processor | Supporting Intel® 9th/ 8th Gen Core™ CPU (LGA1151 socket, 65W/35W TDP) - Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T - Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T - Intel® Core™ i3-9100E/ i3-9100TE/ i3-8100/ i3-8100T |
| Chipset | Intel® Q370 Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet Port | 6x Gigabit Ethernet ports by 1x I219 and 5x I210 |
| POE+ | Optional IEEE 802.3at PoE+ PSE for port 3 ~ port 6 100 W total power budget |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Internal Expansion Bus | |
|---|---|
| PCI/PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signal in Cassette for installing Quadro P2200 GPU |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) |
| M.2 | 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| Storage interface | |
|---|---|
| SATA HDD | 2x internal SATA port for 2.5" HDD/SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.5 Kg |
| Mounting | Wall-mount mounting bracket |
| Environmental | |
|---|---|
| Operating temperature |
With 35W CPU and Quadro P2200 -25°C ~ 60°C ** With 65W CPU and Quadro P2200 -25°C ~ 60°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP) |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
* For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
Downloads
Opcionais
Optional IEEE 802.3at PoE+ for GbE ports 3 ~ 6
Supported MezIO™ Modules
Neousys MezIO™ module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.
(Click here for details of compatible MezIO™ modules)
Accessories
PA-280W-OW
280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; Cord end terminals for terminal block, operating temperature : -30°C to 60°C.
Damping bracket
Neousys' patented damping bracket assembly for Nuvo-7162GC
