Sku: AMOS-800-1S08A1
Tipo de Produto: EOL
Fabricante: VIA Technologies

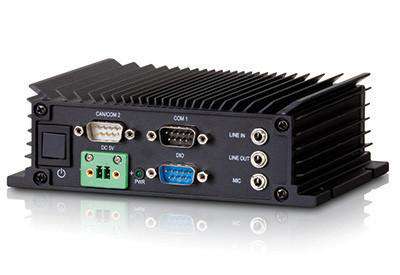

Fanless embedded Mini-PC com 1GB DDR3 SDRAM, 4GB eMMC, Mini HDMI, VGA, 3 USB 2.0, 10/100Mbps Ethernet, slot Micro SD, 2 COM, 2 CAN bus, DC-in 5V.

  • 800MHz NXP i.MX537 Cortex-A8 SoC
  • Opera numa ampla faixa de temperaturas, -40°C ~ 80°C
  • Suporte vasto I/O
  • Suporta GPIO 8-bit e CAN bus
  • Inclui Linux BSP VIA Smart ETK



VIA-AMOS-800-datasheet

Especificações:

Model Name AMOS-800
Processor 800MHz NXP i.MX537 Cortex-A8 SoC
System Memory 1GB DDR3 SDRAM onboard
Storage 4GB eMMC Flash memory
Graphics AMD Z430 GPU
2 integrated, independent 3D/2D graphics processing units
Graphics engine supporting OpenGL® ES 2.0 and OpenVG™ 1.1 hardware acceleration
Supports MPEG-2, VC-1and H.264 video decoding up to 1080p
LAN SMSC LAN8720A 10/100 PHY transceiver with HP Auto-MDIX support
Audio NXP SGTL5000 low power stereo codec
HDMI Silicon image SiI9024A HDMI transmitter
USB SMSC USB2514 USB 2.0 high speed 4-port hub controllers
CAN TI SN65HVD1050 EMC optimized CAN transceiver
Front Panel I/O 1 COM port (TX/RX)
1 COM (TX/RX) / 2 CAN bus port (supports CAN Protocol specification Version 2.0 B)
1 DIO port supports 8-bit GPIO (4 GPI + 4 GPO)
3 Audio jacks: Line-in, Line-out, Mic-in
1 2-pole Phoenix DC jack
1 Power on/off button
1 Power LED
1 Micro SD card slot
Back Panel I/O 3 USB 2.0 ports
1 Mini HDMI port
1 VGA port
1 10/100Mbps Ethernet port
1 Micro SD/eMMC boot switch
Watchdog Timer Integrated watch dog timer supports two comparison points. Each comparison point can interrupt ARM core, 2nd comparison point capable of generating external interrupts on WDOG line
Power Supply 5V DC-in (typical: 3.1W)
Operating System Android 2.3, Linux Kernel 2.6.35, WEC7
Operating Temperature Extended temperature -40~ 80°C (VGA display)
Operating Humidity 0% ~ 90% @ 45° C (non-condensing)
Vibration Loading During Operation With onboard eMMC
5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock During Operation With onboard eMMC
50G, IEC 60068-2-27, half size, 11ms duration
Bottom Opening Covers Open window with removable plate to access Micro SD slot
Dimensions 150mm(W) x 45mm(H) x 108mm(D) (5.9" x 1.8" x 4.25")
Weight 0.778kg (1.71lbs)
