• Intel Core™ 10ª geração, LG1200
  • DDR4 SODIMM até 64GB
  • Suporta NVIDIA GTX-16 até 150W
  • 1x 2.5GLAN + 2x GLAN
  • 9~36VDC
com IVA
1,451.40€

sem IVA
1,180.00€
Sku: FPC-8109-G1
Tipo de Produto: GPU Edge box PC
Fabricante: Arbor

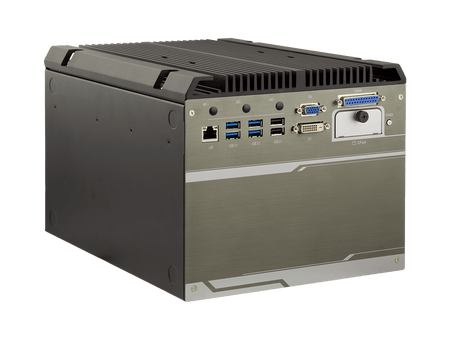

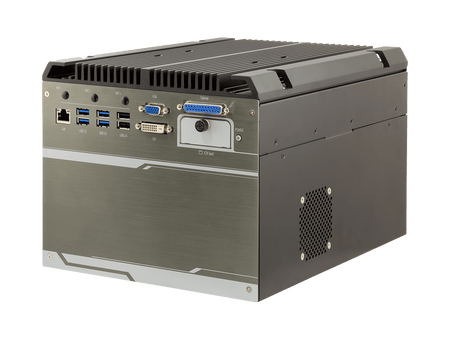

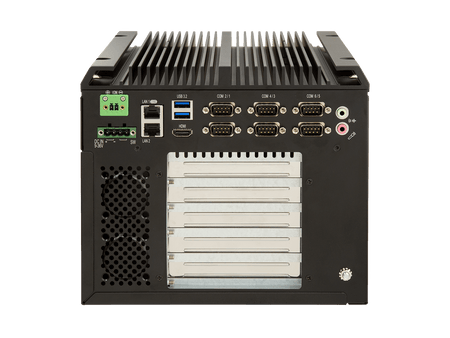

FPC-8109-G1

Box PC robusto para CPUs Intel® Core i9/ i7/ i5/ i3 de 10ª Ger., até 5x slots de expansão PCIe / PCI para NVIDIA 150W

  • Supports NVIDIA GTX-16 series up to 150W GPU
  • Wide range DC power input (9~36V)
  • Two independent displays support (HDMI x1 + VGA x 1 and DVI-D x 1)
  • Power on/off delay control / configurable ignition power control
  • TPM 2.0 support
  • 1x mPCIe for optional Wi-Fi / 3G / 4G / GPS or I/O expansion supported
  • Up to 5x expansion slot support
  • 1x M.2 E Key (2230) for Wi-Fi / BT
  • Front-accessible I/O support
  • Intel® Wi-Fi 6 AX200 support
  • Support RAID 0,1 (W480E only)
Especificações

System

CPU Intel® 10th generation Core™ i9 / i7 / i5 / i3 processor in LGA1200 socket
Memory 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 MHz SDRAM up to 64GB
Chipset Intel® H420E (W480E Optional)
Graphics Integrated Intel® HD Graphics
ATA 2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset 1 x Intel® WGI225LM 2.5GbE LAN
1 x Intel® WGI211AT GbE controller
1 x Intel® WGI219LM GbE controller (w/o iAMT, H420E) (w/ iAMT, W480E)
Watchdog Timer 1~255 levels reset

I/O Interface

Serial Port 2 x RS-232 / 422 / 485 configurable via DB-9 connectors
4 x RS-232 ports via DB-9 connectors
USB Port 6 x USB 3.2 Gen1 / 2.0 ports
2 x USB 2.0 ports
Internal USB dongle (Optional)
LAN 3 x RJ-45 ports for GbE / 2.5GbE
Video Port 1 x HDMI
1 x DB-15 female connector for Analog RGB
1 x DVI-D female connector for digital video output
* Support 2 independent displays
* Support 3 independent displays (W480E, only)
Expansion Bus 1 full-size Mini-card interconnected with SIM card for optional Wi-Fi / 3G / 4G / GPS or I/O Expansion (PCIe x1 + USB2.0)
1 x M.2 E key (2230) with PCIe x1 + USB2.0, for Wireless
4 x PCI
1 x PCIe x16 slot
Support up to 150W GPU
Selectable Port 1 x DB25 connector for DIO (8 in / 8 out) port or LPT port (either one, default is DIO)
Audio Mic-in / Line-out

Environmental

Operating Temp. -20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow, (w/ 35W TDP CPU, fanless)
-20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, (w/ 65W TDP CPU, fanless)
-20 ~ 45°C (-4 ~ 112°F), w/ GTX-1660 GPU
Storage Temp. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% @ 70°C (non-condensing)
Vibration 3 Grms / 5~500Hz / random operation w/ SSD
Shock Operating 40G (11ms), Non-operating 60G with SSD

OS Support

System Windows 10 IOT Enterprise 64-bit
Linux (Kernel: 4.9)

Storage

Type 2 x 2.5” drive bays
1 x CFast socket, can be outside accessible

Qualification

Certification CE, FCC Class A

Power Requirement

Power Input DC 9 ~ 36V input Max. 16A/300W (w/ 4-pin DC input terminal block, combining remote power on/off switch)
Ignition Switch 2-pin terminal block: IGN, GND
Power Consumption MAX. 65W (w/35W TDP CPU, w/o I/O card)
MAX. 95W (w/65W TDP CPU, w/o I/O card)

Mechanical

Construction Aluminum Alloy
Mounting Wall-mount
Weight 7.35kg (16.20Ib)
Dimensions (W x D x H) 225 x 292 x 190 mm (8.86" x 11.50" x 7.48")

Ordering Information

FPC-8109-G1 Robust Box PC with Intel® 10th Gen CoreTM i9 / i7 / i5 / i3 w/ expansion fan and PEG 8-pin power cable, supporting NVIDIA® 150W GPU
