• Intel® Core™ i7-1265UE
  • SODIMM DDR4 32GB
  • Intel® I226-LM 2.5GbE, Intel® I219-LM GbE
  • DIO 8-bit
  • DC 9~36V Input
com IVA
1,694.94€

sem IVA
1,378.00€
Sku: BOXER-6751-ADP-A3-1010
Tipo de Produto: PCs DIN Rail
Fabricante: AAEON

BOXER-6751-ADP-A3-1010

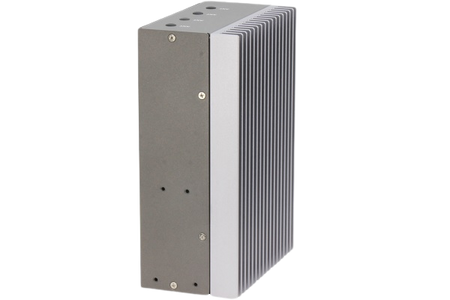

Din Rail Mount Embedded BOX PC com Intel® Core™ i7-1265UE de 12ª geração.

  • 12th Gen Intel® Core™ Processors
  • DDR4 SODIMM, Max. 32GB
  • USB 3.2 Gen 2 x 3 + USB 2.0 x 3
  • 2.5GbE x 1 (Intel® I226-LM) + GbE x 1 (Intel® I219-LM)
  • RS-232/422/485 x 2
  • HDMI x 2 Dual Display Output
  • 8-bit Digital Input and Output x 1
  • M.2 3052 B-Key for 5G
  • Onboard TPM 2.0
  • Wide 9 ~ 36V DC Input Range With Power Protection
  • Wide -20°C ~ 60°C Temperature Range
  • DIN Rail Mount Design
Caraterísticas

The BOXER-6751-ADP is designed to make Industry 4.0 integration easy. With enhanced durability through a distinct design, it is purpose-built to add value to smart factory and offshore energy applications. A small, mountable chassis houses a dense interface selection powered by 12th Gen Intel® Core™ Processors alongside an array of accessible expansion slots. This sophistication is aided by rugged features such as wide voltage input and temperature ranges to guarantee operation in the harshest of settings.

Especificações
SYSTEM
CPU Intel® Core™ i7-1265UE
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
CHIPSET Intel® SoC
SYSTEM MEMORY DDR4 SODIMM x 1, up to 32GB
DISPLAY INTERFACE HDMI 1.4b (Type-A) x 2
STORAGE DEVICE 2.5” SATA III Drive Bay x 1
M.2 2280 M-Key x 1 (PCIe [x4])
ETHERNET RJ-45 x 1 for Intel® I226-LM, 2.5GbE
RJ-45 x 1 for Intel® I219-LM, GbE

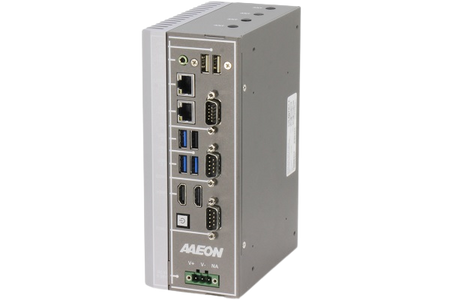

I/O USB 3.2 Gen 2 (Type-A) x 3
USB 2.0 (Type-A) x 3
DB-9 x 2 for RS-232/422/485
DB-15 x 1 for DIO 8-bit
HDMI 1.4b (Type-A) x 2
Audio x 1 for Line-Out
Power Button x 1
3-pin Terminal Block for DC-in x 1
Antenna Opening x 4
EXPANSION M.2 2230 E-Key x 1 (Wi-Fi/BT)
M.2 3052 B-Key w/ SIM x 1 (LTE/5G)
M.2 2280 M-Key x 1 (NVMe)
INDICATOR Power Button with LED
OS SUPPORT Windows® 10 IoT Ent LTSC
Windows® 11 PRO
Ubuntu 22.04
POWER SUPPLY
POWER REQUIREMENT DC 9 - 36V with 3-pin terminal block
MECHANICAL
MOUNTING DIN Rail Mount
Wallmount (Mounting kit is optional)
DIMENSIONS (W X H X D) 2.93” x 7.32” x 5.0” (74.3mm x 186mm x 127mm)
GROSS WEIGHT 5.3 lb (2.41 Kg)
NET WEIGHT 3.9 lb (1.77 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s AirFlow
STORAGE TEMPERATURE -40˚F ~ 176˚F (-40˚C ~ 80˚C)
STORAGE HUMIDITY 5 ~ 95% @ 40˚C, non-condensing
ANTI-VIBRATION With SSD: Random, 3 Grms, 5~500Hz
ANTI-SHOCK
CERTIFICATION CE/FCC class A
Incluído
  • BOXER-6751-ADP x 1
  • DIN Rail Kit x 1
  • Screw Package x 1
  • 3 Pin DC-In Power Connector x 1
Acessórios
1702031802 Power Cord (US type)
1702031803 Power Cord (European Type)
170203180E Power Cord (Japanese Type)
1255X00059 120W Power Adapter
