| SYSTEM | |
| CPU | Intel® Core™ i7-1185G7E Intel® Core™ i5-1145G7E Intel® Core™ i3-1115G4E |
| CHIPSET | Intel® SoC |
| SYSTEM MEMORY | DDR4 3200MHz SO-DIMM x 2, max 64GB |
| DISPLAY INTERFACE | HDMI 2.0 x 2 |

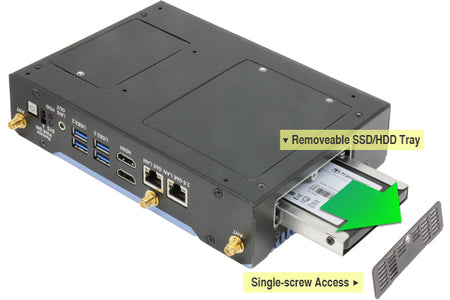

| STORAGE DEVICE | M.2 2280 M Key NVMe Slot x1 (PCIex4) 2.5" SATA Drive Bay x1 |
| ETHERNET | RJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1) |

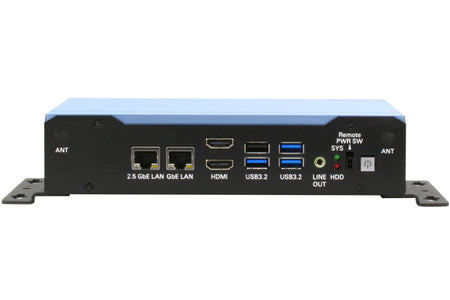

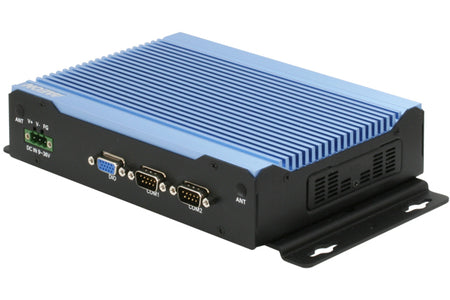

| I/O | HDMI 2.0 x 2 RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1) USB Type-A x3 for USB3.2 Gen2 USB Type-A x1 for USB 2.0 DB-9 x 2 for RS-232/422/485 DB15 x1 Male for Digital I/O 8-channel Line out x 1 3 pin 9~36V Power Input x 1 Power Button with LED x 1 |

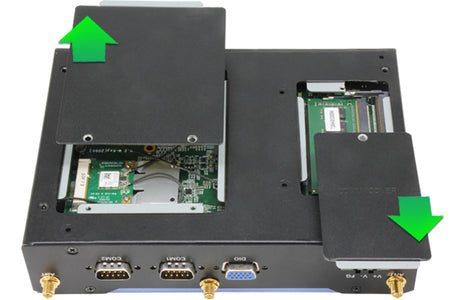

| EXPANSION | M.2 3052 B Key x 1 (for 5G module) Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB) SIM Slot x 1 |
| INDICATOR | Power / System LED |
| OS SUPPORT | Windows® 10 IoT 64-bit Window 10 Pro Linux Ubuntu 20.04.2 |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC-in 9-36V x1 for 3-pin Terminal Block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket 7.87” x 5.62” x 1.75” (200 x 143 x 44.5) w/o bracket |
| GROSS WEIGHT | 4.4 lb (2.0 kg) |
| NET WEIGHT | 3.3 lb (1.5 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| ANTI-SHOCK | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| CERTIFICATION | CE/FCC class A |
| PART NUMBER | BOXER-6643-TGU-A1-1010 | BOXER-6643-TGU-A2-1010 | BOXER-6643-TGU-A3-1010 |
|---|---|---|---|
| CPU | Intel® Core™ i3-1115G4E | Intel® Core™ i5-1145G7E | Intel® Core™ i7-1185G7E |
| LAN | 2 | 2 | 2 |
| PCH | Intel SoC | Intel SoC | Intel SoC |
| USB | USB 3.2 Gen2 x 3 USB 2.0 x 1 |
USB 3.2 Gen2 x 3 USB 2.0 x 1 |
USB 3.2 Gen2 x 3 USB 2.0 x 1 |
| RS232/422/485 | 2 | 2 | 2 |
| STORAGE | -M.2 2280 M Key NVMe Slot x1 (PCIex4) -2.5" SATA Drive Bay x1 |
-M.2 2280 M Key NVMe Slot x1 (PCIex4) -2.5" SATA Drive Bay x1 |
-M.2 2280 M Key NVMe Slot x1 (PCIex4) -2.5" SATA Drive Bay x1 |
| DISPLAY | HDMI x 2 | HDMI x 2 | HDMI x 2 |
| EXPANSION | -M.2 3052 B Key x 1 (for 5G module) -Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB) -SIM Slot x 1 |
-M.2 3052 B Key x 1 (for 5G module) -Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB) -SIM Slot x 1 |
-M.2 3052 B Key x 1 (for 5G module) -Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB) -SIM Slot x 1 |
| MOUNTING | Wallmount | Wallmount | Wallmount |
| POWER | 9~36V DC in | 9~36V DC in | 9~36V DC in |
| OPERATION TEMP | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| 125590120B | 120W Power Adapter |
| 1702031802 | Power Cord (US) |
| 1702031803 | Power Cord (EU) |
| 170203180E | Power Cord (JP) |
