PB-4600J-SA

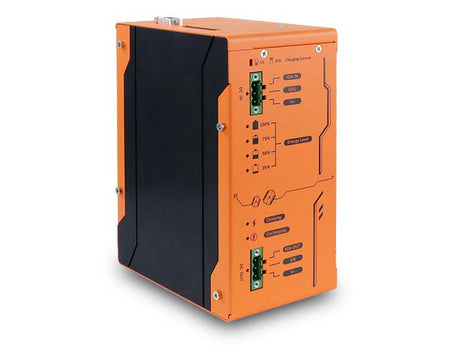

4600 w.s Standalone Intelligent Supercapacitor-based Uninterruptible Power Backup Module
- Universal standalone power backup module compatible with all box-PCs
- Supercapacitor-based, -25 to 65°C wide temperature operation
- 4600 watt-second energy capacity
- Maximum 180W output power for the connected back-end system
- Over 10 years lifespan, and 500,000 charging/ discharging cycles
- Patented CAP energy management technology*
- Extending back-up time in the event of an unforeseen power outage
- Monitoring energy and power consumption to extend operation time for safe system shutdown
- Versatile operating mode
- Normal backup mode
- Ignition control mode for standard box-PC and in-vehicle controller
- EN50155 certificate
- *R.O.C. Patent No. I598820
Especificações
Downloads
PB-4600J-SA is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25 to 65°C, and have extremely high durability lasting over 10 years.
PB-4600J-SA is composed of four 370F/ 3.0V supercapacitors, which offers much longer lifespan than its 2.7V counterpart, and stores 4600 watt-second energy to offer extra extended operation time to backup your system. Thanks to Neousys' patented CAP energy management technology, It can reliably supply 180W power to the back-end system and automatically manage boot and shutdown without installing additional drivers/ software. In addition to UPS-like power backup mode, it also offers two advanced ignition control modes for in-vehicle usage. PB-4600J-SA can work with either standard box-PC or in-vehicle controller to provide stable power supply and execute user-configurable power-on/ power-off delay according to IGN signal input.
Featuring various modes, automatic shutdown control and up to 180W output power, PB-4600J-SA can work with most off-the-shelf box-PCs. And with properties such as maintenance-free energy storage and uninterruptible power supply, PB-4600J-SA can prevent the connected back-end system from data loss during power outage in harsh industrial environments!
■ NEOUSYS MARKETING TEAM
Daisy-Chainable
Rugged Wide-temperature Operation
Especificações
upercapacitor Configuration | |
---|---|
Composition | 4x 370F, 3.0V supercapacitors |
Capacity | 4600 watt-second |
Expected lifespan | >10 years* |
Cycle life | 500,000 charging/ discharging cycles* |
Power Specification | |
---|---|
Input Voltage | 12~ 35VDC |
Input Connector | 1x 3-pin pluggable terminal block (V+, GND, IGN_IN) |
Output Voltage | Charge mode: DC_IN bypass (DC_OUT = DC_IN) Discharge mode: 12 or 24V** |
Output Power | Maximum 180W output |
Output Connector | 1x 3-pin pluggable terminal block (V+, GND, IGN_OUT) |
I/O Interface | |
---|---|

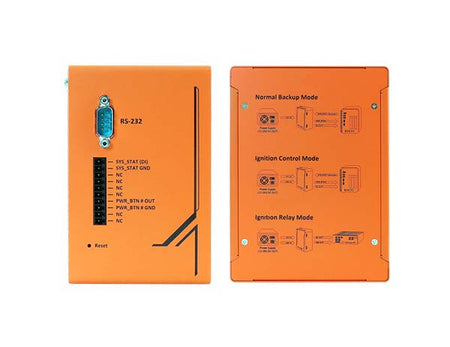

COM Port | 1x DB9 for 3-wire RS-232 |
Iso. DIO | 1x 10-pin pluggable terminal block for - PWR_BTN# output - SYS_STAT input |
Mechanical | |
---|---|
Dimension | 82.5mm(W) x 175.2mm(H) x 128.2mm(D) |
Weight | 1.68kg |

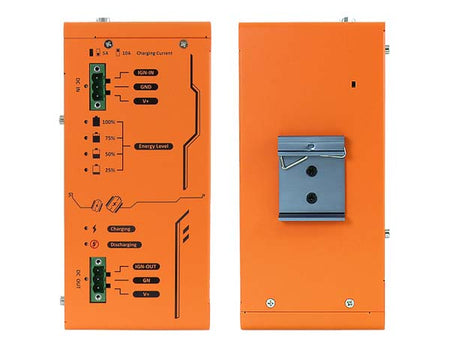

Mounting | DIN-rail mounting and wall-mounting |
Environmental | |
---|---|
Operating Temperature | -25°C ~ 65°C -40°C ~ 85°C with reduced energy capacity |
Storage Temperature | -40°C ~ 85°C |
Vibration | Compliant with IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
Shock | Compliant with IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
EMC | Compliant with EN50155:2007, CE/FCC Class A, according to EN 55032 & EN 55035 |
■ Date last revised: Jul. 7, 2021
* To achieve > 10 years lifespan under 24/7 at 65°C operation, please charge PB-9250J-SA to 6525J energy level using the 4.8x SuperCAP Lifetime Extension setting (please refer to the user manual for details). Once the rated lifetime or cycle life has been reached, the capacity of supercapacitor may decrease up to 30% and ESR may increase up to 100% from initial values.** Backup time for uninterruptible operation may be reduced when sustaining a back-end system with high power consumption. Please consult with Neousys Technology if your computer accepts only constant-voltage input.
*** To ensure PB-9250J and PB-4600J's power backup operation functions as intended, please contact Neousys Technology technical support if your connecting back-end system accepts only constant voltage input.
