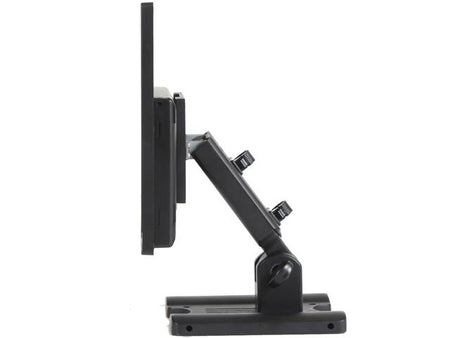

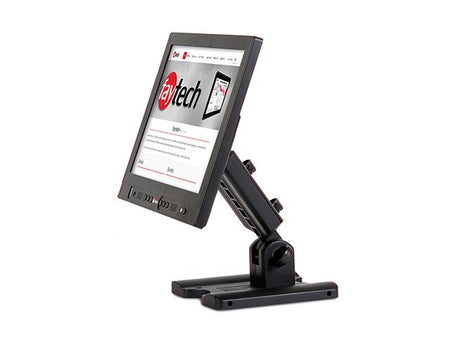

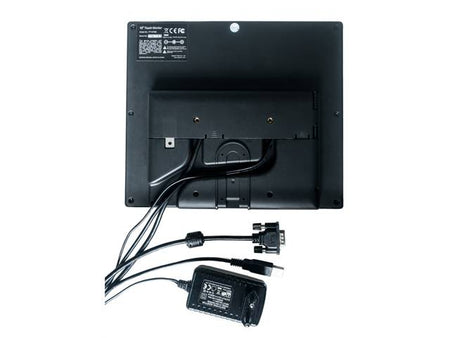

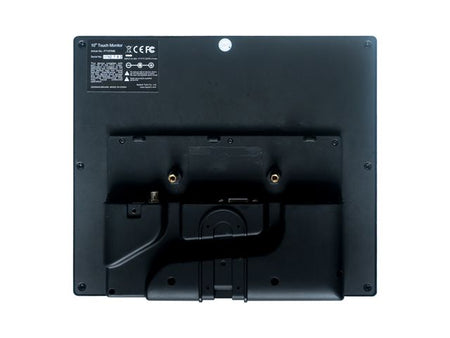

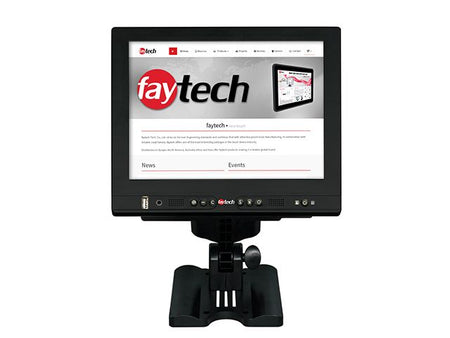

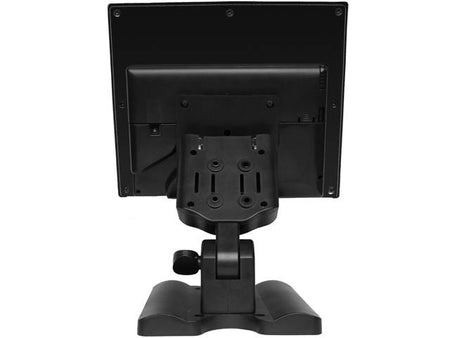

| Product name | 10" Resistive Touch Monitor |
| Model number / EAN number | FT10TMB / 6920734010110 |
| IP rating | IP40 |
| Screen diagonal (Inch/cm) | 9.7/24.64 |
| Display active screen size (cm) | 19.70×14.70 |
| Aspect ratio | 4:3 |
| Physical resolution | 1024×768 |
| Maximum showable resolution (TPCs: external) | 1920×1080 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 350 |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf (ms) | 10/15 |
| Visual Angle horizontal/vertical (°) | 170/170 |
| Backlight / Backlight Lifetime (hours) | LED / 20,000 |
| Touch Technology | 4-Wire Resistive |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | 1 million touch in 1 location |
| Surface Hardness | 3H |
| Surface Treatment | Anti-glare |
| Operating Temperature (°C) | -25 ~ +75 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 1.20 |
| Gross weight (kg) | 2.20 (incl. cartonage) |
| Housing material | Plastic |
| Housing (cm) L × W × H | 23.50 × 20.20 × 3.51 |
| Mounting | VESA 75 |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 8~36 |
| Power Consumption (W) | 8 |
| Stand-By Consumption (W) | <1 |
| Video | 1x HDMI 1.3 (incl. HDCP) |
| 1x VGA | |
| 1x Video1 | |
| 1x Video2_Backview | |
| 1x Backview-Detect | |
| 1x YpbPr | |
| Audio | 1x VGA-Audio |
| 1x Video-Audio | |
| 1x Earphone-Out | |
| Touch Connectors | 1x USB |
| 1x Serial | |
| Connectors | 1x 8~36V DC-IN |
| 1x USB (Front) |
| Power Supply (see Power section) |
| Short Installation Manual |
| Stylus |
| Remote Controller |
| Cables - VGA, USB Touch |
| Car Adapter |
| AV Molex 2.5 Connector |
| faytech FTV75PSF Stand |
| Mounting Frame |
| Mounting Rail |
| Cable Cover |
