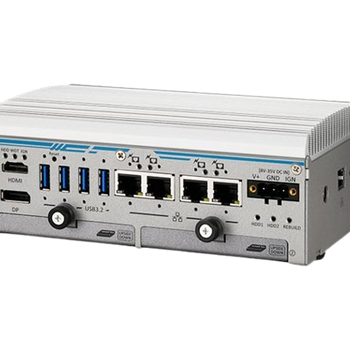

The POC-764VR is Neousys' new ultra-compact surveillance computer platform. Built on the foundation of the POC-700 series, it offers advanced RAID storage and enhanced networking capabilities, making it ideal for surveillance, security, and smart city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments.
Featuring four Gigabit PoE+ ports and an ignition function, the POC-764VR can connect up to four IP cameras for both mobile and stationary surveillance applications. Its RJ45 locking mechanism guarantees reliable Ethernet connectivity in dynamic environments. For video recording, it comes with a built-in hardware RAID controller that supports dual 2.5" HDD/SSDs in RAID 0/1 configuration, enhancing data redundancy or providing extensive storage capacity. Additionally, a 2.5 GbE port offers flexible data exchange with backbone infrastructure, while two mini-PCIe sockets support wireless WiFi, LTE/5G, or CAN bus devices.
The POC-764VR is powered by an Intel® Alder Lake Core™ i3-N305 8-core/8-thread processor with 32EUs UHD Graphics, delivering not only significant computing performance but also enabling real-time AI inference through Intel OpenVINO™. Its compact size, PoE+ capabilities, and RAID storage make the POC-764VR an ideal platform for surveillance, public safety monitoring, and asset management applications.
■ NEOUSYS MARKETING TEAM
| System Core | |
|---|---|
| Processor | Intel® Alder Lake Core™ i3-N305 processor(8C/8T, 1.8/3.8 GHz, 15W TDP) |
| Chipset | Integrated Intel® UHD Graphics with 32EUs |
| Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet | 4x Gb Ethernet ports by Intel® I350-AM4 (port #1~4) 1x 2.5Gb Ethernet port by Intel® I226-IT (port #5) |
| POE+ | IEEE 802.3at PoE+ on port #1~ 4 |
| Native Video Port | 1x DP++, Supporting 4096 x 2160 resolution 1x HDMI1.4b, Supporting 3840 x 2160 30Hz |
| Serial Port | 1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| USB | 4x USB 3.2 Gen2 ports with screw-lock |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Storage Interface | |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal) |
| SATA HDD | 2x internal SATA port for 2.5" SSD installation, supporting hardware RAID 0/ 1/ JBOD (with hot-swappable functionality in RAID1 mode only) |
| Expansion Bus | |
|---|---|
| Mini PCI-E | 2x full-size mini PCI Express socket with internal micro SIM socket |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 35V DC input with built-in ignition power control |
| Mechanical | |
| Dimension | 175.8mm (W) x 115.5mm (D) x 67.9mm (H) |
| Weight | 1.45 kg |
| Mounting | DIN-rail mount (standard) or wall-mount (optional) |
| Environmental | |
| Operating Temperature | With FAN Kit -10°C ~ 70°C Without FAN Kit -10°C ~ 55°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 / EN 55035 |
