• Allwinner® V40 QuadCore
  • 2GB DDR3 / 8GB EMMC Flash
  • 32" Capacitive Touch Panel
  • Proteção IP65
  • Modulo WLAN integrado
com IVA
2,029.50€

sem IVA
1,650.00€
Sku: FT32V40CAPOB
Tipo de Produto: Panel-PC Embedded
Fabricante: Faytech

FT32V40CAPOB

  • CPU Allwinner V40 Cortex® A7 QuadCore 1GHz
  • 2GB memória RAM; 8GB EMMC FLASH
  • Android 6.0 pré-instalado
  • Vidro frontal de 1.1mm com dureza de 7H
  • Tratamento de superfície anti-reflexo
  • Touchscreen ligado opticamente ao LCD
  • Touchscreen capacitivo de 10 pontos multi-toque
  • Painel frontal com IP65 patenteada com selo de silicone
  • W-LAN integrada
  • 2 anos de garantia
embedded android
Caraterísticas
IP Rating
Protection
IP65 Front/ IP40 Back
PC System
CPU
Arm V40
RAM
2GB
Memory
8GB Flash
Operating System
Android
LCD Panel
Display Size
32"
Display Format
16:9
Physical Resolution
1920x1080
Brightness
350 cd/m²
Optical Bonding
Optical Bonding
Coverglass
1,1mm
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
capacative
Power
Power Supply
12V
External connections
HDMI
1
VGA
0
DP
0
USB 2.0
2
USB 3.0
0
Especificações

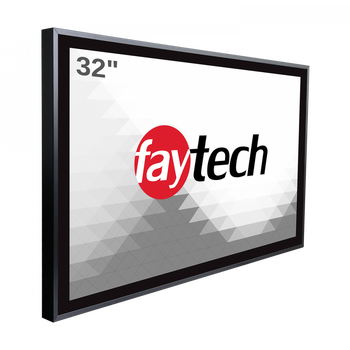

Product name  32" Embedded Touch PC
Article code / EAN number FT32V40CAPOB / 6920734000210



CPU Allwinner® V40 QuadCore
Chipset Cortex A7
Graphic GPU ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1
Audio Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier
Memory 2GB DDR3
Storage 8GB EMMC Flash
Network 10/100Mbits Network; W-LAN
OS Android 6.0



IP65 Front / IP40 Back



Screen diagonal (Inch/cm) 31.5/ 80.0
Display active screen size (cm) 69.84 x 39.29
Aspect ratio 16:9
Physical resolution 1920×1080
External maximum showable resolution - HDMI 1920×1080
Colours displayed 16.7M
Brightness (cd/m²) 350
Contrast 3000:1
Typical reaction time Tr/ Tf (ms) 6/1
Visual Angle horizontal/vertical (°) 178/178
Backlight / Backlight Lifetime (hours) LED / 30,000



Touch Technology Projected Capacitive 10-point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etching)



Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 14.50
Gross weight (kg) 20.50 (incl. cartonage)
Housing material Aluminum
Housing (cm) L × W × H 768.0 x 475.0 x 65.0
Mounting VESA 400x300



Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 24V DC-Out
Working Power (V) 24
Power Consumption (W) 65
Stand-By Consumption (W) <1



1x SD-card
1x SIM-card
2x Serial
4x TTL UART
2x USB 2.0
18/24Bit LVDS
6x GPIO
1x Line-In
1x Line-Out
1x Amplifier for 2x 6W loudspeaker
1x SATA-Port
1x RTC
1x CAN bus



1x 24V DC-In (4-pin)
1x HDMI
2x USB 2.0
1x USB OTG
1x 10/100Mbits RJ45 port
1x Audio-In
1x Audio-Out
1x Serial
1x RJ10 (4P4C)
1x SD-card slot
1x SIM-card slot
1x W-LAN antenna connector (RP-SMA male)



1x MiniPCIe



Power Supply (see Power section)
W-LAN Antenna (RP-SMA female)
Short Installation Manual
Opcionais
Grampos de fixação
19.90€

Grampos de fixação

€79.50

Modulo de ignição
