Sku: FPC-5211-M4
Tipo de Produto:
PCs Visão Artificial
Fabricante:
Arbor

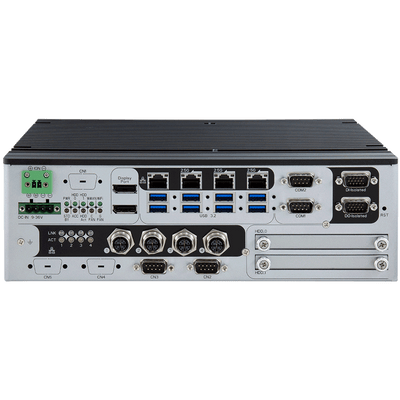

FPC-5211-M4
Edge AI GPU PC para CPU's Intel® 12 / 13 Gen. Alder Lake-S / Raptor Lake-s, com 4 saídas M12 e 2 portas PoE
- Design Fanless (Embedded heat pipes cooling solution)
- Intel Core™ i9/i7/i5/i3 Alder Lake-S / Raptor Lake-s, de 12 / 13 Geração
- Modulo de Expansão MXM GPU 60W
- 4x portas Gigabit PoE 802.3af (15.4W) (FPC-5211-M4)
- Portas Gigabit PoE 802.3af (15.4W) / 802.3at(25.5W) (FPC-5211-2M4/2P4)
- Dual DP + HDMI + DVI, suporta 4 displays independentes
- Controle ON-OFF / desativação de energia / controle de ignição configurável
- Suporta TPM 2.0 e Time-Sensitive Networking (TSN)
- 2 mPCIe para módulos Wi-Fi/3G/4G/GPS ou expansões I/O
- Conectores frontais de facil acesso
- 1x M.2 B-Key para armazenamento ou 5G/LTE e 1x M.2 E-Key para Wi-Fi / BT
- 1x M.2 M-Key para SSDs NVMe
Especificações
Downloads
Especificações
System
| CPU | Intel® 12th / 13th generation Core™ i9/i7/i5/i3 processor in LGA1700 socket (Max 35W CPU) |
|---|---|
| Memory | 2 x 262-pin DDR5 SO-DIMM sockets, supporting 4800 MHz SDRAM up to 64GB (ECC/ Non-ECC) |
| Chipset | Intel® R680E |
| Graphics | Integrated Intel® HD Graphics 770 |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
LAN Chipset |
1 x Intel® WGI219LM GbE controller w/ iAMT 16.0 3 x Intel® I226 2.5GbE controllers 2 x Intel® I226 2.5GbE controllers for PoE 2 x Marvell® 10GbE controllers for PoE |
LAN Chipset |
1 x Intel® WGI219LM GbE controller w/ iAMT 16.0 3 x Intel® I226 2.5G GbE controllers 2 x Inte® I210 GbE controllers for PoE 2 x Intel® I226 2.5G GbE controllers for PoE |
LAN Chipset |
1 x Intel® WGI219LM GbE controller w/ iAMT 16.0 3 x Intel® I226 2.5GbE controllers 6 x Inte® I210 GbE controllers for PoE |
| Watchdog Timer | 1~255 levels reset |
| TPM | Onboard TPM 2.0 |
I/O Interface
| Serial Port | 2 x RS-232 / 422 / 485 configurable ports via DB-9 connectors (Default RS232, Switch via BIOS) 2 x RS-232 via DB-9 connectors |
|---|---|
| USB Port | 8 x USB 3.2 / 2.0 ports |
LAN Port(POE) |
4 x RJ-45 connectors for GbE 4 x M12 X-coded connectors by 2 x Intel® I226(2.5GbE) + 2 x Marvell® 10GbE, max 60W supports 802.3at POE+ |
LAN Port |
4 x RJ-45 connectors for GbE by 2 x Intel® I226(2.5GbE) + 2 x Marvell® 10GbE, max 60W supports 802.3at POE+ |
LAN Port |
4 x RJ-45 connectors for GbE 4 x M12 X-coded connectors by 2 x Intel® I210(1GbE) + 2 x Intel® I225(2.5GbE) supports 802.3af POE |
LAN Port |
4 x RJ-45 connectors for GbE 6 x RJ-45 connectors by Intel® I210(1GbE) max 60W supports 802.3af POE |
| Video Port | 2 x DP 1.4a from MXM module or Intel Graphics (Default Intel graphics switch via BIOS) 1 x HDMI 2.0b female conn. for digital video output 1 x DVI-I female conn. for digital/ analog video output * Support 4 independent displays |
| Expansion Bus | 1 x MXM3.1 TYPE A/B GPU Slot (PCIe Gen5 x16) MXM A2000 support 2 x mPCIe Slots interconnected with SIM card sockets for optional Wi-Fi/BT/3G/LTE/GPS (PCIex1 + USB2.0, Full Size) 1 x M.2 B key (2242/3052/2280) w/ (PCIex2 + USB3.0 + SATA) interconnected with SIM for 5G / LTE expansion or for storage (either one) 1 x M.2 E key ( 2230) with PCIex1+USB2.0+CNVi) for Wireless |
| Digital I/O Port | 1 x DB15 conn.for 8 x digital input (Dry/ Wet contact) with 2KV isolation 1 x DB15 conn.for 8 x digital output with 2KV isolation |
| Audio | Mic-in / Line-out |
Environmental
| Operating Temp. FPC-5211-2M4 / FPC-5211-2P4 |
-20 ~ 50°C (-4 ~122°F), ambient w/ air flow -20 ~ 60°C (-4 ~140°F), ambient w/ air flow (w/ External SMART FAN kit) *A2000 GPU 100% loading without throttling |
|---|---|
| Operating Temp. FPC-5211-M4 FPC-5211-P6 |
-20 ~ 50°C (-4 ~ 122°F), ambient w/ air flow -20 ~ 65°C (-4 ~ 149°F), ambient w/ air flow ( w/ External SMART FAN kit) *A2000 GPU 100% loading without throttling |
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 60°C (non-condensing) (2M4/2P4) 10 ~ 95% @ 65°C (non-condensing) (M4/P6) |
| Vibration | 5~500Hz 3G rms X,Y,Z axis w/SSD, according to IEC 60068-2-64 |
| Shock | 50 Grms, Half-sine 11 m sec. duration w/ SSD, according IEC60068-2-27 |
OS Support
| System | Windows 10 IOT Enterprise 64-bit Linux ( Ubuntu 20.04 ) |
|---|
Storage
| Type | 2 x 2.5” outside accessible drive bays 1 x M.2 B key (2242/2280) w/ (PCIex2 + USB + SATA) for storage or LTE expansion (either one) 1 x M.2 2280 M key supports 2242, 2280 devices (PCIe x4 & SATA signal, support boot up function) |
|---|
Qualification
| Certification | CE, FCC Class A, E mark. |
|---|
Power Requirement
| Power Input | DC 9~36V input (w/ 4-pin DC input terminal block)(V+, V+, V-, V-) |
|---|---|
| Ignition Switch | 2-pin terminal block: IGN, GND |
| Power Consumption | Max. 180W |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 5.83 Kg (12.85lb) |
| Dimensions (W x D x H) | 285x230x 90mm (9.84” x11.50” x 3.54”),Fanless 285x230x110mm (9.84” x11.50” x 4.33”),w/ FAN |
Ordering Information
| FPC-5211-2M4 | Edge AI GPU Computer Bare BOM, w/2x 10GbE PoEs, M12 type |
|---|---|
| FPC-5211-2P4 | Edge AI GPU Computer Bare BOM, w/2x 10GbE PoEs, RJ45 type (BTO) |
| FPC-5211-M4 | Edge AI GPU Computer Bare BOM, w/4x M12 PoEs |
| FPC-5211-P6 | Edge AI GPU Computer Bare BOM, w/6x POEs |
