com IVA
621.15€

sem IVA
505.00€
Sku: STC-24850
Tipo de Produto: Fontes DC-Input
Fabricante: AGL
Especificações

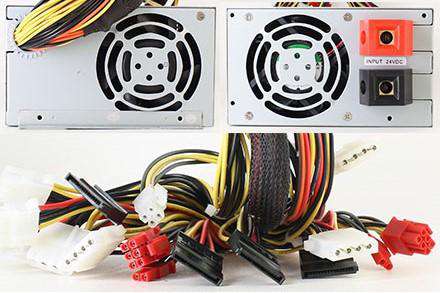

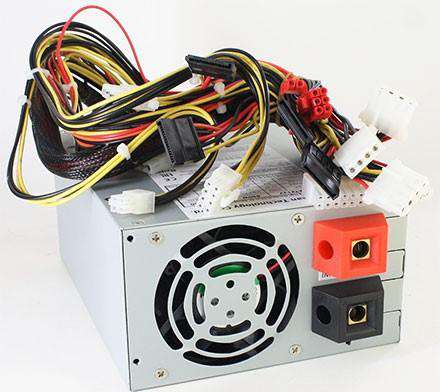

  • Model: STC-24850

  • Output Watts: 850W continuous

  • Input Voltage - ±24V

  • DC Input range - ±18V ~ ±36V DC



ENVIRONMENTAL CONDITIONS:
● Cooling: Forced Air-cooling, 80x80x25 mm Fan x 2 PCs
● Fan type: DC type, 2 x Ball Bearing, 6200 r.p.m., Optional Fan Control Card
● Fan brand: SUNON, DELTA, ADDA, NMB. Specifications are equivalent
● Operating Temperature: 0°C ~ +50°C (-20°C~+60°C optional) Full Load
● Output Power: 100% @ 50°C
● Output Power: 70% @ 60°C
● Output Power: 50% @ 70°C
● Operating Humidity: 20%~85% RH. (Non condensing) (95% RH Optional)
● Storage Temperature: -20°C~+80°C
● Storage Humidity: 10%~90% RH. (Non condensing)
● Operating Altitude: 10M Below Sea level and 3000M Above Sea level

DC INPUT CHARACTERISTICS:
● Input connector type 200A/300V UL Aprroved Gold Plated Brass 2 Pin 12.5mm Screw Terminal
● Input Current 54A/110A(850W) @Full Load High Line & Low Line
● Inrush Current Less than 90A Cold start @25°C ambient



DC OUTPUT CHARACTERISTICS:

Output Voltage Regulation Output Current     Ripple & Noise
Load Line Cross 850W
Min Max
+5V ±5% ±1% ±5% 0A 30A 50mV
+12V 0A 60A 120mV
+3.3V 0A 30A 50mV
-12V ±8% 0A 1A 120mV
-5V(optional)     Optional Optional 50mV
+5VSB ±5% 0A 3.5A 50mV
Maximum continuous combined load on +3.3 V & +5V DC output shall not exceed 250 Watts
Maximum continuous combined load on +3.3 V & +5V & 12V DC output shall not exceed 820
Maximum continuous total DC output power shall not exceed 850



OVERALL PERFORMANCE:
● Efficiency 75% typical @24V DC Full Load
● Rise time
● Power Good Signal TTL Compatible signal, on delay 100~500ms, off delay 1ms min
● Short Circuit Protection (SCP) All output equipped with SCP (shutdown and latch off)
● Over Power Protection (OPP) Peak power protected to 130%±10% of continuous rated power (shutdown and latch off)
● Over Voltage Protection (OVP) +3.3V@4.5V, +5V@6V, +12V@15.6V

RELIABILITY:
● MTBF (Mean Time Between Failure): >90,000 hours @max. Load, 24V DC & 25°C ambient
● Safety Standards: Meet IEC60950-1, EN60950-1
● Safety Approved:
● EMI Compatibility (EMC) Standard: EN55032:2015/AC:2016, CISPR32:2015, EN61000-3-2:2014,
EN61000-3-3:2013, EN55024:2010 +A1:2015

ISOLATION:
● INPUT and OUTPUT are isolated by transformers and optical couplers
● Dielectric Withstand: INPUT to OUTPUT: 500V DC for 60 seconds
● Dielectric Withstand: INPUT to frame GROUND: 500V DC for 60 seconds
● Leakage Current: <0.005μA @ 24V DC

Output Connector specific:
● ATX 24 Pin x1: Molex29-01-2240 or equivalent
● +12V(P4) 4 pin x1: Molex 39-01-2040 or equivalent
● HDD, DVD 4 pin x2: Molex 8981-04P or equivalent
● FDD 4 pin x2: AMP171822-4 or equivalent
● Serial ATA x8: Molex 675820000 or equivalent
● Process EPS 8 Pins x 1 Molex 39-01-2080 or equivalent
● PCIe x 2

Standard Output Cable Length:
● 530 mm / 20.87 Inches

Power chassis Dimension:
● 184(L) x 150(W) x 86(H) mm / 7.24(L) x 5.9(W) x 3.39(H) Inches

Net Weight:
● 3.5 kg / 7.716 lbs

Gross Weight:
● 4 kg / 8.818 lbs

Packing Detail
● 4 PCs
● GW 15.6 kg

Measurement of Carton
● 36 x 35 x 51 cm
● 0.066 m3 / 2.33 Cuft
