Sku: HPC150GR-HD1900B
Tipo de Produto:
Panel-PC Resistivo
Fabricante:
Jetway

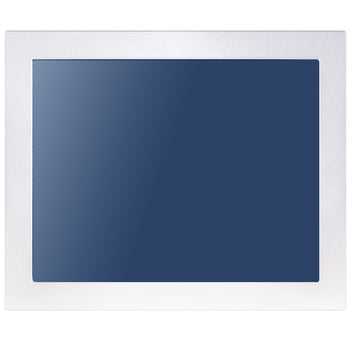

Touch-PC 15" Resistive Touch em Alumínio
15.0” 350 nits high brightness TFT LCD with LED backlight
5 Wire Resistive Touch/Anti-Reflection Protection Glass
Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casing
Strong solid aluminum frame design and Fanless cooling system
Support Open frameless design
Design for easy Wall mount, Panel Mount, VESA Mount installation
A true Flat, easy-to-clean front surface with edge-to-edge design
Lockable USB device bracket supported
Front bezel meets IP65-rated protection
9-28V DC-input Support, with EOS, OVP design
Características
Especificações
Downloads
Características
Diagrama
Dimensões
Especificações
Display | |
Front Bezel |
– IP65, NEMA 4 rugged protection, metal front bezel |
Display Type |
– 15.0″ With LED Backlight |
Brightness (cd/m²) |
– 350 nits |
Display Color |
– 262K |
Resolution |
– 1024 x 768 @ 60Hz |
Viewing Angle (H/V) |
– 170°/160° |
Pixel Pitch |
– 0.297 x 0.297 mm |
Aspect Ratio |
– 4:3 |
Contrast Ratio |
– 700:1 |
Response Time |
– 5.7 ms |
Touch Screen | |
Type |
– 5 wires analog resistive type |
Active Range |
– 304.10 x 228.10mm ±0.2mm |
Operating Force |
– ≦ 80g |
Transparency |
– 80 ±3% |
Surface Hardness |
– ≧3H (ASTM D3363, pressure 750g/45°) |
Knock test |
– 10,000,000 times keystrokes |
CASE | |
Panel Material |
– Aluminum |
Case Material |
– Iron |
Color |
– Silver + white |
Coating Requirement |
– Spray Paint |
Main System | |
CPU |
– Intel® Bay Trail-D J1900 2.0GHz/QC |
RAM |
– 4G 1333MHz DDR3L SAMSUNG DRAM |
BIOS |
– 64MB SPI Flash ROM |
Storage |
– 1* 2.5” SATA bay |
Watchdog Timer |
– 256 levels, 0~255 sec. |
OS Support |
– Windows 7 / 8.1 / 10 / Linux (Option) |
I/O Connector | |
I/O Ports and Switches |
– 2* USB3.0 |
Expansion Interface | |
Expansion |
– 1 * PCI-E mini card for WIFI or 3G/4G |
Power | |
Power Input |
– Supports 9-28V DC Power in with over current protection fuse – Provides 100~240V AC-DC 12V, 60W power adapter |
Power Consumption |
– 35W |
Dimension | |
Case Dimensions |
– 366.0*290.0*74.0mm |
Certifications | |
Certifications |
– CE, FCC, IP65(Front) |
Environment | |
Temperature |
– Operating Temperature: 0 ~ 60° C (with W.T. DRAM/HDD in airflow condition) |
Shock |
– Operating: 15G，11ms duration |
Vibration |
– Operating: 5~500Hz/1 Grms |
Warranty | |
Warranty |
– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year) |
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
