Sku: LMX-0800
Tipo de Produto:
Switches Gerenciáveis
Fabricante:
Antaira
LMX-0800
LMX-0800-T (EoT: -40~75C)

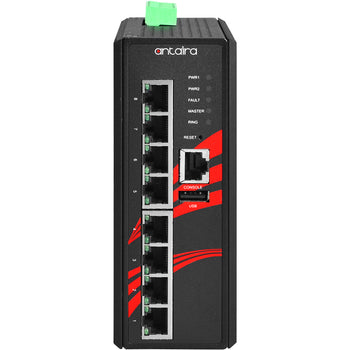

8-Port Industrial Managed Ethernet Switch w/8*10/100Tx; EOT: -40~75C
Caraterísticas
Especificações
Downloads
Incluído
Caraterísticas
Antaira’s LMX-0800 is a 8-port industrial managed Ethernet switch that is embedded with 8*10/100Tx Fast Ethernet ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software.
The LMX-0800 has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, security, or any other outdoor/harsh environment.
- Supports 8*10/100Tx Fast Ethernet Ports
- Network Broadcast Storm Protection
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in relay output for Port Break Alarm
- System Warning Setting for Automatic Warning through E-mail
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
Especificações
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201 |
| Configuration | Web Console, Telnet, CLI |
| Dimensions | 54 x 142 x 99 mm |
| EMI | FCC Class A |
| EMS | IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4 |
| Ethernet Port | 8*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection |
| Housing | Metal IP30 rated / DIN-Rail & Wall-Mount (Included) |
| Input Voltage | 12~48VDC Redundant Input / 1 removable 6-contact terminal block |
| Operating Temperature | STD: -10 to 70°C |
| Power Consumption | 15 Watts |
| Free Fall / Shock / Vibration | IEC60068-2-27 / 2-6 / 2-32 |
| Warranty | 5 Years |
Downloads
Incluído
- 1 - LMX-0800(-T)
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 1 - RJ45 to DB9 Serial Console Cable
- 2 - Wall Mounting Brackets and Screws
