Sku: BOXER-6839-CFL-A1-1010
Type de produit:
PCs com expansão PCIe / PCI
Vendeur:
AAEON
BOXER-6839-CFL-A1-1010
1 PCIE x4 / 1 PCIE x1 / 2 Full-size Minicard
BOXER-6839-CFL-A2-1010
1 PCIE x4 / 1 PCI x1 / 2 Full-size Minicard
BOXER-6839-CFL-A3-1010
2 PCI x1 / 2 Full-size Minicard
Fanless Embedded Box PC para processadores Intel® de 8/ 9 Geração
- High Computing Power
- Intel Coffee Lake-S LGA 1151 Desktop Processor
- Support DDR4 ECC or Non-ECC SODIMM, Up to 64GB
- Support HDMI x 2 Double Display
- Support USB 3.2 Gen 1 x 8
- PCIE [x4] x 1 + PCIE [x1] x 1 Expansion
Caraterísticas
Especificações
Downloads
Incluído
Acessórios
Caraterísticas
The BOXER-6839-CFL combines the power of 8th/9th Generation Intel® Core™ and Xeon® processors (formerly Coffee Lake) with expandability and a broad I/O layout, allowing it to power industrial applications and easily integrate with existing deployments.
The BOXER-6839-CFL supports 8th/9th Generation Intel® Core™ i3/i5/i7/i9 and Xeon® E processors (up to 71W TDP), delivering server grade performance. Combined with up to 64GB of memory, the BOXER-6839-CFL brings the processing power and speed needed to power a range of industrial and AI applications.
The BOXER-6839-CFL offers rugged construction, with fanless design capable of reliable operation in temperatures from -20°C up to 55°C. (CPU < 35W TDP).
The BOXER-6839-CFL offers expandability with three PCIe/PCI configurations to allow developers and users to quickly add on functionality with AI accelerators or frame grabber cards, AI modules or machine controller interfaces. The system also comes with flexibility built-in with a broad I/O loadout to connect with just about anything, featuring eight USB3.2 Gen 1 ports, six COM ports, 8-bit DIO and four LAN ports including one Intel i219 with support for vPro.
Especificações
| SYSTEM | |
| CPU | Intel® Xeon® E-2124G Intel® i9-9900T Intel® i7-9700TE Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Pentium® G5400T Celeron® G4900T |
| CHIPSET | C246 |
| SYSTEM MEMORY | DDR4-2666 SO-DIMM slot x 2 Up to 64GB, ECC or Non-ECC Support |
| DISPLAY INTERFACE | HDMI x 2 |
| STORAGE DEVICE | 2.5” SATA HDD/SSD Bay x 2 |
| ETHERNET | RJ-45 x 4 for GbE LAN (i211-AT x 3, i219-LM x 1) |

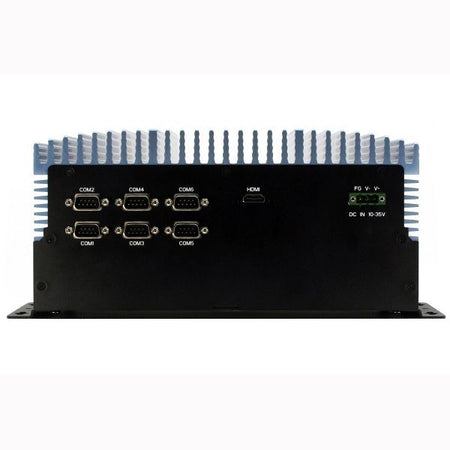

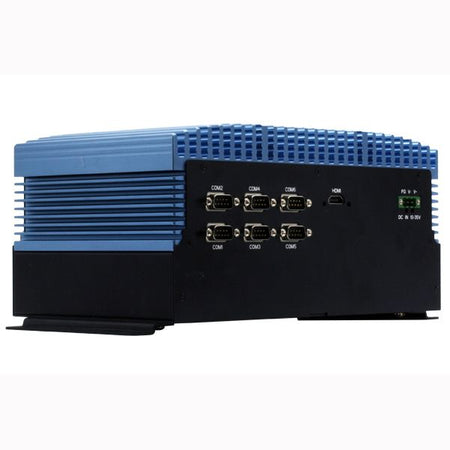

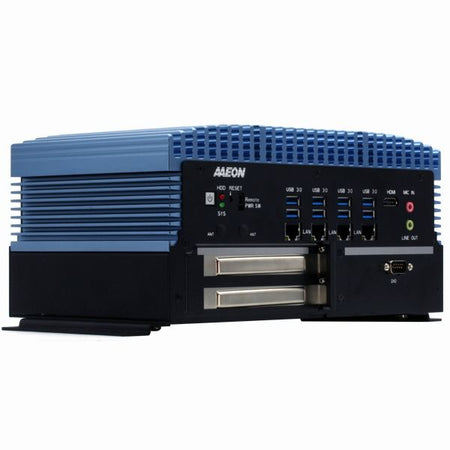

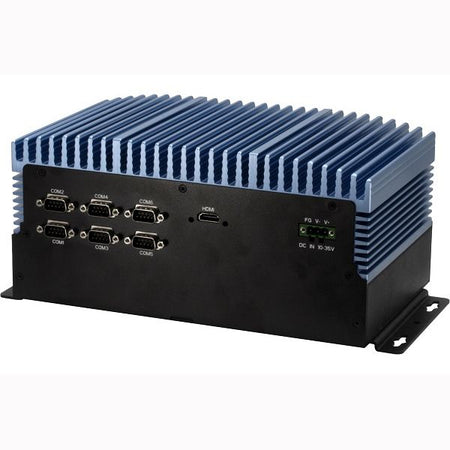

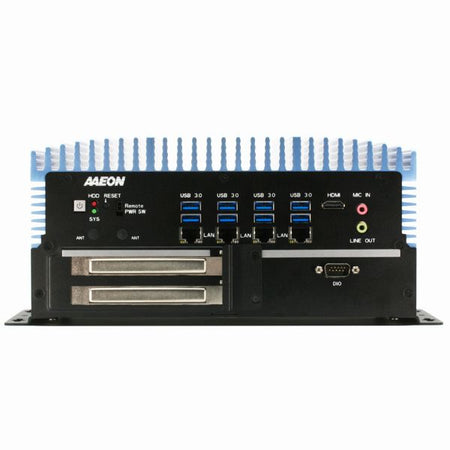

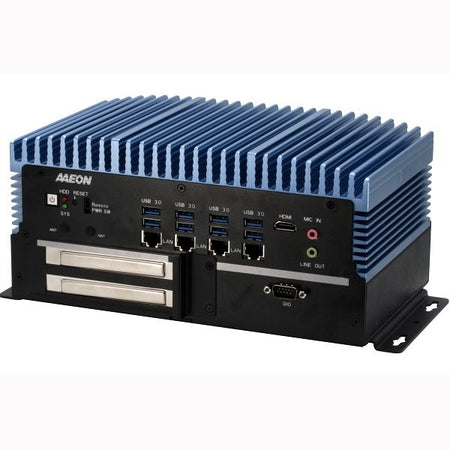

| I/O | HDMI x 2 RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1) USB 3.2 Gen 1 x 8 DB-9 x 6 for RS-232/422/485 Audio x 1 (MIC-in, Line-out) DB-15 for DIO 8 bit x 1 3 pin 10~35V Power Input x 1 Power Button x 1 Remote Power switch x 1 Reset Button x 1 |
| EXPANSION | Full-size Mini card x 1 (PCIe) Full-size Mini card x 1 ((PCIe/mSATA switch by BIOS, Default: mSATA) SIM slot x 1 PCIE slot : Riser card type 1: PCIe[x4] slot x 1 & PCIe[x1] x 1 (A1) Riser card type 2: PCIe[x4] slot x 1 & PCI x 1 (A2) Riser card type 3: PCI x 2 (A3) Max. size of expansion card 150 x 105 x 40 mm |
| INDICATOR | HDD LED x 1 System LED x 1 |
| OS SUPPORT | Windows® 10 64-bit, Linux Ubuntu 20.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin Phoenix DC Input 10~35V |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 264mm x 156mm x 125mm |
| GROSS WEIGHT | 13.2 lb (6.0 kg) |
| NET WEIGHT | 9.9 lb (4.5 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~131°F (-20°C ~ 55°C) with 0.5 m/s airflow (with TDP ≦ 35W CPU) -4°F~113°F (-20°C ~45°C) with 0.5 m/s airflow (with TDP > 35W CPU) |
| STORAGE TEMPERATURE | -49°F ~ 176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 5~95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation –SSD |
| ANTI-SHOCK | SSD: 50G @ wallmount, Half-sine, 11ms |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6839-CFL]
| PART NUMBER | BOXER-6839-CFL-A1-1010 | BOXER-6839-CFL-A2-1010 | BOXER-6839-CFL-A3-1010 |
|---|---|---|---|
| CPU | — | — | — |
| PCH | C246 | C246 | C246 |
| LAN | 4 | 4 | 4 |
| USB | USB 3.2 Gen1 x 8 | USB 3.2 Gen1 x 8 | USB 3.2 Gen1 x 8 |
| RS- 232/422/485 | 6 | 6 | 6 |
| DIGITAL I/O | 8 bit | 8 bit | 8 bit |
| AUDIO | Mic-in x 1 Line-out x 1 |
Mic-in x 1 Line-out x 1 |
Mic-in x 1 Line-out x 1 |
| STORAGE | 2.5" SATA Drive Bay x 2 | 2.5" SATA Drive Bay x 2 | 2.5" SATA Drive Bay x 2 |
| DISPLAY | HDMI x 2 | HDMI x 2 | HDMI x 2 |
| EXPANSION | PCIE [x4] x 1 + PCIE[x1] x 1 Full-size Minicard x 2 |
PCIE [x4] x 1 + PCI x 1 Full-size Minicard x 2 |
PCI x 2 Full-size Minicard x 2 |
| MOUNTING | Wallmount | Wallmount | Wallmount |
| POWER | DC-in 10-35V x 1 for 3-pin Terminal Block | DC-in 10-35V x 1 for 3-pin Terminal Block | DC-in 10-35V x 1 for 3-pin Terminal Block |
| OPERATION TEMP | -4°F ~131°F (-20°C ~ 55°C), IEC68-2 with 0.5 m/s AirFlow (with TDP ≤ 35W CPU) -4°F ~113°F (-20°C ~ 45°C), IEC68-2 with 0.5 m/s AirFlow (with TDP 35W > CPU) |
-4°F ~131°F (-20°C ~ 55°C), IEC68-2 with 0.5 m/s AirFlow (with TDP ≤ 35W CPU) -4°F ~113°F (-20°C ~ 45°C), IEC68-2 with 0.5 m/s AirFlow (with TDP 35W > CPU) |
-4°F ~131°F (-20°C ~ 55°C), IEC68-2 with 0.5 m/s AirFlow (with TDP ≤ 35W CPU) -4°F ~113°F (-20°C ~ 45°C), IEC68-2 with 0.5 m/s AirFlow (with TDP 35W > CPU) |
Downloads
Incluído
- Wallmount Bracket x 2
- Screw Package x 1
- Thermal Pad x 3
- Phoenix Power Connector x 1
- BOXER-6839-CFL
Acessórios
| 125590120B | 120W Power Adapter |
| 1255302300 | 230W Power Adapter |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (Europe Type) |
| 170203180E | Power Cord (Japan Type) |
| 9741324A00 | WiFi/Bluetooth Module & Antenna |
| 9741EG25G0 | 4G Module & Antenna (For Global) |
