1,162.35€
sem IVA
945.00€
Sku: BOXER-6839-A1-1010
Type de produit:
PCs Visão Artificial
Vendeur:
AAEON
BOXER-6839-A1-1010
BOXER-6839-A2-1010
BOXER-6839-A3-1010

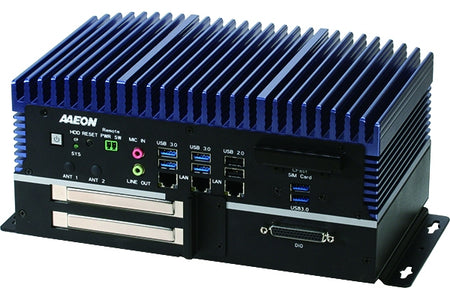

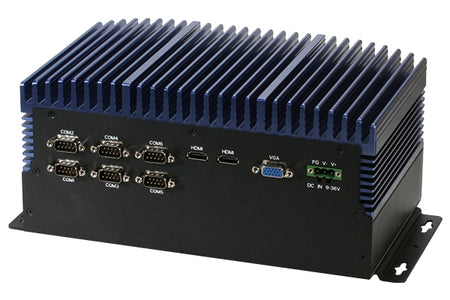

Fanless Embedded Box PC with 6th/ 7th Generation Intel® Core™ Desktop Processor and PCIe & PCI Expansion
- Extreme Computing Power & Graphic Display Capability
- Desktop Grade Socket Type Processor with Longevity Support
- DDR4 ECC or Non-ECC SODIMM, Up to 32GB
- VGA + HDMI x 2 Triple Display, HDMI 4K Display
- PCIe x4 & PCI Expansion
- USB 3.2 Gen 1 x 6
- Industrial-grade Intel® GbE LAN x 3
- Supports BIOS Selectable RS-232/422/485 x 6
- Easy Access Design
- Wide Range DC 9~36V Input
- 34-bit Digital Input and Output
Caraterísticas
Especificações
Downloads
Packing List
Acessórios
Caraterísticas
With a specially designed interface that supports PCIe x4, the BOXER-6839 seamlessly integrates various Industrial cameras such as GigaLAN / PoE/ USB 3.0 / CameraLink / CoaXpress. The AAEON Vision System Embedded Fanless BOXER has been tested and proofed with most industrial cameras and vision control software, adhering to stringent industry standards, and is compatible with multiple cameras on a connected platform. Powered by the powerful Intel 7th Gen. desktop CPU and Intel I210 LAN chip, the BOXER-6839 will expedite the assembly process, facilitate effective deployment in smart-factory lines, and enhance system performance at an affordable price.
Unlike former designs, the BOXER-6839 features a lid cover to facilitate easier accessibility. It features a CPU socket which supports swappable CPUs, offering higher customization and mobility options, and provides a triple independent display which will greatly enhance factory product management. Additionally, it offers support for 6 COM RS485 ports, well above the current market average.
Designed to consolidate existing camera systems, AAEON's BOXER-6839 series supports various camera interfaces, providing seamless integration without having to connect through other transponders. The BOXER-6839 provides longevity support and a customizable mechanical design for CPU flexibility to meet the ever-changing needs of both the client and the landscape of Industry 4.0. With a native capacity of 3 GigaLAN ports, as well as a 6 USB 3.0 sockets, and 34-bit programmable digital I/O, it can also be adapted for a wide range of industrial manufacturing processes, lowering lead time and enhancing efficiency and accuracy. The rugged chassis design is ideal for smart control systems, machine vision inspection, digital signage, surveillance and machine makers.
Especificações
| SYSTEM | |
| CPU | 7th Generation Intel® Core™ Processor family: Intel® Core™ i7-7700T, 2.9 GHz Intel® Core™ i5-7500T, 2.8 GHz Intel® Core™ i3-7101TE, 3.4 GHz Intel® Pentium® G4600T, 3.0 GHz Intel® Pentium® G4560T, 2.9 GHz Intel® Celeron® G3930T, 2.7 GHz 6th Generation Intel® Core™ Processor family: Intel® Core™ i7-6700TE, 2.4 GHz Intel® Core™ i5-6500TE, 2.3 GHz Intel® Core™ i3-6100TE, 2.7 GHz Intel® Pentium® G4500T, 3.0 GHz Intel® Pentium® G4400T, 2.9 GHz Intel® Celeron® G3900T, 2.6 GHz |
| CHIPSET | Intel® Q170 |
| SYSTEM MEMORY | DDR4 1866/2133 SODIMM slot x 2, up to 32GB |
| DISPLAY INTERFACE | HDMI, VGA |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® I210, 10/100/1000Base-TX x 3 |
| I/O | RS-232/422/485 x 6 USB Type A x 6 for USB 3.2 Gen 1 USB Type A x 2 for USB 2.0 RJ-45 x 3 for GbE LAN DB-44 for 34-bit Digital I/O (5V) CFast™ slot x 1 SIM card slot x 1 Power On/Off Button x 1 2 pin Remote power on/off Reset switch Mic-in x 1 Line-out x 1 Antenna opening x 2 SYS LED indicator x 1 HDD LED indicator x 1 DB-15 x 1 for VGA HDMI v1.3 x 2 DC-in 3-pin terminal block (9~36V) |
| EXPANSION | Full-size Mini-Card x 2 PCIe [x4] x 1 & PCIe [x1] x 1 (for A1) PCIe [x4] x 1 & PCI x 1 (for A2) PCI x 2 (for A3) |
| INDICATOR | Power LED HDD active LED |
| OS SUPPORT | 7th Generation Intel® Core™ Processor family: Windows® 10 IOT (64bit) Ubuntu 16.04 above Fedora 25 above CentOS 7.3 above 6th Generation Intel® Core™ Processor family: Windows® 10 IOT (64bit) Windows® 8.1 (64bit) Windows® embedded 8 standard (64bit) Windows® 7 (64bit/32bit) Windows® embedded standard 7 (32/64bit) Ubuntu 16.04 above Fedora 25 above CentOS 7.3 above |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 - 36V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 10.40” x 4.90” x 6.15” (264.2mm x 124.5mm x 156.2mm) |
| GROSS WEIGHT | 13.2 lb (6.0 kg) |
| NET WEIGHT | 9.9 lb (4.5kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
| STORAGE TEMPERATURE | -49°F ~ 176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 5~95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation – SSD/CFast™ card 1 Grms/ 5~ 500Hz/ operation – HDD |
| ANTI-SHOCK | - |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6839]
| PART NUMBER | BOXER-6839-A1-1010 | BOXER-6839-A2-1010 | BOXER-6839-A3-1010 |
|---|---|---|---|
| CPU | — | — | — |
| RAM | — | — | — |
| LAN | 3 | 3 | 3 |
| USB | USB 3.2 Gen 1 x 6 USB 2.0 x 2 |
USB 3.2 Gen 1 x 6 USB 2.0 x 2 |
USB 3.2 Gen 1 x 6 USB 2.0 x 2 |
| RS-232/422/485 | 6 | 6 | 6 |
| DIGITAL I/O | 34 bit | 34 bit | 34 bit |
| AUDIO | MIC-in x 1 Line-Out x 1 |
MIC-in x 1 Line-Out x 1 |
MIC-in x 1 Line-Out x 1 |
| STORAGE | 2.5” Drive Bay x 2 CFast™ x 1 |
2.5” Drive Bay x 2 CFast™ x 1 |
2.5” Drive Bay x 2 CFast™ x 1 |
| DISPLAY | VGA x 1 HDMI x 2 |
VGA x 1 HDMI x 2 |
VGA x 1 HDMI x 2 |
| EXPANSION | PCIE[x4] + PCIE[x1] Full-size Minicard x 2 |
PCIE[x4] + PCI Full-size Minicard x 2 |
PCI x 2 Full-size Minicard x 2 |
| MOUNTING | Wallmount | Wallmount | Wallmount |
| POWER | 9~36V DC In | 9~36V DC In | 9~36V DC In |
| OPERATING TEMP | -4°F ~ 131°F (-20°C ~ 55°C) | -4°F ~ 131°F (-20°C ~ 55°C) | -4°F ~ 131°F (-20°C ~ 55°C) |
Downloads
Packing List
- Wallmount Bracket x 2
- Screw Package x 1
- Thermal Pad x 3
- Product DVD x 1
- Phoenix Power Connector x 1
- BOXER-6839
Acessórios
| 125590120B | Power Adapter |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (Europe) |
| 170203180E | Power Cord (Japan) |
| 9741159H00 | WiFi/Bluetooth Module & Antenna |
| 9741EC25E0 | 4G Module & Antenna (For Europe) |
| 9741EC25A0 | 4G Module & Antenna (For USA-AT&T) |
| 9741EC25V0 | 4G Module & Antenna (For USA-Verizon) |
