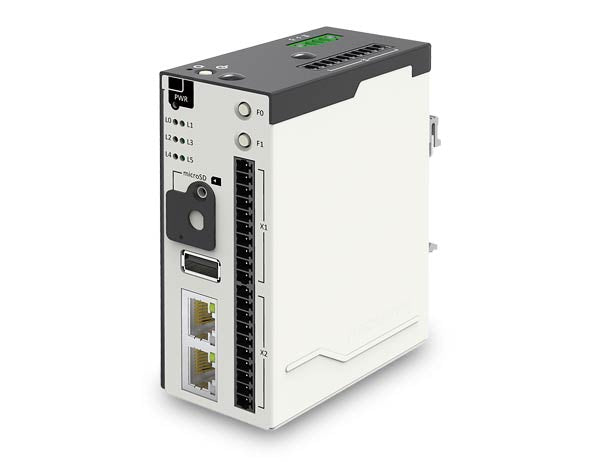

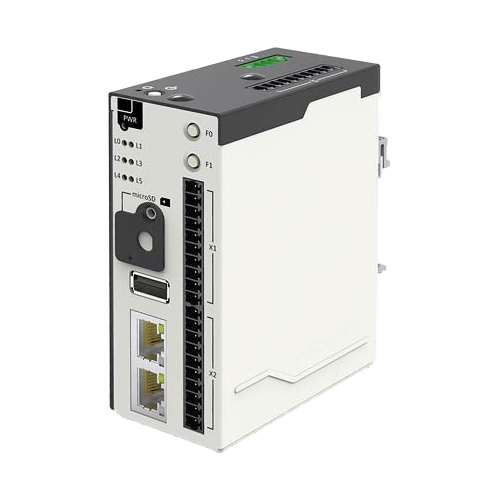

Neousys IGT-30 series, equipped with AM3352 from Texas Instrument's Sitara AM335x family, is an ARM-based Box PC aimed at Industrial IoT Gateway and Industry 4.0 applications. As required by any industrial applications, IGT-30 series is shipped as a ready system preinstalled with Debian and in compliance with common industrial certifications such as CE/FCC, shock and vibration. It has a power input range of 10 to 25 VDC and a wide operating temperature from -25°C to 70°C to ensure IGT-30 continues to function under harsh industrial conditions.
IGT-30 series IoT Gateway supports PoE Powered Device (PD) mode meaning it can be powered by a LAN cable from a PoE Power Sourcing Equipment (PSE), and at the same time transfer data via this cable as well. IGT-30 series has I/Os that are applicable to a range of industrial grade sensors. It features one USB2.0 port, two 10/100M LAN ports, one configurable COM port (RS-232/422/485) and an optional CAN bus port. In addition to the ports mentioned, there are 8 built-in isolated digital input channels that accept discrete signals from various sensors or buttons/ switches. There are also 2 built-in isolated digital output channels to control actuators and indicators.
Communication wise, IGT-30 series has a mini PCIe slot and a USIM holder allowing it to transmit acquired data and system status via 3G, 4G or WiFi (mini PCIe WiFi module). There is an opening on top of IGT-30 series for users to mount the SMA connector of the wireless module. In terms of storage, IGT-30 series has dual microSDHC slots, one internal and one external. This design allows users to separate system/ user data and can expedite in OS deployment for mass production. Inherited from IGT-20, IGT-30 series provides six LED indicators and two function buttons that can be programmed by users. The function buttons can act as controls for IGT-30 series and exclude the need for external input devices, such as keyboard/ mouse.
■ NEOUSYS MARKETING TEAM
|Processor||TI Sitara AM3352 1GHz processor|
|Memory||1GB DDR3L SDRAM|
|Front-panel I/O Interface|
|Ethernet||2x 10/100 LAN|
|SD Card||1x external T-flash socket support SDHC|
|Isolated DIO||8-CH isolated DI and 2-CH isolated DO|
|Console||1x 3-wire RS-232 as console port|
|User LEDs||6x user programmable LEDs|
|Function Buttons||2x user programmable buttons|
|CAN||1x isolated CAN bus 2.0 A/B (IGT-31D only)|
|Top I/O Interface|
|DC-in||1x DC-input connector|
|Power Button||1x power button|
|Reset Button||1x reset button|
|Serial Port||1x software configurable RS-232/422/485|
|Antenna Hole||2x antenna hole for WiFi and 3G/LTE|
|Internal I/O Interface|
|mPCIe||1x full size mPCIe (USB signal only) with an USIM holder|
|SD Card||1x internal T-flash socket support SDHC|
|DC input range||12~25V DC|
|PoE+ PD||Support IEEE 802.3at PoE+ PD|
|Operating System||Pre-installed Debian 9|
|Dimension||41mm(W) x 79mm(D) x 104mm(H)|
|Operating Temperature||-25°C ~ 70°C *|
|Storage Temperature||-40°C ~ 80°C *|
|EMC||CE/FCC Class B (to be certified), according to EN55032 & EN55024|
Cat. 6 LTE embedded socket modem
