com IVA
277.36€

sem IVA
225.50€
Sku: GSM-AE08-V
Tipo de Produto: Controladores Arduino
Fabricante: NORVI

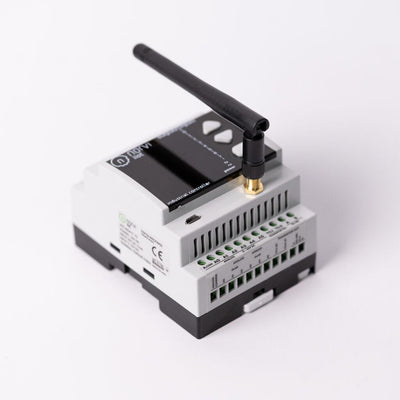

GSM-AE08-V

Controlador Industrial com GSM + WiFi

  • GSM
  • 4x Analog Inputs
  • 6x Digital Inputs
  • OLED Display

ESP32 industrial, pronto para ambientes industriais: Arduino e ESP-IDF

  • ESP32-WROOM32 Module
  • GSM / LTE Connection
  • Built-in 0.96 OLED Display
  • Built-in Button on front panel
  • Digital Inputs
  • Analog Inputs
  • Relay Outputs
  • Ethernet Connectivity
  • DIN-Rail mount
Certificações

Aplicações

  • Wireless IoT Gateways
  • Data transmission over cellular network
  • WiFi to GSM Bridge
  • MQTT Gateway
Caraterísticas

USB Programmable Controller with multiple connectivity channels. Ideal for a IoT gateway or data transmission applications.
The device is based on ESP32-WROOM32 SoC with GSM Connectivity.
It has I/O Compatible with industrial voltage levels, and with added protection. Models are available with different variations on Inputs and Output options. Moreover NORVI GSM Industrial ESP32 is expandable with Expansion modules.

GSM-AE08-V

ESP32-WROOM32

  • Dual Core 32bit 160-Mhz CPU
  • 520 Kbytes SRAM / 4 Mb Flash
  • WIFI 802.11 b/g/n Bluetooth v4.2
  • Two timer groups, including 2 x 64-bit timers and 1 x main
  • watchdog in each group

SIM800L

  • Quad-band GSM/GPRS module
  • DTMF, MMS, MUX Fuctions
  • Embedded TCP/UDP protocols
  • Frequency Bands: 850/900/1800/1900MHz
  • GPRS multi-slot class: 12/10

QUECTEL EC21

  • Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE
  • DTMF, MMS, MUX Fuctions
  • Embedded TCP/UDP protocols
  • Frequency Bands: 850/900/1800/1900MHz
  • GPRS multi-slot class: 12/10
Especificações
Main
Range of product NORVI GSM
Product type Programmable Controller
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnec Compability (EMC)
Annex III, Part B, Module C
Rated supply voltage 24V DC
Communication WiFI / Bluetooth
LTE / EDGE - Quectel EC21
RS485
OLED Display protocol I2C
Analog input range 0 - 10V
Analog input resolution 16 bit

Complementary
Number of Expansions -----
Supply voltage limits 20.4....28.8V
Inrush current <=50A
Power consumption in W 32.6......40.4 with all outputs ON
Discrete logic input Sink or source
Discrete input voltage 24V
Discrete input voltage type DC
Voltage state 1 guaranteed >=15 V for input
Voltage state 0 guaranteed <=5 V for input
Discrete input current 5 mA for input
Input impedance 4.7k Ohm for input
Memory capacity Refer datasheet of ESP32-WROOM32
Battery type -----
Backup time -----
Local signalling 1 LED green for PWR
Electrical connection Removable screw terminal block for inputs and outputs (pitch 5.08 mm)
Mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit
Height 90.50 mm
Depth 56.60 mm
Width 60.60 mm
Product weight 0.43 Kg
Environment
Resistance to electrostatic discharge 4kV on contact
8kV on air
Resistance to electro magnetic fields 10 V/m (80 MHz ...... 1GHz)
3 V/m (1.4 MHz ...... 2 GHz)
1 V/m (2 MHz ...... 3 GHz)
Immunity to microbreaks 10 ms
Relative humidity 10....95% without condensation in operation
IP degree of protection IP20
Operating Temperature –10 … +85° C (14...185 °F)
Storage Temperature –25 … +85° C (–13...185 ° F)
Operating altitude 0...2000m
Storage altitude 0...3000m
Shock resistance 15 gn for 11 ms
