• AMD Ryzen™ embedded V1807B
  • SO DIM DDR4 32GB
  • 4x PoE+, 4x USB 3.1
  • MezIO-R12
  • DC 8~35V Input
com IVA
0.00€

sem IVA
0.00€
Sku: POC-546
Tipo de Produto: PCs Industriais
Fabricante: Neousys

POC-546

AMD Ryzen™ embedded V1807B ultra-compact controller with 4x PoE+ ports, 4x USB 3.1 Gen1 ports and MezIO-R12

  • AMD Ryzen™ embedded V1605B/ V1807B series quad-core 15W/ 45W CPU
  • -25 °C to 70 °C rugged wide-temperature operation
  • Four Gigabit PoE+ ports with screw-lock
  • Four USB 3.1 Gen1 ports with screw-lock
  • M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access
  • DP + VGA dual display outputs
  • Front I/O access and DIN-rail mounting design
  • MezIO™ compatible
Vista Rápida

POC-500 series is the next generation ultra-compact embedded controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1605B/ V1807B 4-core/ 8-thread processor, it delivers up to 3x times the CPU performance over previous POC series. GPU performance wise, it delivers an unheard of 3.6 TFLOPS in FP16 for an ultra-compact form factor embedded controller. Another amazing feat is that it manages to incorporate an M.2 2280 NVMe SSD (PCIe Gen3 x2) to support 2x times the disk read/ write speed over typical 2.5" SATA SSDs.

POC-500 series continues the POC series ingenious DIN-rail mounting mechanical design and offers plenty of front-accessible I/Os. Measuring just 63 x 176 x 116 mm (2.5" x 6.9" x 4.6"), it has 4x PoE+ ports, 4x USB 3.1 Gen1 ports and 4x COM ports. And best of all, all data ports come with screw-lock mechanism so you can be rest assured that cables are always secured. POC-500 series is available in two CPU variants, the V1807B (45W) variant is for high computing power demand and the V1605B (15W) variant is designed for rugged fanless operation.

The arrival of POC-500 series signifies a new breed of ultra-compact embedded controller; one with better I/O design, extraordinary ruggedness and significantly more CPU/ GPU oomph for versatile applications.

■ NEOUSYS MARKETING TEAM

Super Performance

Super-Performance

Front-accessible I/O Function

Front-accessible-I/O

Compact Dimension

 poc-500-ultra-compact-embedded-computer

Rugged Wide-temperature Operation

 wide-temperature-range-operation-minus25-70
Especificações

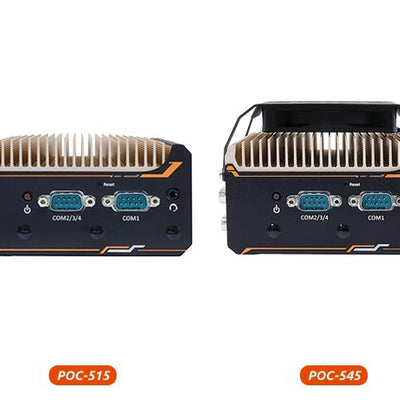

  POC-515 POC-545
System Core
Processor AMD Ryzen™ embedded V1605B CPU
(4C/ 8T, 2M Cache, 2.0/ 3.6 GHz,12W - 25W TDP)
AMD Ryzen™ embedded V1807B CPU
(4C/ 8T, 2M Cache, 3.35/ 3.8 GHz,35W - 54W TDP)
Graphics Vega GPU with 8 compute units Vega GPU with 11 compute units
Memory Up to 32 GB DDR4-2400 SDRAM
by one SODIMM socket
Up to 32 GB DDR4-3200 SDRAM
by one SODIMM socket
TPM Supports TPM 2.0
Panel I/O Interface
Ethernet 4x Gigabit Ethernet ports by Intel® I350-AM4 controller with screw-lock
PoE+ IEEE 802.3at PoE+ on port #1~ 4
USB 4x USB 3.1 Gen1 ports with screw-lock
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2160 resolution
Serial Port 1x software-programmable RS-232/ 422/ 485 ports (COM1)
3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port(COM2)
Audio 1x 3.5mm jack for mic-in and speaker-out
Internal I/O Interface
Mini-PCIe 1x full-size mini PCI Express socket with internal SIM socket
Expandable I/O 1x MezIO™ expansion interface for Neousys MezIO™ modules
Storage Interface
M.2 NVMe 1x M.2 2280 M key NVMe socket (PCIe Gen3 x2)for NVMe SSD installation
  POC-515 POC-545
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8V to 35V DC input
Remote Ctrl.& LED Output 1x3-pin pluggable terminal block for remote control and PWR LED output
Mechanical
Dimension 64(W) x116(D) x176(H) mm 81(W) x118(D) x176(H) mm
Weight 1.2kg 1.4kg
Mounting DIN-rail mount (standard) or wall-mount (optional)
Fan - External-accessible 80mm x 80mm fan for system heat dissipation
Environmental
Operating Temperature -25°C ~ 70°C*/**
Storage Temperature -40°C ~85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Safety EN62368-1
EMC CE/ FCC Class A, according to EN 55032 & EN 55024
* For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** For POC-545, operating temperature is up to 70°C only if external-accessible fan is installed.
