com IVA
1,183.53€

sem IVA
962.22€
Sku: HBJC330U10-1145G7
Tipo de Produto: PCs Industriais
Fabricante: Jetway

HBJC330U10-1145G7

HBJC330U10I-1145G7 (M.2 ac WiFi card)

Fanless Embedded PC Intel® Tiger Lake-UP3, SO-DDR4/3200 até 64GB

  • Intel® Tiger Lake-UP3 SoC Processor (TDP 15W)
  • 2* DDR4 3200MHz SO-DIMM up to 64GB
  • 2* Intel GbE
  • 1* M.2 M-key 2242/2280, 1* M.2 E-key 2230 Support CNVi, 1* M.2 B-key 3042/3052
  • 2* HDMI, 2* DP
  • Support Fanless cooling design
Caraterísticas

Diagrama

HBJC330U10_Front_diagram
HBJC330U10_Rear_diagram
Especificações

MB Model

– JMU10-1135G7
– JMU10-1145G7 (Default)

 Part No

Non-Wifi

M.2 ac WiFi card

– HBJC330U10-1135G7
– HBJC330U10-1145G7

– HBJC330U10I-1135G7
– HBJC330U10I-1145G7

 BIOS

– AMI SMT Flash ROM

 Processor

– Intel® Tiger Lake-UP3 Processor (TDP 15W), Default: 1145G7E
Notes: When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.

 Network

– 2* Intel® GbE
– 1* M.2 E-Key 2230 for WiFi support CNVi
– 1* M.2 B-Key 3042/3052 for 4G/5G module

 Memory

– 2* DDR4 3200MHz SO-DIMM up to 64GB

 Storage

– 1* M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) support NVMe
– 1* SATAIII (SATA PWR support 5V only)

 Expansion slot

– 2 * Mini PCIe (full-size, for WiFi & CAN BUS expansion)
– 1 * Mini PCIe slot (only USB signal, full-size, for 4G LTE + GPS expansion)

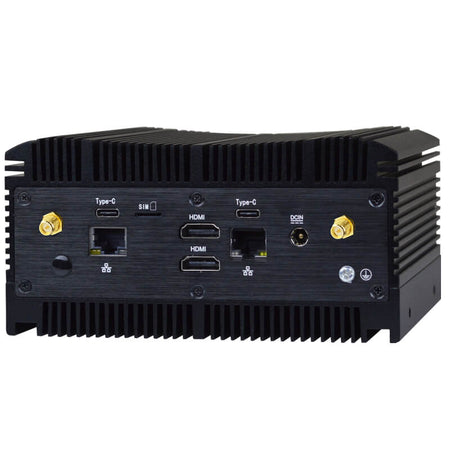

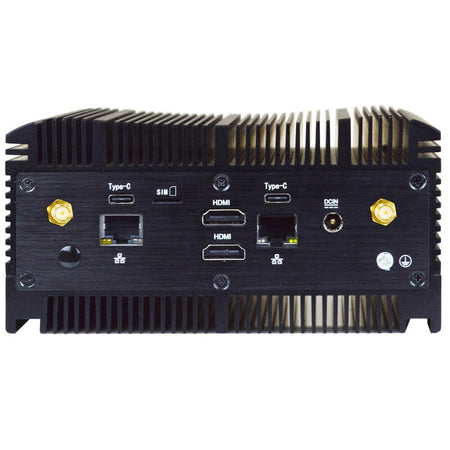

 Rear Panel I/O

– 2* USB3.2 / C Type (Support DP1.4)
– 1* SIM Card slot
– 2* HDMI
– 2* RJ45
– 1* DC Jack

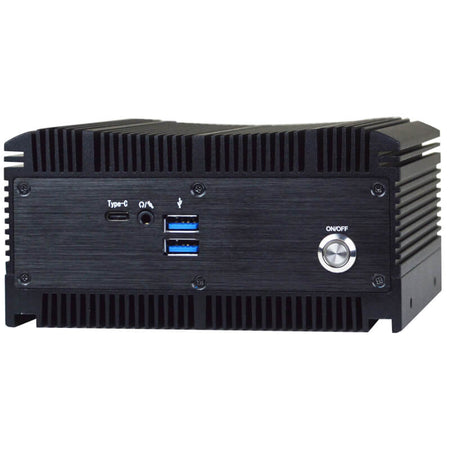

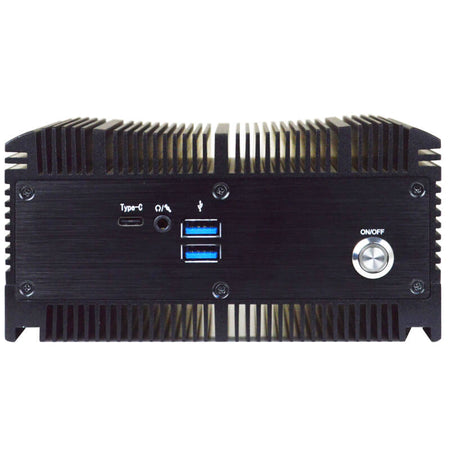

 Front Panel I/O

– 1* Audio Jack (Line out +MIC)
– 2* USB3.2 / A Type
– 1* USB3.2 / C Type
– 1* Power Button + Led

 Compliance

– CE, FCC, RoHS, ErP Ready (Option)

 Power Source

– Adapter : DC12V_5A_60W
– M/B: DC 12~24V input

 Safety

– CE, FCC, LVD, RoHS

 Temperature

– Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C

 Dimensions

– 150.0 (W) x 109.2 (D) x 75.0 (H) mm

 OS Support

– Windows 10, Linux

 Warranty

– 2 Year limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
