Sku: ME1-8MQ-4G32G
Tipo de Produto:
PCs Industriais
Fabricante:
MiTAC

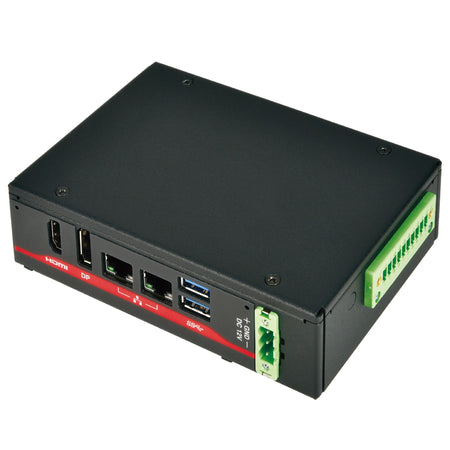

ME1-108T
Embedded PC Fanless com processador NXP® i.MX8M Dual
MiTAC's ME1-108T box pc is a fanless industrial embedded system with NXP ARM-based i.MX8M Dual core/ Quad core high-performance processors inside.
The ME1-108T is in a 0.55 liter compact size design but still equips multiple high resolution display, high expansion slot, high-speed I/O and complete software BSP support.
All of this is aiming to help you enable your IoT internet-connected applications everywhere with more cost efficient budget but less power consumption device.
Caraterísticas
Especificações
Downloads
Caraterísticas
Conectores I/O
Dimensões
Especificações
| Model | Processor | DDR4 | eMMC | Display | LAN | COM |
|---|---|---|---|---|---|---|
| ME1-8MQ-4G32G | I.MX8M Quad Core | 4GB | 32GB | HDMI + DisplayPort | 2 | 1 |
Optional Development Kit |
||||||
| Optional Kit | Specification | |||||
| USB OTG Programming Cable | Micro USB Connector, Cable Length: 500mm | |||||
| UART Debugging Kit | Debugging Board + Cable to Motherboard | |||||
| ME1-108T (ME1-108T) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | NXP® i.MX8M Family - 8M Quad (4 x Cortex-A53 @ 1.3GHz) - 8M Dual (2 x Cortex-A53 @ 1.3GHz) | |
| CHIPSET | i.MX8M SoC Integrated | ||
| SYSTEM MEMORY | LPDDR4 Onboard Memory with Options: 1GB (1200MHz), 2GB (1600MHz), 4GB (1600MHz) | ||
| GRAPHICS | I.MX8 Integrated | ||
| STORAGE | 1 x Micro SD card slot (Up to 256GB) / Onboard eMMC with Options for 8GB / 16GB / 32GB | ||
| ETHERNET | 1 x Realtek® RTL8111H Giga LAN / 1 x Realtek® RTL8211FD Giga LAN | ||
| AUDIO | Realtek® ALC5660 | ||
| SIDE I/O | 1 x Micro SD/SIM card slot / 1 x GPIO 10-pin (4in/4out/5V/GND, Terminal Block) | ||
| EXPANSION SLOT | Mini PCIe Full / Half size (PCIe / USB) | ||
| INDICATOR | Power Button / Power LED | ||

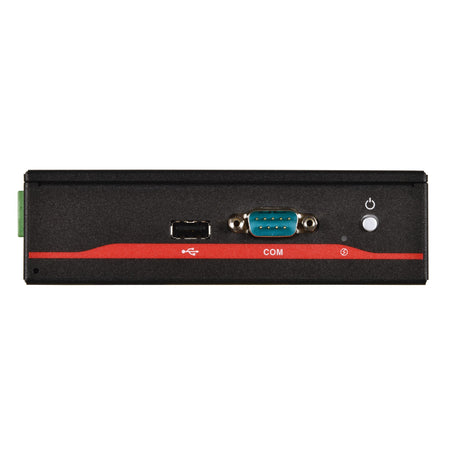

| FRONT I/O | 1 x USB 2.0 / 1 x RS232 / 422 / 485 | ||

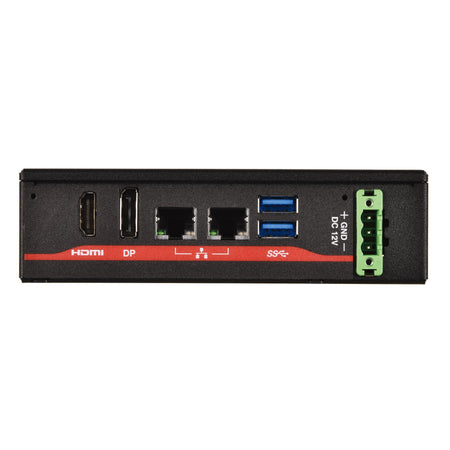

| REAR I/O | 1 x HDMI 2.0 / 1 x DisplayPort 1.2 / 2 x RJ-45 / 2 x USB 3.0 / 1 x 3-pin Terminal Block Power Input | ||
| POWER REQUIREMENT | POWER ADAPTER | DC12V / 3A / 36W adapter | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 55°C (32 ~131°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing | ||
| CERTIFICATION | CE / FCC Class B | ||
| MECHANICAL | ANTENNA | 2 x SMA Antenna (Optional for WiFi / LTE function) | |
| THERMAL DESIGN | Fanless & Ventless | ||
| MOUNTING | Wallmount / VESA Mount (75 x 75mm) 2-in-1 Bracket | ||
| DIMENSIONS (W X D X H) | 140 x 100 x 38.75mm | ||
| MATERIAL | Enclosure: Sheet Metal | ||
| OS | OS SUPPORT | Yocto Sumo (Kernel version 4.14.98) BSP Support / Android 9 Pie (Kernel version 4.14.98) BSP Support / (Remark: Android is suggested for 4G memory MB SKU) | |
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 10P terminal blcok male plug | |
