• 27" Capacitive Touch (OB)
  • Resolução 1920x1080
  • 649.3 × 387.7 × 56.0
  • Input 12V DC
  • IP65 frontal Alumínio
com IVA
737.85€

sem IVA
599.88€
Sku: FT27TMACAPOB
Tipo de Produto: Monitores Touch Capacitivo
Fabricante: Faytech

FT27TMACAPOB

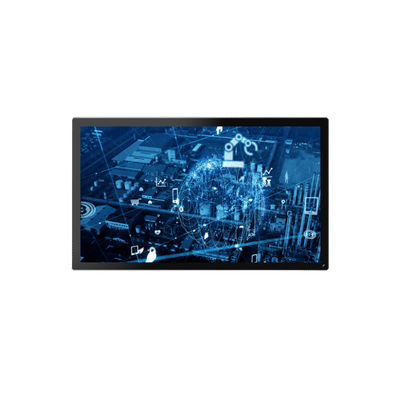

Monitor 27' Optically bonded Capacitive Touch em Aluminio

  • Quadro de alumínio moderno de alta qualidade.
  • Painel Multi Touch capacitivo de 10 pontos.
  • Vidro frontal de 1.1mm com dureza de superfície 7H.
  • Parte frontal com IP65 patenteado com selo de silicone.
  • Touchscreen oticamente ligado ao LCD.
  • Áudio integrado (2x2w).
  • Garantia de 2 anos.
Especificações

PRODUCT DETAILS

Product Name 27" Capacitive Touch Monitor (Alu Frame)
Article Code / EAN Number FT27TMACAPOB / 6920734003426

DISPLAY

Display Size (inch) 27,0
Aspect Ratio 16 : 9
Resolution 1920 x 1080
Brightness (cd/m²) 300
Contrast Ratio 3000 : 1
LED life time (h) 30000
Viewing Angle (°) 178 / 178
Display Interface LVDS

MONITOR SYSTEM

Monitor Controller Intel Atom® RTD2556T
Monitor Firmware Standard
Loudspeaker 2× 2W
Connectors HDMI, DP, VGA, Audio In, Serial Port RS232 (RX / TX only)

TOUCH PANEL

Touch Type Projected Capacitive 10-point Multi-touch
Printing Type Organic
Glass Thickness (mm) 3.0
Cover Glass Surface Treatement None
IK Protection IK07
Printing Color RAL9004 (Black)
Strengthening Thermally Strengthened
Touch Controller EXC81W60
Touch Interface USB
Touch Resolution RX 96
Touch Resolution TX 54
Optical Bonding Clear Bond®

ENVIRONMENTAL CONDITIONS

Operation Temperature -10°C to 60°C
Storage Temperature -20°C to 60°C
Humidity Range 10% to 90%

CERTIFICATIONS

CE Certificate Yes
FCC Certificate Yes

CHASSIS

Case Design Aluminum Frame
IP Protection IP65 Front / IP40 Back
Case Color RAL9004 (Black)
Case Coating Powder Coating
Case Material Aluminum
Case size L × W × H (mm) 649.3 × 387.7 × 56.0
Cut-out for clamp supports L × H (mm) tbd
Max. wall thickness for clamp supports (mm) 5.0
Amount of clamps required 10
Mounting VESA 100 × 100

POWER

Power Indicator Green LED
Working Power 12V
Power Consumption 28W
Stand-By Consumption <1W

INCLUDED IN DELIVERY

Power Adapter 100-240V ACDC active switching; 12V DC-Out
Cable USB Touch Cable
Short Instruction manual Yes

WEIGHT & PACKAGING

Net Weight ~7.90 kg
Gross Weight ~10.40 kg (incl. Cartonage)
Packaging Material 100% recyclable cardboard andpolyethylene (PE)
Packaging Size L × W × H (mm) 815.0 × 485.0 × 80.0

Características
IP Rating Protection IP65 Front/ IP40 Back
LCD Panel Display Size 27"
  Display Format 16:9
  Physical Resolution 1920x1080
  Brightness 300 cd/m²
  Optical Bonding Optical Bonding
  Coverglass 3,0 mm
Operation / Mechanical Housing Aluminium
  Backlight Type
  Betriebstemperatur -10°C bis 60°C
  Storage Temperature -20°C ~ 60°C, 10%RH ~ 90%RH
Touch Panel Touch Technology capacative
  Coverglass Surface Glare
Power Power Supply 12V
External connections HDMI 1
  VGA 1
  DP 1
  DVI 1
  USB 2.0
  USB 3.0
Opcionais
Grampos-fixação
32.50

Grampos de fixação

Suporte-Wallmount
35.00

Suporte Wallmount

Stand Metal VESA 75 / 100
35.00€

Stand em Metal VESA 75 / 100
