• 17' TFT LCD, LED backlit
  • 1024*768
  • Projected capacitive touch
  • Multi DVI+VGA signal input
  • DC 12V power input
com IVA
867.15€

sem IVA
705.00€
Sku: TM-PC170
Tipo de Produto: Monitores Touch Capacitivo
Fabricante: TAICENN

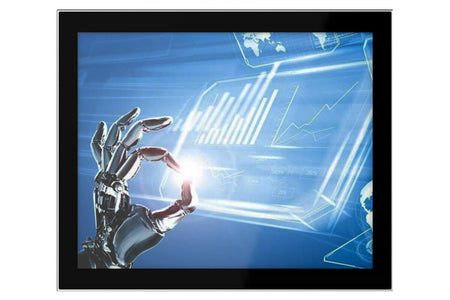

Monitor 17' Capacitive Touchscreen

● 17.0’’ TFT LCD, LED backlit, Resolution 1280*1024;
● Projected capacitive touch screen (10-points) touch;
● Aluminum-magnesium alloy, anodized treatment;
● Multi DVI+VGA signal input, Panel mounting;
● DC 12V power input, Optional with wide-voltage 9~36V;
● USB touch interface, optional RS232 touch interface;
● Optional No-touch feature, with tempered glass.

Especificações
Basic Parameter

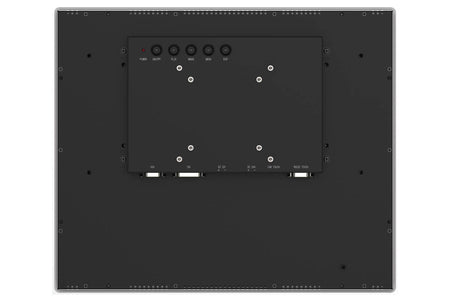

Button OSD Button in back panel
Overall Dimension 386.5 x 323.5 x 51mm (W*H*D)
Hole Dimension 376 x 313 mm (W*H)
Structure Front Panel: Aluminum-magnesium alloy, anodic treatment
Back panel: SGCC

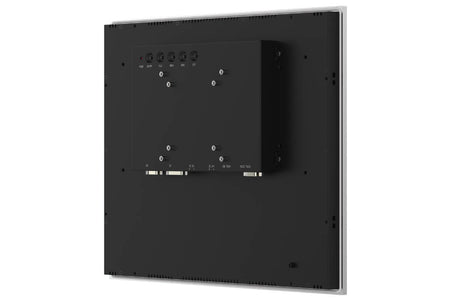

Mounting Panel Mounting, VESA 75/100

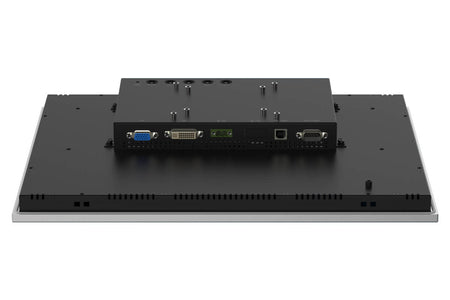

Display port 1*DVI ,1*VGA
Net weight 4 KG
LCD
Size/Type 17.0’’ TFT LCD
Resolution 1280 * 1024 (XGA)
Backlit MTBF WLED, 30 000 hours
Brightness 250 (cd/m2)
Display area 337.92 x 270.34 mm (H x V)
Contrast ratio 1000: 1 (Typ.)
Viewing angle 85/85/80/80 (Typ.)
TOUCH
Type Projective capacitive (P-cap.)
Interface USB (Optional RS232)
Transparency >90±3%
Touch points Multi-points, Max. up to 10 Points
Durability >100 000 000 times
Surface hardness Mohs 6H
Operating force 10g
Special treatment Anti-fingerprint treatment
Power & Environmental
Working temperature 0~+50
Storage temperature -20~+60
Water Proof IP65 rating in front panel
Relative humidity 10~95%@10No condensation
Vibration 50~500Hz,1.5G,0.15mm peak to peak
Shock 10G/peak11ms sec
Power input DC 12V or DC 24V
Power consumption Around 20W
Certification CE/ROHS/FCC
Apresentação

TAICENN TM-PC170 series is an enhanced stability and reliability industrial 17.0-inch panel mounting P-cap. Touch monitor product. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.
The TM-PC170 uses full-sealed box construction, and its front panel complaints NEMA / IP65 waterproof and dust-proof standard, to prevent installation in the control cabinet because of the scene splashing water droplets and water vapor into the host and thus affect equipment operation; high-strength steel box structure, so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.

Downloads
Dimensões
TM-PC170_dimensions
