com IVA
1,740.45€

sem IVA
1,415.00€
Sku: FT24N4200CAPOB
Tipo de Produto: Panel-PC Capacitivo
Fabricante: Faytech

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

FT24N42004G128CAPOB

FT24N4200CAPOB

  • Intel® Pentium® N4200 Quad Core
  • 4 GB de memória RAM, SSD industrial de 128 GB
  • Windows 10 e Linux (32 bits, 64 bits)
  • Vidro frontal de 1.1mm com dureza de 7H
  • Tratamento de superfície anti-reflexo
  • Touchscreen ligado opticamente ao LCD
  • Touchscreen capacitivo de 10 pontos multi-toque
  • Painel frontal com IP65 patenteada com selo de silicone
  • Colunas com Amplificador de áudio
  • Suporta grampos de fixação
  • W-LAN integrada
  • 2 anos de garantia
Specs
Caraterísticas
IP Rating
Protection
IP65 Front/ IP40 Back
PC System
CPU
Intel Pentium N4200 Apollo Lake
RAM
8GB
Memory
128GB
Operating System
Ubuntu
LCD Panel
Display Size
24"
Display Format
16:9
Physical Resolution
1920x1080
Brightness
300 cd/m²
Optical Bonding
Optical Bonding
Coverglass
1,1mm
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
capacative
Power
Power Supply
12V
External connections
HDMI
1
VGA
0
DP
1
USB 2.0
2
USB 3.0
2
Especificações

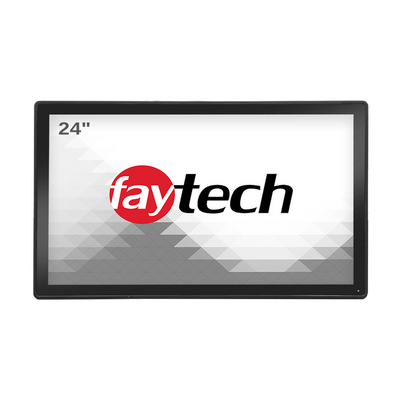

Product name  24" Capacitive Touch PC (N4200)
Article code / EAN number FT24N4200CAPOB / 6920734000333
CPU Intel® Pentium® QuadCore N4200
Graphic GPU Intel® HD Graphics
Audio Realtek ALC3236 Audio CODEC
Memory 4GB DDR3L non-ECC (max. 8GB)
Storage faytech Industrial 128GB SSD
Network 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN
Driver Support Win10; Linux; 32Bit/64Bit
Pre-installed OS Linux Ubuntu
IP65 Front / IP40 Back
Screen diagonal (Inch/cm) 24/60.97
Display active screen size (cm) 53.13×29.88
Aspect ratio 16:9
Physical resolution 1920×1080
External maximum showable resolution - HDMI, DP 1920×1200
Colours displayed 16.7M
Brightness (cd/m²) 500
Contrast 1000:1
Typical reaction time Tr/ Tf (ms) 3.5/1.5
Visual Angle horizontal/vertical (°) 170/160
Backlight / Backlight Lifetime (hours) LED / 20,000
Touch Technology Projected Capacitive 10-point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etched)
Glass Strengthening Chemically Strengthened
Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 5.86
Gross weight (kg) 9.30 (incl. cartonage)
Housing material Rubber front case, Aluminum IPC back case
Housing (mm) L × W × H 579.4 × 347.0 × 57.5
Cut-out for clamp supports (mm) L × H 555.4 × 323.0
Max. wall thickness for clamp supports (mm) 5.0
Amount of clamps required 7
Mounting VESA 100
Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
Power Consumption (W) 36
Stand-By Consumption (W) <1
1x SO-DIMM, max. 8GB, DDR3L 1333/1600/1867 non-ECC Single channel memory
3x RS232/RS485 COM connectors switchable in BIOS
2x LCD Backlight control/LCD panel voltage box
1x 5V/12V SATA power connector
1x 12V DC power connector (2-pin)
1x 4-pin SATA power connector
1x S/PDIF output pin header
1x 8-bit Digital I/O interface
1x Line-out / Mic-in header
1x Front Panel box header
1x Serial ATA 6Gb/s
1x MIPI CSI connector
1x LVDS box header
2x USB 3.0 box header
1x 12V DC-In (screwable)
1x W-LAN antenna connector (RP-SMA male)
2x USB 2.0
2x USB 3.0
1x DP
1x HDMI
1x MIC-In & EAR-Out
1x 10-PIN DIO as RJ50
1x COM – RS 232/422/485 switchable; 5V/12V/RI option (COM1, DSUB9)
1x COM – RS 232; RX/TX (COM2, DSUB9)
2x COM – RS 232 & 485; RX/TX & A+/B- (COM3&4, RJ12)
2x 10/100/1000Mbit RJ45 Ports
1x 2.5" module slot, changeable SSD included
1x mSATA full size (occupied by SSD)
1x M.2 E-Key Slot (occupied by Wifi card)
1x SATA connector
1x External PCIe x1 Straddle connector
Power Supply (see Power section)
W-LAN Antenna (RP-SMA female)
Short Installation Manual
Standard Stand
Opcionais
Stand em Metal VESA 75 / 100
35.00€

Stand em Metal VESA 75 / 100

Grampos de fixação
19.90€

Grampos de fixação

Modulo de ignição
79.50€

Modulo de ignição
