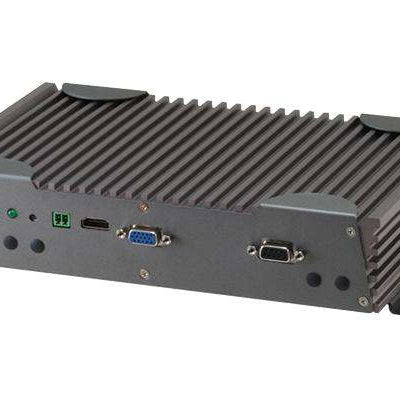

Mini-PC BOXER-6313U

  • Intel® Atom™ E3845
  • OVP/UVP/Reverse Protection
  • Fanless Operation
  • Mini PCIe x 3 and SIM x3
  • Onboard CANBUS/ GPS
com IVA
965.55€

sem IVA
785.00€
Sku: BOXER-6313U-A1-1010
Tipo de Produto: PCs In-Vehicle
Fabricante: AAEON

Compact and lightweight, ideal for vehicles with space, weight and power limitations



Features

  • Intel® Atom™ E3845, 1.91 GHz Processor, Optional for J1900, N2807
  • Supports OVP/UVP/Reverse Protection, On/Off Delay and Battery Protection
  • Fanless Operation
  • Mini PCIe x 3 and SIM x3
  • Onboard CANBUS/ GPS
  • Supports DC +12V or DC +24V Vehicle Power and ACC Function





Datasheet_BOXER-6313U





Specifications

SYSTEM
CPU Intel® Atom™ E3845, 1.91 GHz
CHIPSET Intel® System on Chip
SYSTEM MEMORY DDR3L 1066/1333 SODIMM slot x 1, up to 8 GB
DISPLAY INTERFACE HDMI, VGA
STORAGE DEVICE CFast™ slot x 1, 2.5” HDD bay x 2
ETHERNET Intel® I211, 10/100/1000Base-TX x 2
I/O RS-232/422/485 x 2 isolated
RS-232 x 2
USB 3.0 x 1
USB 2.0 x 3
HDMI x 1
VGA x 1
LAN x 2
CAN bus x 1
Mic-in x 1
Line-out x 1
CFast™ slot x 1
Antenna hole x 4
Power on/off LED button x 1
Power input
EXPANSION Full-size Mini-Card x 3 with SIM slot x 3
INDICATOR Power LED on power button HDD active LED
OS SUPPORT Windows® 10, Windows® 8.1, Windows® 7, Linux Fedora





POWER SUPPLY
POWER REQUIREMENT 9-30V with 3-pin terminal block





MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 10.55” x 6.48” x 2.00” (268mm x 164.6mm x 51mm)
GROSS WEIGHT 9.0 lb (4.1 kg)
NET WEIGHT 6.6 lb (3.1 kg)





ENVIRONMENTAL
OPERATING TEMPERATURE 5°F ~ 149°F (-15°C ~ 65°C)(according to IEC60068-2, with 0.5m/s AirFlow)
STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY 95% @ 40°C, non-condensing
ANTI-VIBRATION 3 Grms/ 5~ 500Hz/ operation – CFast™
CERTIFICATION CE/FCC class A, E13, ISO7637



Packing List

  • Phoenix 2-pin Remote Reset Connector x 1
  • GPS Antenna x 1
  • Screw Pack x 1
  • Wallmount Bracket x 2
  • RAM Thermal Kit x 1
  • Product DVD
  • BOXER-6313U



Optional Accessories

9751640300 4G (EU) & GPS Module Kit
9751640301 4G (US) & GPS Module Kit
9741C50W04 WiFi 802.11 b/g/n + BT 3.0 Kit
