com IVA
2,121.75€

sem IVA
1,725.00€
Sku: HBFEF752W-7100-B
Tipo de Produto: PCs In-Vehicle
Fabricante: Jetway

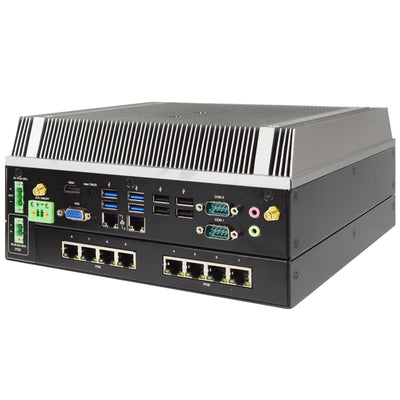

Embedded PC Industrial Intel® Kabylake-U, suporta fonte de alimentação ITPS (9 ~ 36V DC-in), 8 * portas PoE e WLAN


Caraterísticas
  • Processador Intel® Kabylake-U i3-7100U

  • Suporta fonte de alimentação ITPS power supply (9~36V DC-in)

  • 8* portas PoE

Vehicle Fanless System with Wlan

Conectores IO frontais

HBFEF752W_Front_diagram_print

Conectores IO traseiros

HBFEF752W_Rear_diagram_print

Diagrama / Dimensões

HBFEF752W_size
Especificações

MB Model

– JNF752-7100U (Core i3) / (TDP 15W)
– JNF752-7200U / 7300U (Core i5) / (TDP 15W)
– JNF752-7600U (Core i7) / (TDP 15W)
The model will be ordered according to the CPU purchase status, and the detailed situation is recommended to contact the sales.

Part No

– HBFEF752-7100-B (non-WIFI)/HBFEF752W-7100-B (WIFI)
– HBFEF752-7200-B (non-WIFI)/HBFEF752W-7200-B (WIFI)
– HBFEF752-7300-B (non-WIFI)/HBFEF752W-7300-B (WIFI)
– HBFEF752-7600-B (non-WIFI)/HBFEF752W-7600-B (WIFI)
The model will be ordered according to the CPU purchase status, and the detailed situation is recommended to contact the sales.

BIOS

– AMI Flash ROM

CPU/Chipset

– Intel® Kabylake-U Core-i SoC Processor

Memory

– Support 2 * DDR4 2133MHz SO-DIMM slots up to 32GB

Storage

– Support 2 * 2.5” SATA Device tray (Removable hard drive)
– Support 1 * Mini-PCIe slot (full size, only for mSATA)

Network

– 1 * Intel® i219LM & 1 * Intel® i210AT GbE

Expansion

– 2 * Mini PCIe (full-size, for WiFi/3G/4G/ Capture Card module expansion)
– 1 * Mini-PCIe slot (USB only, full size, for 4G LTE + GPS expansion)

Rear Panel I/O

– 4 * USB 2.0, 4 * USB 3.0
– 1 * HDMI (Max. resolution:4096 x 2304@24Hz)
– 1 * VGA (Max. resolution:1920 x 1080@60Hz)
– 2 * RJ45, 8 * 1000M PoE (23W/per port)
– 1 * Line-out, 1 * MIC
– 2 * COM (RS232/RS422/RS485)
– 1 * DC 9~36V_3PIN Industrial connector, 1 * DC 48~52V_2PIN Industrial connector
– 1 * Clear COMS Button
– 1 * AT Mode setting_2PIN Industrial connector
– 2 * Antenna holes (Optional)

Front Panel I/O

– 1 * Power Button + LED, 1 * Reset Button, 1 * HDD LED
– 1 * Power on-off_2PIN Industrial connector
– 2 * COM (RS232)
– 2 * GPIO (1*DI & 1*DO/ 6 BIT) (Support Isolated)
– 1 * LVDS out (Max. resolution:1920 x 1080@60Hz)
– 3 * SIM card holes
– 2 * 2.5” SATA Device tray (Easy to change HDD)
– 1 * GND Hold
– 1 * CAN Bus (DB9 Type_Optional)
– 3 * Antenna holes (Optional)

Power Source

– DC 9~36V INPUT for SYSTEM (Support Boot & Shutdown delay function_ITPS)
– DC 48~52V INPUT for POE LAN

Compliance

– CE, FCC, LVD, RoHS

Temperature

– Operating Temperature: -20 ~ 70° C
– Storage Temperature: -20 ~ 70° C

Dimensions

– 232 (W) x 231.4 (D) x 103 (H) mm

Packing

– Net Weight: 2.7KG
– Gross Weight: 3.7KG

OS Support

– Windows 10, Linux

Warranty

– 2 Years limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Opcionais

Part Number

  Description

  Part Number

  Description



 CAN BUS Module (Please contact sales for details)



 Mini PCIe Capture Card Module (Please contact sales for details)

 HNSCOMWFAWNB159-F

 Mini PCIe WIFI B/G/N+BT 4.0 Module / AW-NB159H Half MPCIE

 L01AS056-F

AC Adapter_120W_19V_6.32A / FSP120-ABBN5

 HNSCOMWFAC3160-F

 Mini PCIe WIFI AC+BT 4.0 Module / AC3160 Half MPCIE



 POE DC Converter_192W_DC12V in_DC48V_4A out / WG-12S4804



 Mini PCIe 3G/4G Module (Please contact sales for details)
