com IVA
840.09€

sem IVA
683.00€
Sku: AG411
Type de produit: Carrier Board
Vendeur: AVerMedia

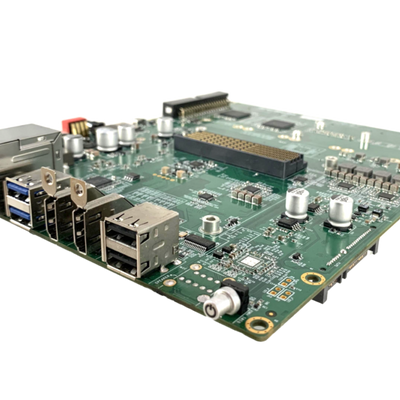

Carrier Board AG411

Embedded Board NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial Module

  • Fully support NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial
  • 4x Mini-PCIe Gen2 x1 or 2x M.2 Key M 2280 (PCIe Gen2x 4)
  • 1x M.2 Key E 2230 for Wi-Fi module
  • 1x M.2 Key M 2280 for NVMe
  • 2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI output
  • 1x USB 2.0 Micro-B for BSP installation only , 1x micro SD
  • 1x CAN bus, 1x RS-485, 1x Mic-in, 1x Speaker-out
  • 40 pins: 1x UART, 2x I2C, 5x GPIO, and 1 x CAN (W/O transceiver)
  • Operating temperature: -10°C ~ 60°C *
  • Wide Voltage 12-54V
Vista Rápida

AVerMedia’s AG411 carrier board fully supports NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial which is designed for AI-centric edge computing for use cases such as robotics and industrial automation.

The AG411 carrier board provides 4x Mini-PCIe and 2x M.2 Key M 2280 slots allowing flexibility to receive various video inputs through AVerMedia’s capture cards.

For added flexibility, additional capture cards can be included to receive HDMI, VGA, SDI, composite video inputs, and even dual 4Kp30 HDMI video inputs for different application scenarios.

For applications that requires IP cameras, the AG411 provides 2x GbE, and 2x USB 3.0 interfaces. General purpose I/O are ready for developers to use such as 2x 4Kp60 HDMI output, 1x USB 2.0 Micro-B for BSP installation only, 1x micro SD, 1x Mic-in, and 1x Speaker-out, 1x CAN bus, 1x RS-485. It also provides 40 pins of GPIO expansion: 1x UART, 2x I2C, and 5x GPIO 1x CAN for Xavier to communicate with external devices.

This performance-driven edge computer is an application-ready platform for for multiple use cases.

Especificações
Model

AG411

Type Carrier Board
NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial module

Networking 2x GbE (RJ-45)
Display Output

2x HDMI type A, maximum resolution: 3840x2160 at 60Hz

Temperature*

Operating Temperature -10°C ~ 60°C

Storage Temperature -40°C ~ 85°C

Relative Humidity 40 °C @ 95%, Non-Condensing

USB

1x USB 2.0 Micro-B for RNDIS

2x USB 3.0 Type-A (USB3.1 x 2)

3x USB 2.0

Storage 32GB eMMC 5.1
RS-485 1x RS-485
CAN bus 1x CAN bus with transceiver

Audio

1x Mic-in

1x Speaker-out

Expansion Header

40 pins: 1x UART, 2x I2C,

1x CAN (W/O transceiver), 5x GPIO

User Expansion

1x M.2 Key E 2230 for Wi-Fi module

(PCIe Gen4x 1)



1x M.2 Key M 2280 for NVMe

(PCIe Gen4x 4)



2x M.2 Key M 2280 (PCIe Gen2x 2) or

3x mPCIe Gen2 x1



1x SATA

DIP Switch Expansion

1. Auto power on enable/Disable (External)

2. FAN PWM on enable/Disable (External)

3. RS485 Terminal ON/OFF (External)

4. CAN Bus Terminal ON/OFF (External)

Input Power

12-54V

Buttons

Power and Recovery (Power button with green LED)

RTC Battery Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info

W:220mm x L:170mm x H:53mm

(8.66” x 6.69” x 2.09”)

Weight: 635g

Certifications CE, FCC, MSIP


* Temperature is still under testing. Please contact your local sales for more information.

** All specifications are subject to change without prior notice.
