Sku: D315
Type de produit:
Carrier Board
Vendeur:
AVerMedia

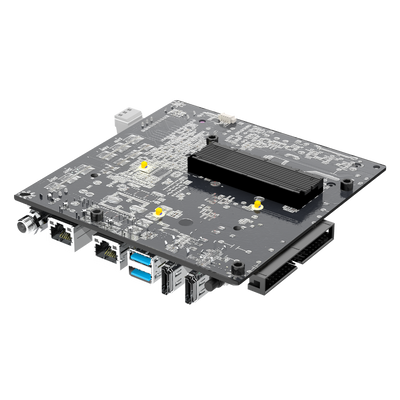

Carrier Board D315
Embedded Carrier Board AVerMedia D315 para módulos NVIDIA® Jetson AGX Orin™
- 120-pin high speed connector for MIPI SerDes cameras, such as GMSL2/FPD-link III/V-by-One® HS, to deploy in AMRs application
- 1x GbE & 1x 10G RJ-45 ethernet for dozens of IP cameras streaming simultaneously in smart security application
- 10GigE Vision camera connector for smart inspection
- 1x PCIe slot for multi-function expansion
- 1x M.2. E key for Wi-Fi 6E, 1x mPCIe for 4G & 5G with adapter card, and 1x M.2. M key for SSD and capture
- Operating temperature: -25°C ~ 70°C
- Dimension: 141.5mm(W) x 133.5mm(L) x29mm(H)
Vista Rápida
Especificações
Downloads
Vista Rápida
AVerMedia Carrier Board D315 built with NVIDIA® Jetson AGX Orin™ module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.
D315 includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315 furnishes a PCIe slot for multi-function expansion and excellent compatibility with Wi-Fi 6 and 5G.
Key Industries
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
Especificações
NVIDIA Jetson SoM |
NVIDIA® Jetson AGX Orin™ module (32GB or 64GB) |
Networking |
•1x GbE RJ-45 •1x 10G RJ-45 |
Display Output |
1x HDMI 2.0 (3840x2160 at 60Hz) |
Temperature |
Operating temperature -25°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
MIPI & SerDes Camera (120-pin) (optional) |
GMSL2/FPD-link III/V-by-One® HS |
USB |
•1x USB 2.0 Micro-B for recovery •2x USB 2.0 Type-A •2x USB 3.2 Type-A |
Audio |
Intel HD Audio analog connector |
Storage |
1x micro-SD card slot |
Expansion Header |
•40-pin (UART, SPI, CAN, I2C, I2S, GPIOs ) •1x M.2 E key (for Wi-Fi 6E) •1x M.2 M key (for SSD or AVerMedia capture card: CN311-H, CN312SW, CN312M) •1x mPCIe (for 4G LTE module or 5G module via adapter card) •1x PCIe x16 •1x CAN bus with transceiver •120-pin (for MIPI SerDes) |
Input Power |
DC in jack on board & ATX 4-pin (54V/2.78A, 9V~54V is recommended) |
Power Cord |
US/JP/EU/UK/TW/AU/CN |
Thermal Solution |
Fan (optional) |
Buttons |
Power and Recovery |
RTC Battery |
Support RTC Battery and Battery Life Monitoring by MCU |
Dimensions |
141.5mm (W) x 133.5mm (L) x 29mm (H)
|
Certifications |
CE, FCC, KC |
Expandability
| Model | Host Interface | Video Interface | Max Input Resolution |
| CN312M | M.2 M key 2280 | 1x SDI; 1x HDMI | 2Kp60 in (SDI) |
| 1920 x 1200p60 in (HDMI) | |||
| 1080p out | |||
| CN312SW | M.2 M key 2280 | 2x SDI | 2Kp60 in - 1080p out |
| CN311-H | M.2 M key 2280 | 1x HDMI | 4096 x 2160p30 |
* All specifications are subject to change without prior notice.
