Sku: D131
Type de produit: Carrier Board
Vendeur: AVerMedia

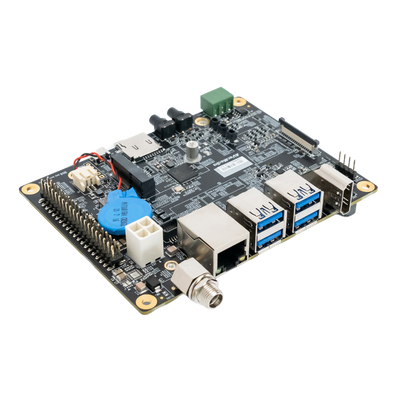

D131

Standard Carrier Board D131 for NVIDIA® Jetson Orin™ NX/ Jetson Xavier™ NX/Jetson Nano™ Module

  • 2 x 2 Lane MIPI CSI-2 Camera input/ 1 x 4 Lane MIPI CSI-2 Camera Input
  • 2 x M.2. for Wi-Fi, SSD and Capture card
  • 1 x GbE RJ-45 (Option PoE), 40-pin expansion header
  • 4 x USB3.2 Gen1 (5G) type A and 1 x 4Kp60 HDMI output
  • 1 x micro-SD card slot
  • Operating temperature: 0°C ~ 70°C (TBD)
  • Dimension: 113mm(W) x 105mm(L)  x 28.53 mm(H)
  • Weight: 95g
Vista Rápida

AVerMedia’s D131 Carrier board equips powerful NVIDIA® Jetson Orin NX/ Jetson Xavier™ NX/ Jetson Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

AVerAI D131 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Especificações

Model

D131

Type

Carrier Board

NVIDIA Jetson SoM

Jetson Orin NX/ Xavier™ NX/ Nano module

Networking

1x GbE RJ-45 (PoE option)

1xM.2. key E 2230 for wifi (Nano doesn’t support)

Display Output

1x HDMI 2.0 (3840 x 2160 at 60Hz)

Temperature

Operating temperature 0°C~70°C (TBD)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

•2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

•1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery
4x USB 3.2 Gen1 (5G) type A

Storage

1x M.2. key M 2280 for SSD
1x micro-SD card slot (Orin NX doesn't support)

Expansion Header

40-pin:  1x UART, 2x  SPI, 2x 12C, 1x I2S, GPIOs

Input Power

DC IN JACK on board & ATX 4pin

12V/5A, 9V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/CN/AU

hermal Solution

Fan (optional)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

Dimensions

113mm (W) x 105mm (L) x 28.53mm (H)

Weight: 95 g

Certifications

CE, FCC,KC




Optional Accessories

Specs

MIPI Camera

For 15 pin MIPI connector:

1. raspberry pi camera v2

2. Manufacturer: APPRO.PHO

  • B-04: IMX179 (8M) MIPI, 1080P (30fps)
  • C-04: IMX290 (2M) MIPI, 1080P (30fps)
  • C-05: IMX290 (2M) +ISP (YUV), 1080P (30fps)

3. Manufacturer: e-con Systems

  • e-CAM131_CUNX - 4K Camera

  • e-CAM50_CUNX - 5.0 MP
  • e-CAM24_CUNX - Color Global shutter Camera

For 36 pin MIPI connector:

1.Manufacturer: APPRO.PHO

  • B-03: IMX334 (4K) MIPI, 4K (30fps)
  • A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)
