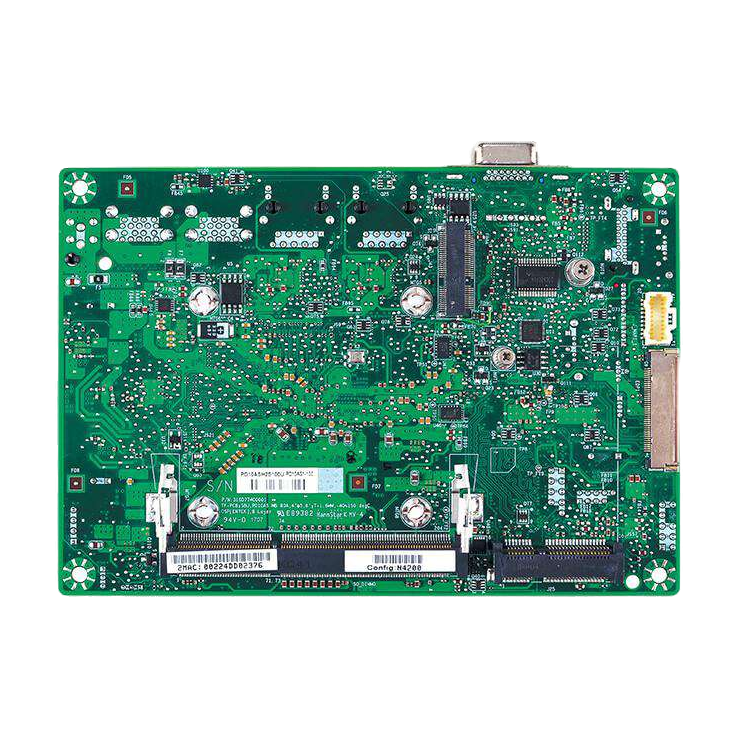

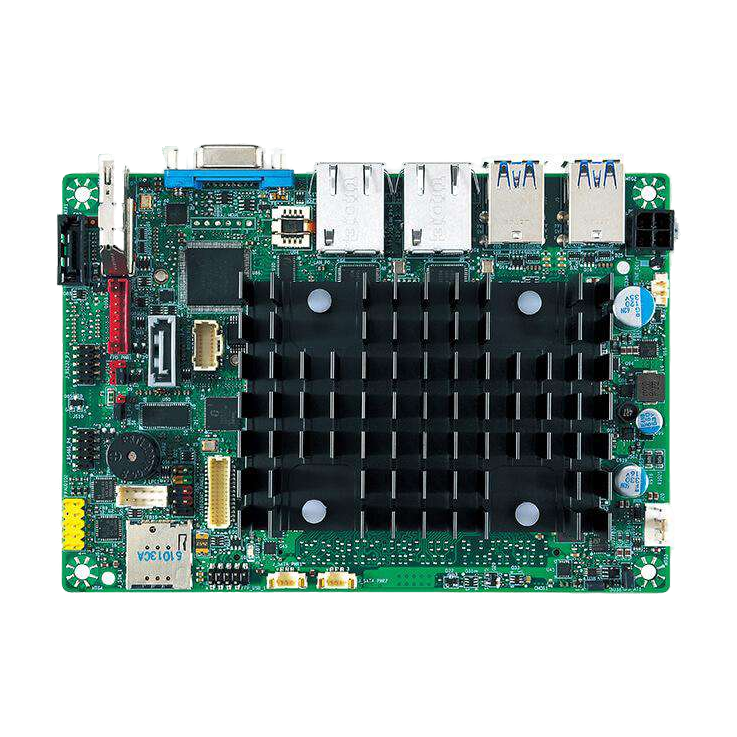

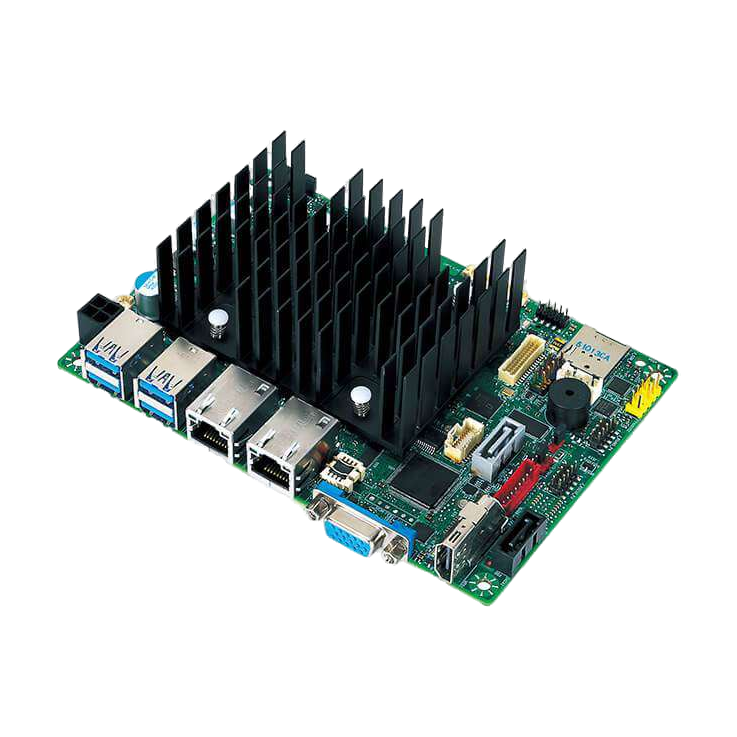

PD10AS I/O
Diagrama
Different from Electrolytic Capacitors, with a service life of longevity, stability, and reliability, our server motherboards are built with Solid Capacitors.
For both commercial and industrial application, this series support wide voltage to save time and deployment costs.
Ordering Information | |||||||||||
| Model | Processor | VGA | HDMI | LVDS / eDP | USB 3.0 / 2.0 | LAN | mPCIe | M.2 (2230) | Operting Temp. | Power | HS Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PD10AS-E3930-WT | E3930 | 1 | 1 | 1 / 1 | 4 / 2 | 2 | 1 | 1 | -40 ~ 85°C | ATX 4-pin DC-in 8~24V | MB + Heatsink |
| PD10AS-E3930-NT | E3930 | 1 | 1 | 1 / 1 | 4 / 2 | 2 | 1 | 1 | 0 ~ 70°C | ATX 4-pin DC-in 8~24V | MB + Heatsink |
| PD10AS-N3350-NT | N3350 | 1 | 1 | 1 / 1 | 4 / 2 | 2 | 1 | 1 | 0 ~ 70°C | ATX 4-pin DC-in 8~24V | MB + Heatsink |
| PD10AS-N4200-NT | N4200 | 1 | 1 | 1 / 1 | 4 / 2 | 2 | 1 | 1 | 0 ~ 70°C | ATX 4-pin DC-in 8~24V | MB + Heatsink |
| PD10AS (PD10AS) Specifications | |||
|---|---|---|---|
| MECHANICAL | FORM FACTOR | 3.5" SBC: 4” x 5.8” (102 mm x 147 mm) | |
| SYSTEM | PROCESSOR | Intel® Apollo Lake-M N3350 / N4200 Processor / Intel® Apollo Lake-I E3930 Processor / option: E3940 / E3950 | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR3L 1866 MHz / 1 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | ||
| GRAPHICS | Intel® HD Graphics | ||
| ETHERNET | 2 x Intel® I210-IT Giga LAN | ||
| AUDIO | Realtek® ALC662 | ||
| I/O CHIPSET | Nuvoton NCT6116D | ||
| TPM | Nuvoton NPCT650ABCYX TPM2.0 (Optional) | ||
| EXPANSION SLOT | Storage/LTE/Wireless: mPCIe Full size (USB / PCIe / SATA), w/ SIM Card Holder / Wireless: M.2 2230 E key (PCIe, USB) | ||
| BIOS | AMI BIOS | ||
| H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| SMART FAN CONTROL | CPU Fan | ||
| GRAPHICS | VGA | Up to 1920 x 1200 @60 Hz | |
| HDMI | Up to 4K (3840 x 2160) @30 Hz | ||
| LVDS | Up to 1920 x 1200 @60 Hz | ||
| eDP (Option) | Up to 4K (3840 x 2160) @60 Hz | ||

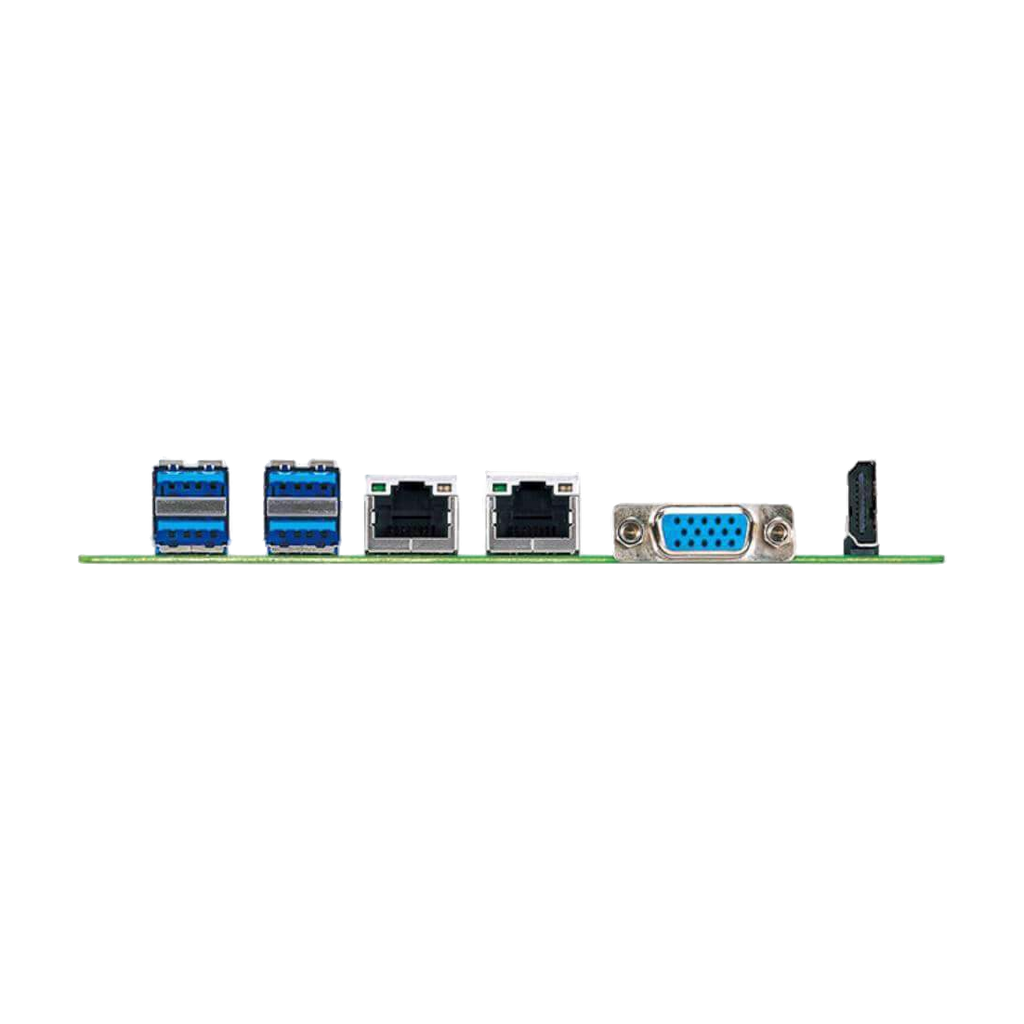

| REAR I/O | USB | 4 x USB 3.0 | |
| DISPLAY I/O | 1 x HDMI 1.4 / 1 x VGA | ||
| LAN I/O | 2 x RJ-45 | ||
| INTERNAL CONNECTORS | STORAGE | 2 x SATAIII(1 x SATA is multiplexed with 1 x mSATA port) | |
| USB | 2 x USB 2.0 | ||
| DISPLAY I/O | 1 x Backlight Connector / 1 x LVDS / 1 x eDP | ||
| AUDIO I/O | 1 x Audio Header (Front Panel Mic-in & Line-out) | ||
| SERIAL PORT | 4 x RS232 (One supports RS232 / 422 / 485) | ||
| GPIO | 1 x MiAPI Header (Programmable. Support 10-bit GPIO) | ||
| FAN | 1 x 4-pin CPU Fan Header / - | ||
| POWER | 1 x AT / ATX Mode Select Jumper / 1 x 8~24V ATX Power Connector | ||
| OTHERS | 1 x CMOS Jumper | ||
| POWER REQUIREMENT | POWER INPUT | 8~24V Wide Range DC Input w/ 4-pin ATX connector (Pitch: 4.2mm) | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | Normal Temperature: 0 ~ 70°C (32 ~ 158°F) Wide Temperature (Optional*) : -40 ~ 85°C (-40 ~ 185°F) | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| CERTIFICATION | CE / FCC Class B | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 1 x Quick Installation Guide | |
