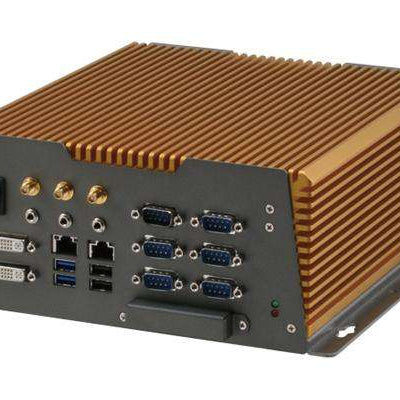

Embedded Box PC AEC-6950

com IVA
0.00€

sem IVA
0.00€
Sku: AEC-6950
Tipo de Produto: EOL
Fabricante: AAEON

eolDue to the growing popularity from the IPC market, the newest Boxer® series AEC-6950 has been introduced by AAEON. Being a control center, the AEC-6950 is suitable for Machine Control, Data Processing, Fleet Management, Data Management. AEC-6950 equips a high efficiency heat conduction mechanism.

The AEC-6950 is compact in size but has attractive and flexible extension capabilities such as 4 USB 2.0 ports and 2 USB 3.0 ports, VGA, Audio, 8 COM ports, and 2 PCI or PCI-E〔x1〕.



Applications:
  • Machine Control
  • Data Processing
  • Fleet Management
  • Data Management



Features:

  • Intel® Core™ i7-3517UE 1.7GHz Processor
  • QM77 Chipset
  • COM Module Integrated
  • Isolation DI x 4 & DO x 4 (3KV)
  • Isolation RS-232/422/485 x 2 (3KV)
  • PCI x 2 or PCI-E ﹝x1﹞/ PCI-E ﹝x16﹞
  • SIM Slot x 1
  • PCIe Mini-Card Slot x 2
  • Fanless Operation (-20°C ~ 55°C) with Airflow





 Datasheet_AAEON_AEC-6950





Specifications:

SYSTEM
CPU Intel® Core™ i7 3517UE 1.7 GHz
CHIPSET Intel® QM77
SYSTEM MEMORY DDR3 1333/1600 MHz SODIMM slot x 2, up to 16 GB
DISPLAY INTERFACE DVI-I, DVI-D
STORAGE DEVICE CFast™, HDD/SSD
ETHERNET Intel® 82583V, 10/100/1000Base-TX x 1
Intel® 82579LM, 10/100/1000Base-TX x 1
I/O RS-232/422/485 x 2 isolation
RS-232/422/485 x 2
RS-232 x 4
USB 3.0 x 2
USB 2.0 x 4
DVI-I x1
DVI-D x 1
LAN x 2
Digital input x 4 isolated
Digital output x 4 isolated
CAN bus x 2 isolation (optional)
Line-out x 1
CFast™ slot x 1
Antenna hole x 3
Power switc
EXPANSION Full-size Mini-Card x 2
PCIe [x1] x 1 & PCIe [x 16] x 1 (SKU A1)
PCI x 2 (SKU A2)
INDICATOR Power LED
HDD active LED
OS SUPPORT Windows® 7, Windows® XP, Windows® XP Embedded, Linux Fedora





POWER SUPPLY
POWER REQUIREMENT 9 - 30V with 3-pin terminal block



MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 8.4" x 3.9" x 9.5" (214mm x 100mm x 241mm)
GROSS WEIGHT 11 lb (5 kg)
NET WEIGHT —





ENVIRONMENTAL
OPERATING TEMPERATURE -20°C ~ 55°C with wide temperature CFast™ card
(according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
*Power consumption of add-on PCI/PCI-E card must be under 30W.
STORAGE TEMPERATURE -20°C ~ 70°C
STORAGE HUMIDITY 95% @ 40°C, non-condensing
ANTI-VIBRATION 3 Grms/ 5 ~ 500Hz/ operation – CFast™/SSD
1 Grms/ 5~ 500Hz/ operation – HDD
CERTIFICATION CE/FCC class A, UL



Packing List

  • Phoenix Power Connector x 1
  • Wallmount Bracket x 2
  • Product DVD
  • AEC-6950



Optional Accessories

‧ 1255901202 Power Adapter (120W), Output: DC 19V
‧ 1702031802 Power Cord (US type)
‧ 1702031803 Power Cord (European Type)
‧ 170203180E Power Cord (Japanese Type)
‧ PER-T248-A10 CAN Bus Kit
